MLC310 S Type Load Cell
Range: 50g,100g 250g,500g,1kg, 5kg,10kg,15,20,50,100,200kg
Dimension: 19.1*16*5mm, 40*16*14mm
Material: Stainless Steel, Alloy Steel
Dimension: 19.1*16*5mm, 40*16*14mm
Material: Stainless Steel, Alloy Steel

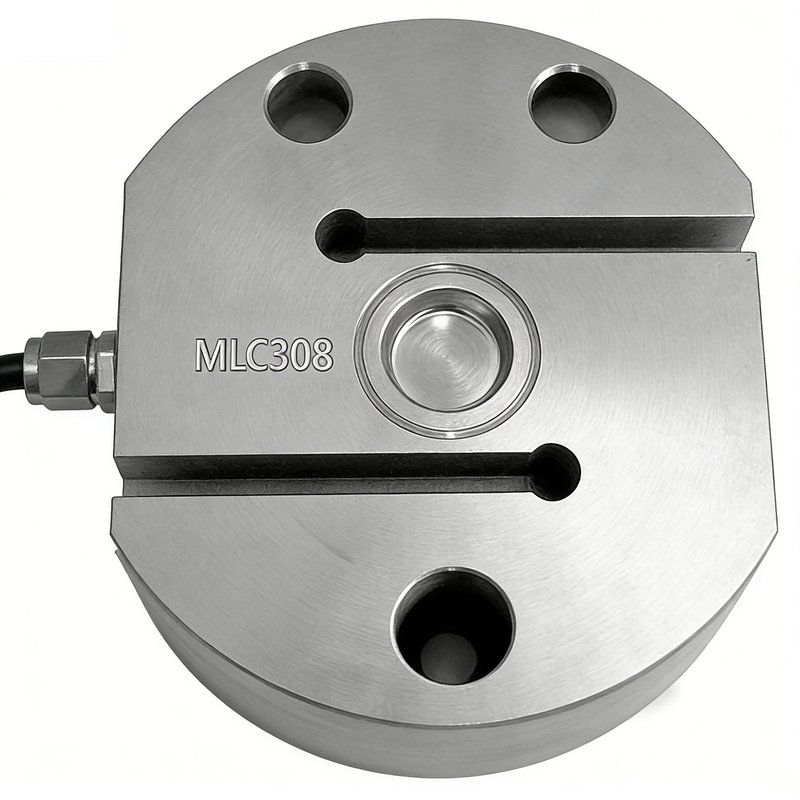

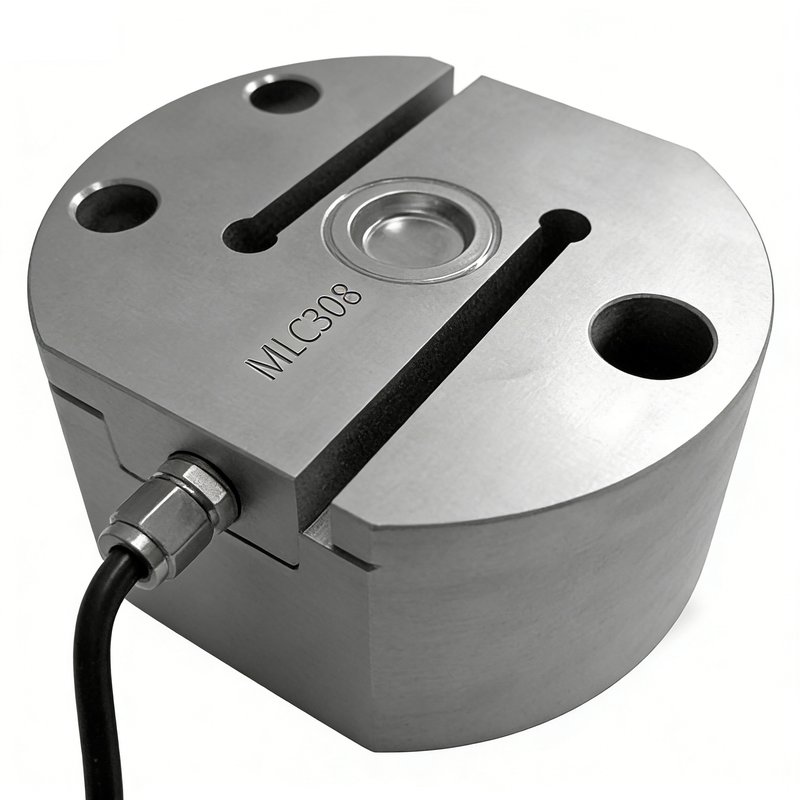

MLC308 S Type Load Cell
Product Introduction
Model: MLC308
Category: S Type Load Cell
Rated Load: 12, 20
Accuracy: 0.03%FS
Operating Temperature: -30~+70ºC
Dimension: 150*130mm,178*150mm
Safe Overload: 150%; : 200%
Material: Alloy Steel, Stainless Steel
Category: S Type Load Cell
Rated Load: 12, 20
Accuracy: 0.03%FS
Operating Temperature: -30~+70ºC
Dimension: 150*130mm,178*150mm
Safe Overload: 150%; : 200%
Material: Alloy Steel, Stainless Steel
Download related documents
Contact immediately
Technical Specifications
MLC308 S Type Load Cell by ManYear Technology is a high-quality S Type Load Cell. Range 12, 20, accuracy 0.03%FS, operating temperature -30~+70ºC. Dimension 150*130mm,178*150mm. Material: Alloy Steel, Stainless Steel. Keywords: S Type Load Cell, Tension Compression Force Sensor. ManYear MLC308 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for S Type Load Cell measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
