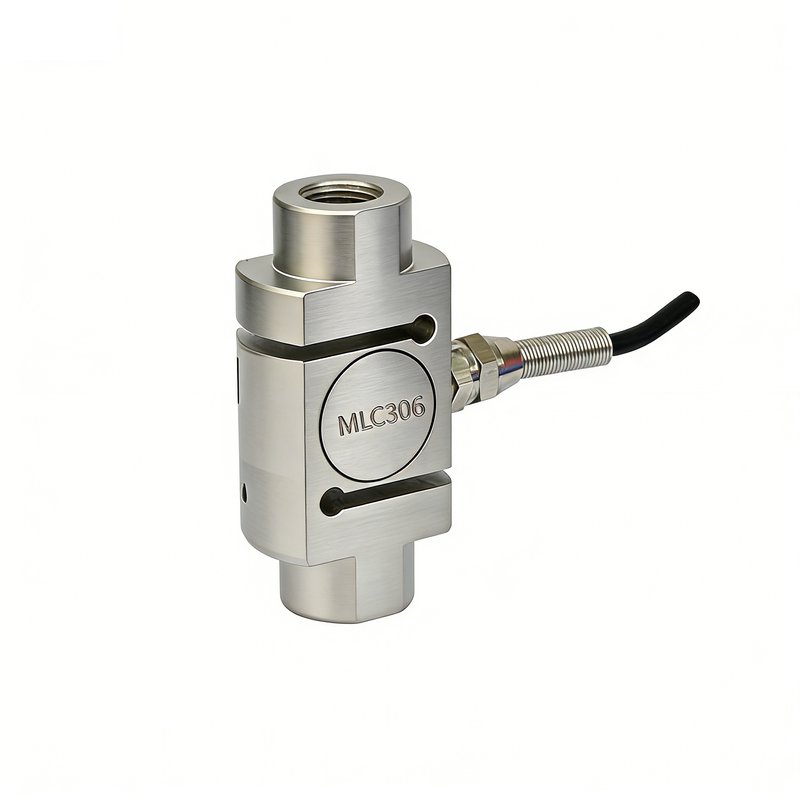

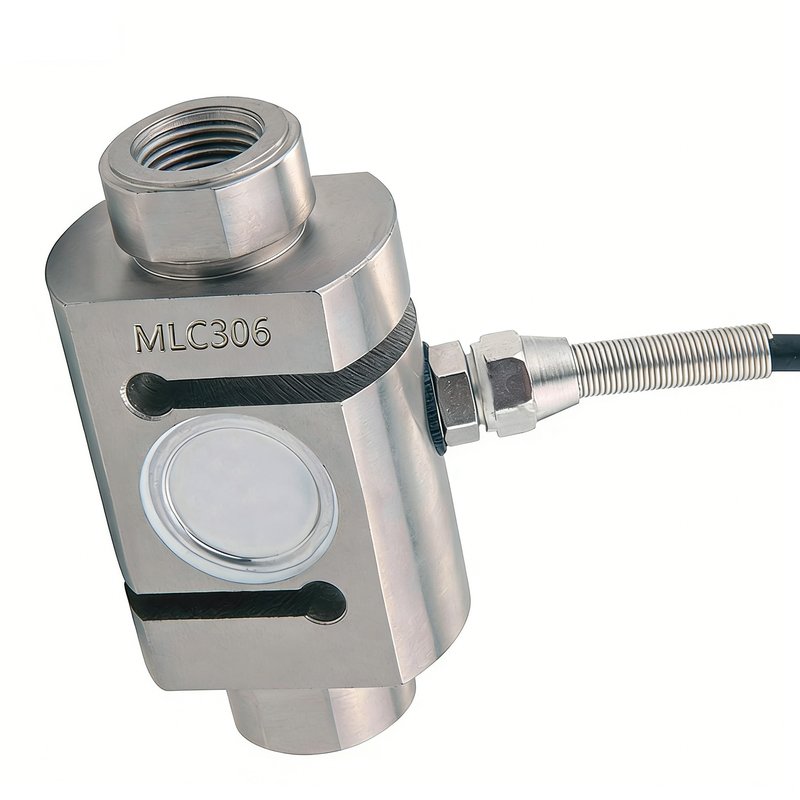

MLC306 S Type Load Cell

Product Introduction

Model: MLC306
Category: S Type Load Cell
Range: 500kg,750kg,1000kg,20ton
Accuracy: 0.03%FS
Operating Temperature: -30~+70ºC

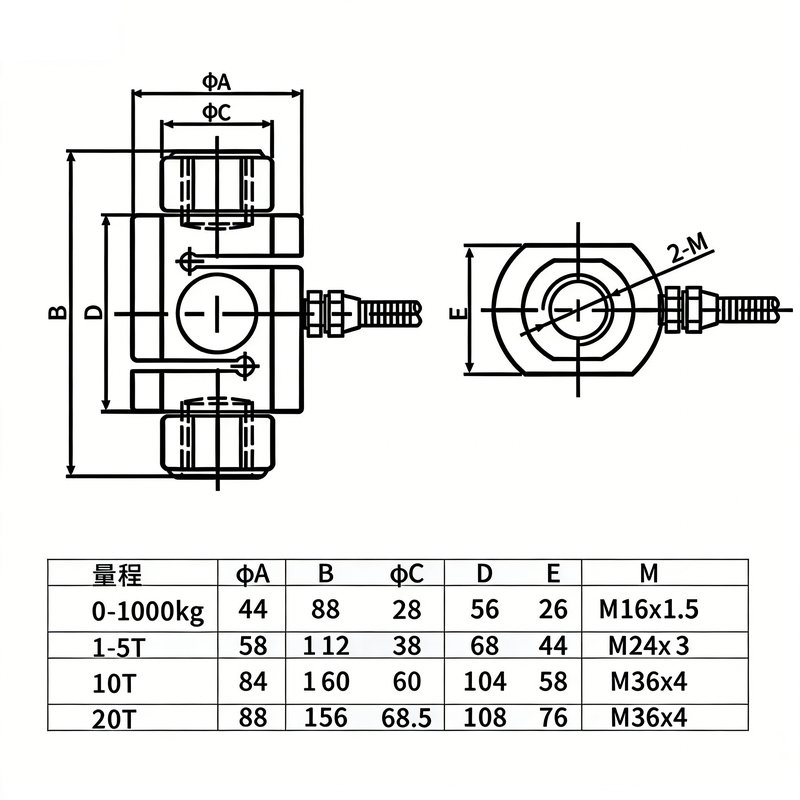

Dimension: Ø88*44*26mm, Ø 78*185mm, Ø 105*225mm
Material: Alloy Steel, Stainless Steel
Application: Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor, Tension Sensor, Tension Compression Load Cell

Download related documents

MLC306-Hook Scale,Force Testing MachineS-typeLoad Cell - Force Sensor30ton.pdf

Contact immediately

Technical Specifications

MLC306 S Type Load Cell by ManYear Technology is a high-quality S Type Load Cell. Range 500kg,750kg,1000kg,20ton, accuracy 0.03%FS, operating temperature -30~+70ºC. Dimension Ø88*44*26mm, Ø 78*185mm, Ø 105*225mm. Material: Alloy Steel, Stainless Steel. Applications: Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor, Tension Sensor, Tension Compression Load Cell. Keywords: S Type Load Cell, Tension Compression Force Sensor. ManYear MLC306 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for S Type Load Cell measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
