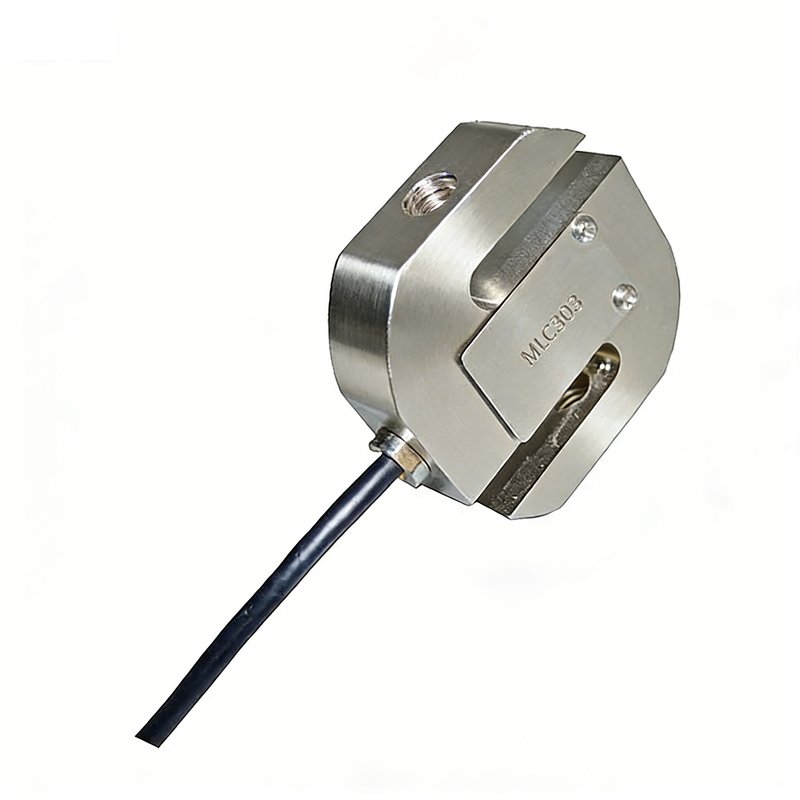

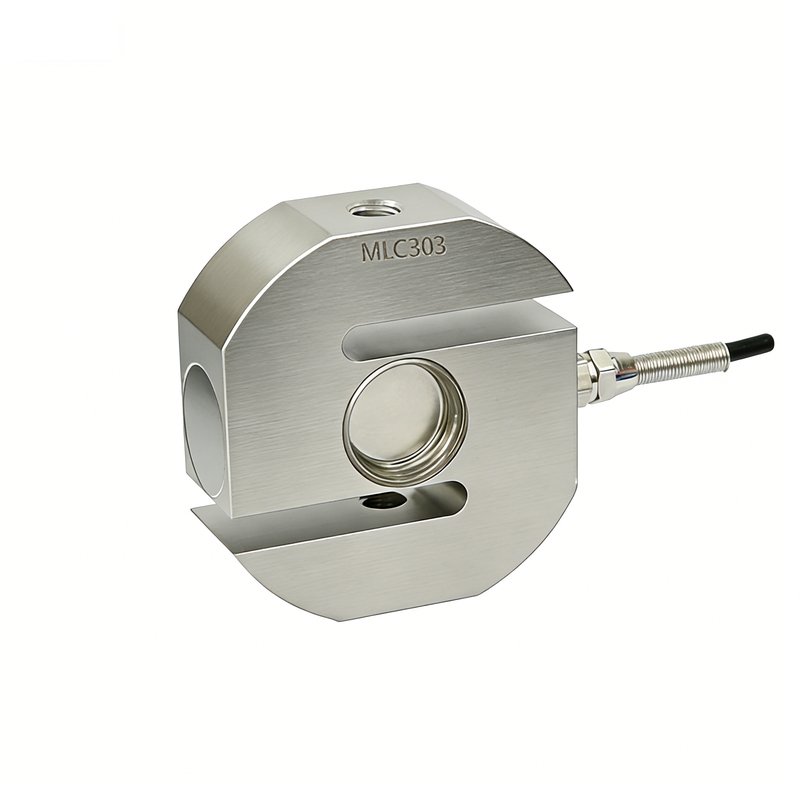

MLC303 S Type Load Cell

Product Introduction

Model: MLC303
Category: S Type Load Cell
Range: 0.5t,1t,2t,3t,4t,5t
Accuracy: 0.03%FS
Operating Temperature: -30~+70ºC

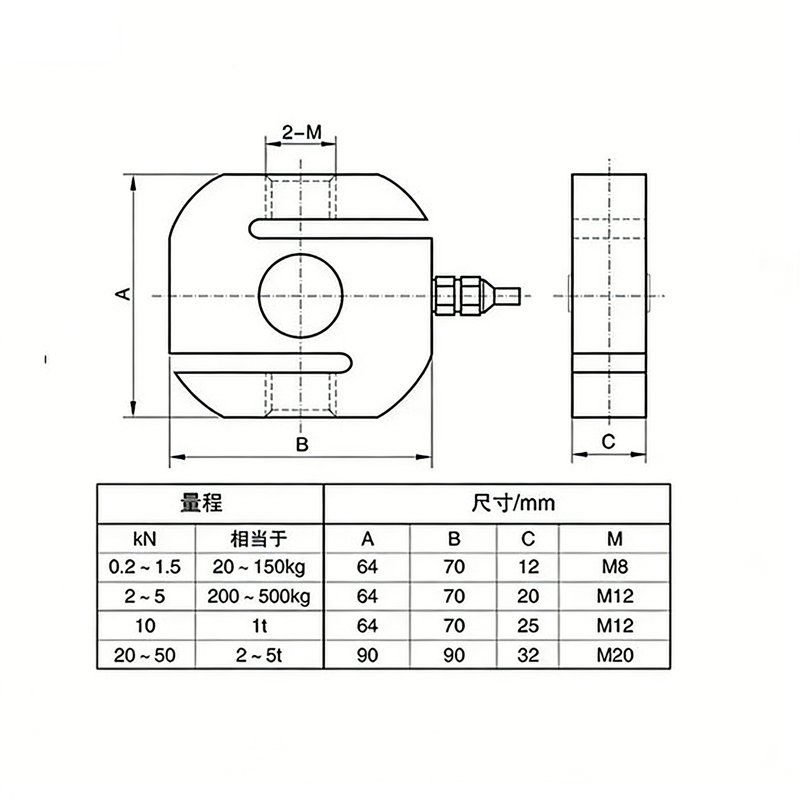

Dimension: 64*70*12mm,64*70*20mm,64*70*25mm,90*0*32mm
Material: Alloy Steel, Stainless Steel
Application: Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor, Tension Sensor, Tension Compression Load Cell

Download related documents

MLC303-Hook Scale,Batching Scale S-typeLoad Cell 5t.pdf

Contact immediately

Technical Specifications

MLC303 S Type Load Cell by ManYear Technology is a high-quality S Type Load Cell. Range 0.5t,1t,2t,3t,4t,5t, accuracy 0.03%FS, operating temperature -30~+70ºC. Dimension 64*70*12mm,64*70*20mm,64*70*25mm,90*0*32mm. Material: Alloy Steel, Stainless Steel. Applications: Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor, Tension Sensor, Tension Compression Load Cell. Keywords: S Type Load Cell, Tension Compression Force Sensor. ManYear MLC303 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for S Type Load Cell measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
