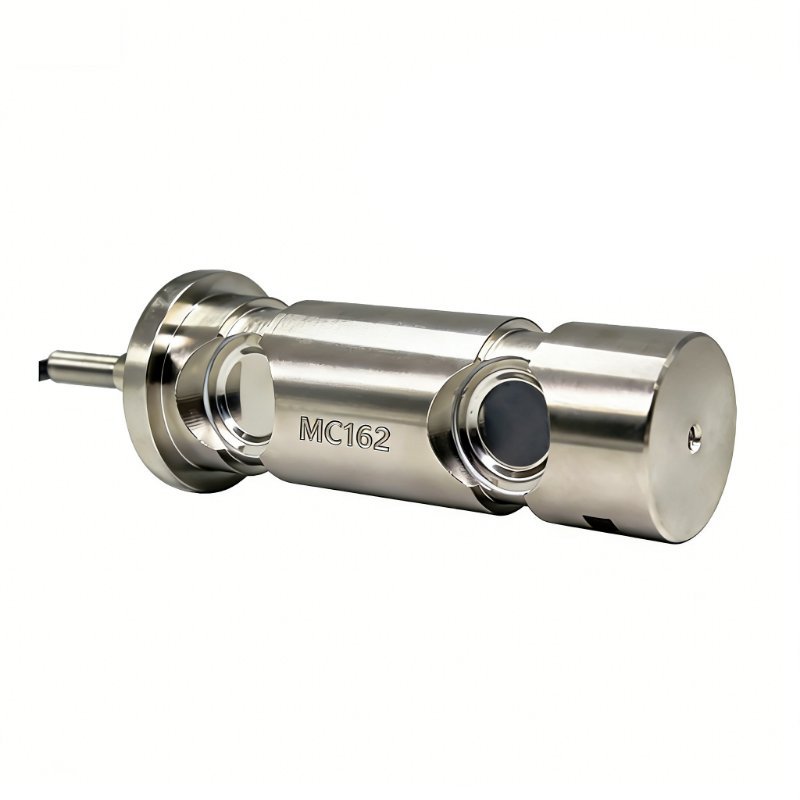

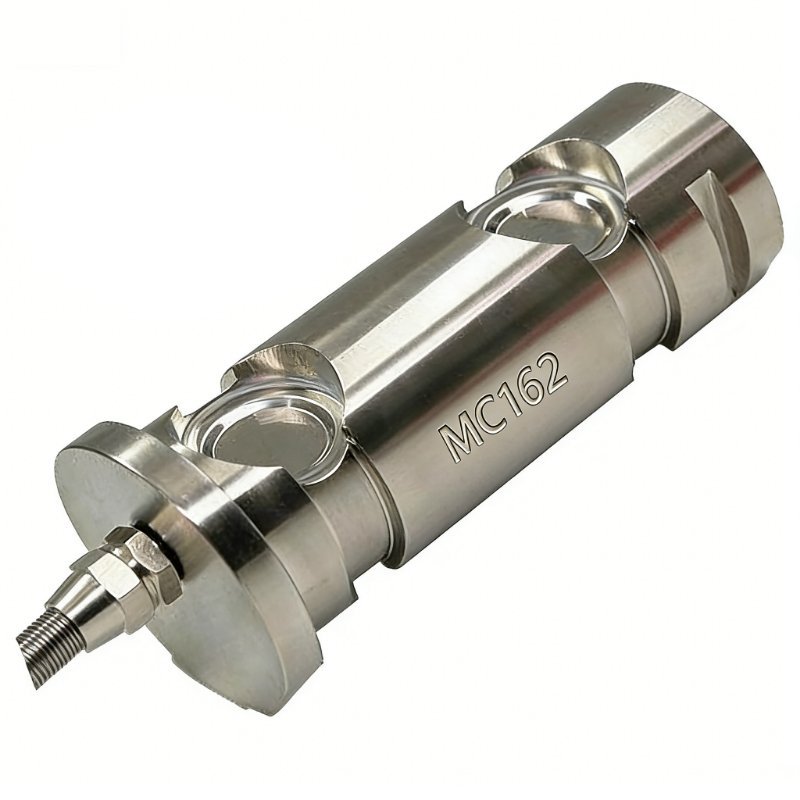

MLC162 Pin Type Load Cell
Range: 2,3,5,10,15,20,30,40,50,100t
Dimension: Φ58x128mm, Φ68x128mm
Material: Alloy Steel, Stainless Steel
Dimension: Φ58x128mm, Φ68x128mm
Material: Alloy Steel, Stainless Steel
MLC162 Pin Type Load Cell
Product Introduction
Model: MLC162
Category: Pin Type Load Cell
Range: 2,3,5,10,15,20,30,40,50,100t
Accuracy: 0.05%FS
Operating Temperature: -20~+55℃
Dimension: Φ58x128mm, Φ68x128mm
Material: Alloy Steel, Stainless Steel
Category: Pin Type Load Cell
Range: 2,3,5,10,15,20,30,40,50,100t
Accuracy: 0.05%FS
Operating Temperature: -20~+55℃

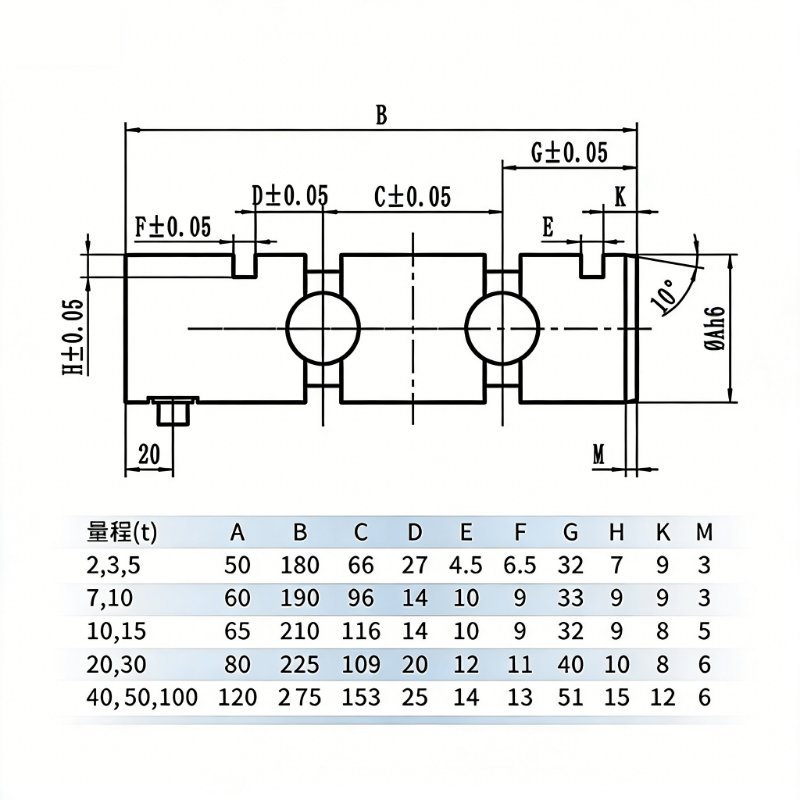

Dimension: Φ58x128mm, Φ68x128mm
Material: Alloy Steel, Stainless Steel
Download related documents
Contact immediately
Technical Specifications
MLC162 Pin Type Load Cell by ManYear Technology is a high-quality Pin Type Load Cell. Range 2,3,5,10,15,20,30,40,50,100t, accuracy 0.05%FS, operating temperature -20~+55℃. Dimension Φ58x128mm, Φ68x128mm. Material: Alloy Steel, Stainless Steel. Keywords: Pin Type Load Cell, Crane Load Cell. ManYear MLC162 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for Pin Type Load Cell measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
