MEP-SY torque controller and controlling instrument

The device is equipped with a torque sensor with pulse output. The input signal range is 10Hz to 25kHz, usually connected to sensors ranging from 5kHz to 15kHz. It has a precision of 0.1 level and a measurement and control speed of 10 times per second. The display range is -19999 to 20000, and the range and decimal point position can be set.
The torque sensor power supply is optional, usually ± 15V, 250mA; ± 12V, 300mA or 24V, 300mA. Panel buttons or external inputs can achieve zero point function. Equipped with 8-segment multi line correction function. It can calculate and compare absolute, peak, valley, maximum, and minimum values. It also has a small signal cutoff function.
The device has 2 alarm output points, which can alarm in various ways based on measured and calculated values. There is also a channel for transmitting output, which can be set as measured or calculated values. In addition, it also has communication and printing functions.

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

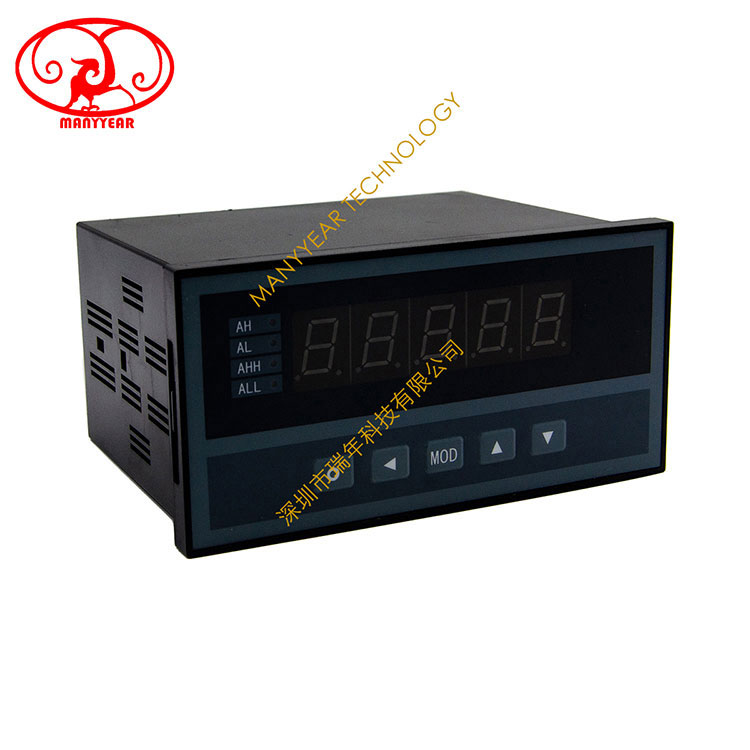

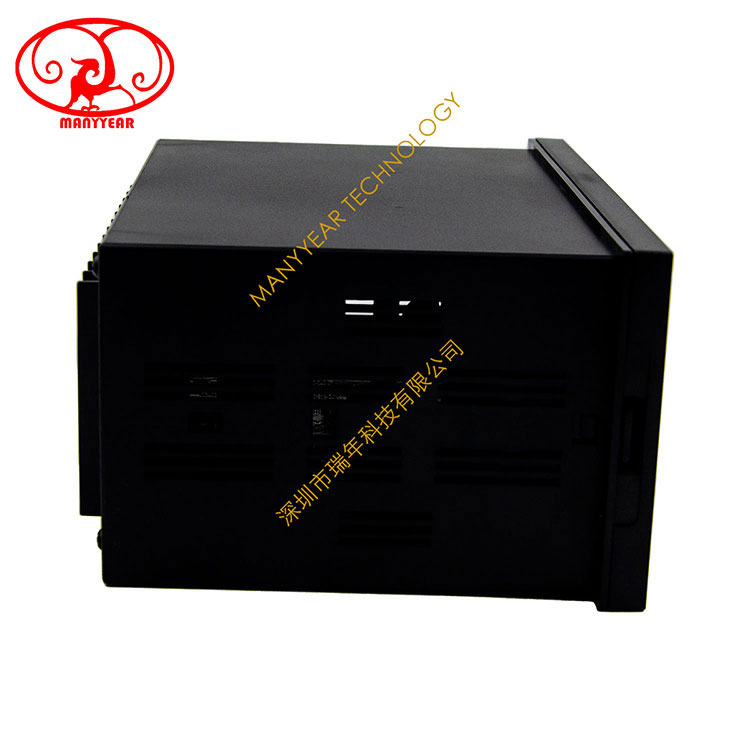

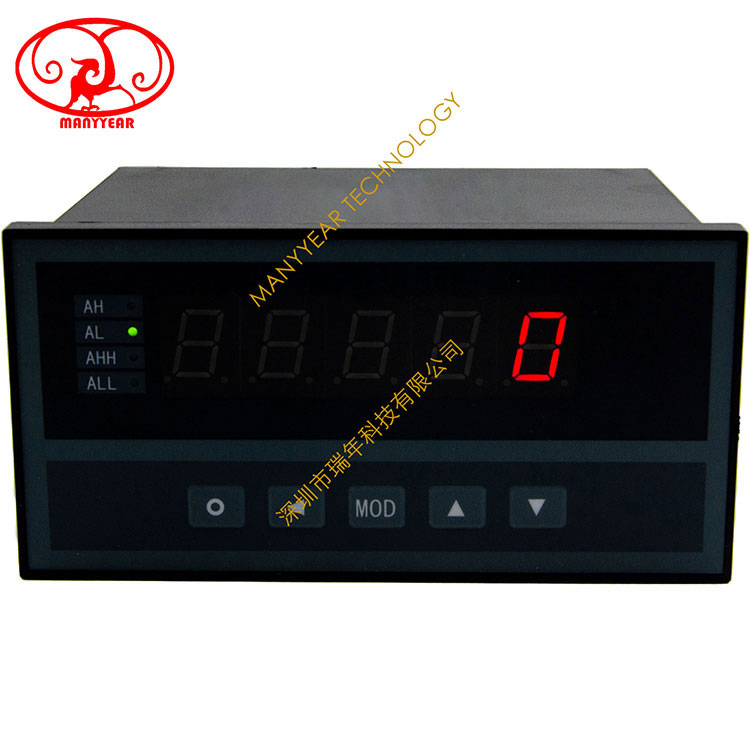

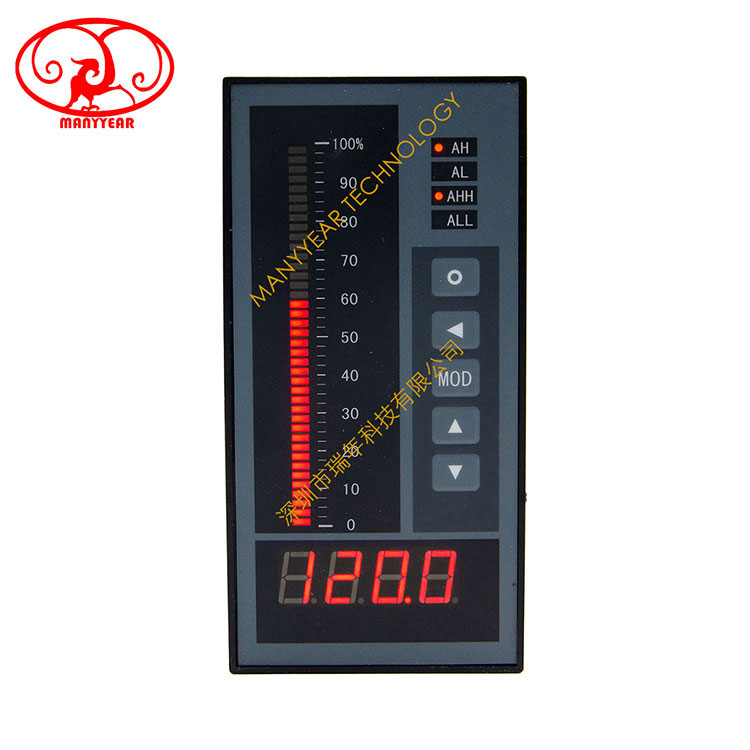

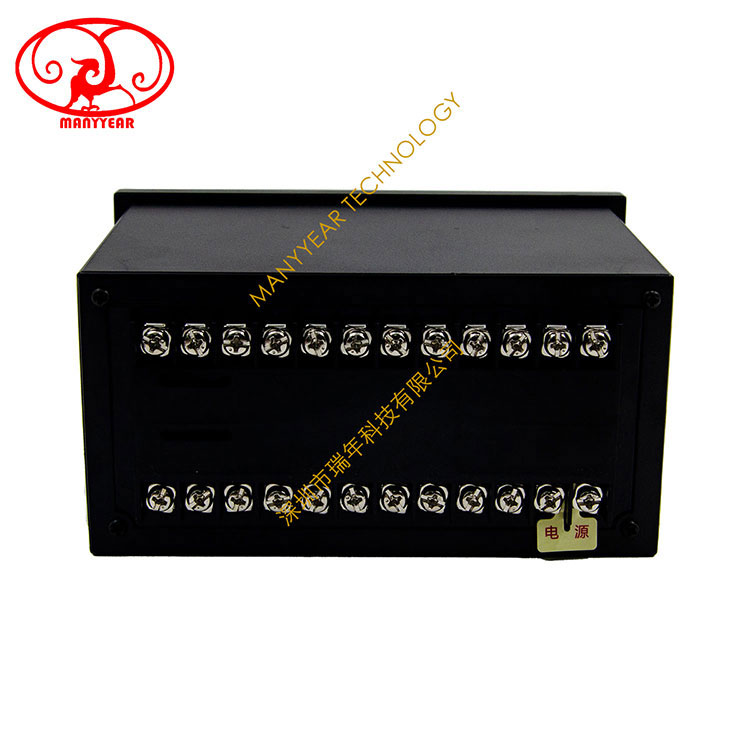

Product Picture Reference

digital instrument

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MEP-SY torque controller and speed controller

Product Description

It is equipped with a torque sensor with pulse output.

The input signal range is 10Hz ~ 25kHz . Generally, it is connected with a sensor of 5kHz ~ 15kHz .

0.1 level precision, measurement and control speed 10 times per second.

Display range -19999 ~ 20000 , range and decimal point position can be set.

Optional torque sensor power supply, generally ± 15V , 250mA ; ± 12V , 300mA or 24V , 300mA .

Panel keys or external input zero function .

8- segment polyline correction function.

Absolute value, peak value, valley value, maximum value, minimum value calculation and comparison function.

Small signal cut function.

2 -point alarm output, which can alarm in various ways for measured values and calculated values.

1 channel transmission output, which can be set as measured value or calculated value.

Communication, printing function.

Basic Specifications

		code description
MEP-SY-		5-digit LED display; 0.1-level measurement accuracy; measurement and control speed 0.1 second (when the signal frequency is > 20Hz)
Dimensions		160×80×125, hole size: 152×76
input signal		5kHz～15kHz single-phase voltage pulse input signal
Contact input (option)	K	1 point external digital input, used for clearing.
Alarm (option)	T1～2	2 relay outputs, 250V AC/3A, resistive load
Transmitter (option) (resolution: 1/3000; current output load≦600Ω, voltage output load≧100KΩ)	A1	Current output (4-20) mA, (0-10) mA, (0-20) mA
	A2	Voltage output (1-5) V, (0-5) V
	A3	Voltage output (0-10) V
	A4	Voltage output (-5V～+5V)
	A5	Voltage output (-10V～+10V)
External power supply (option)	B1	±15VDC 250mA
	B2	±12VDC 300mA
	B3	24VDC 300mA
Communication (option) (communication rate: 2400, 4800, 9600, 19200) (communication address: 0-99)	S1	TC ASCII protocol RS232
	S2	TC ASCII protocol RS485
Printing interface (option) (you can only choose one of the two with the communication interface)	P
Power Specifications	V0	100-240V AC 50/60Hz
