MEP-SHBW PID operator regulator controller

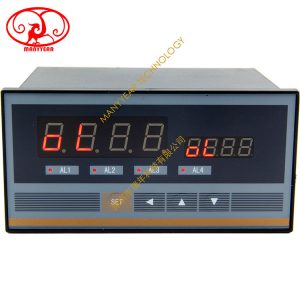

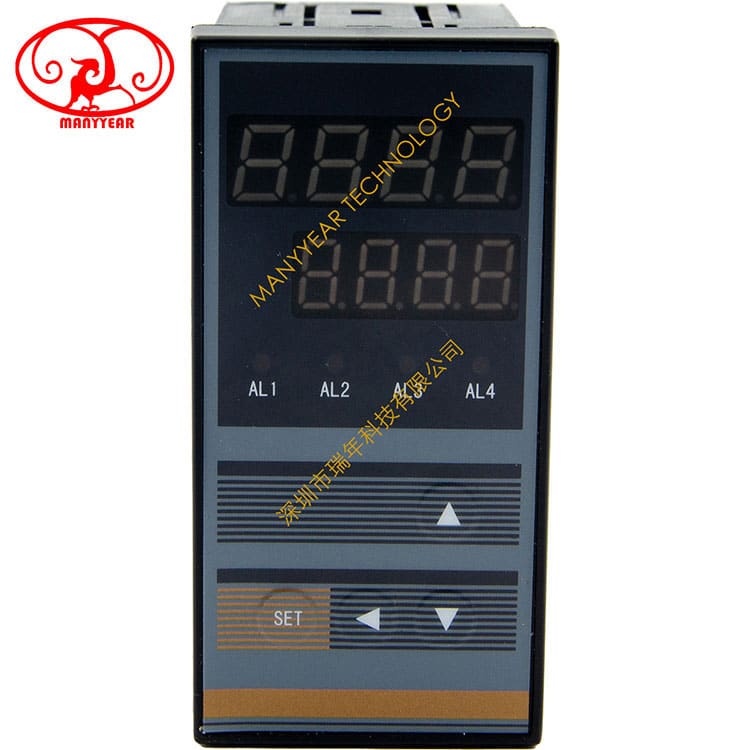

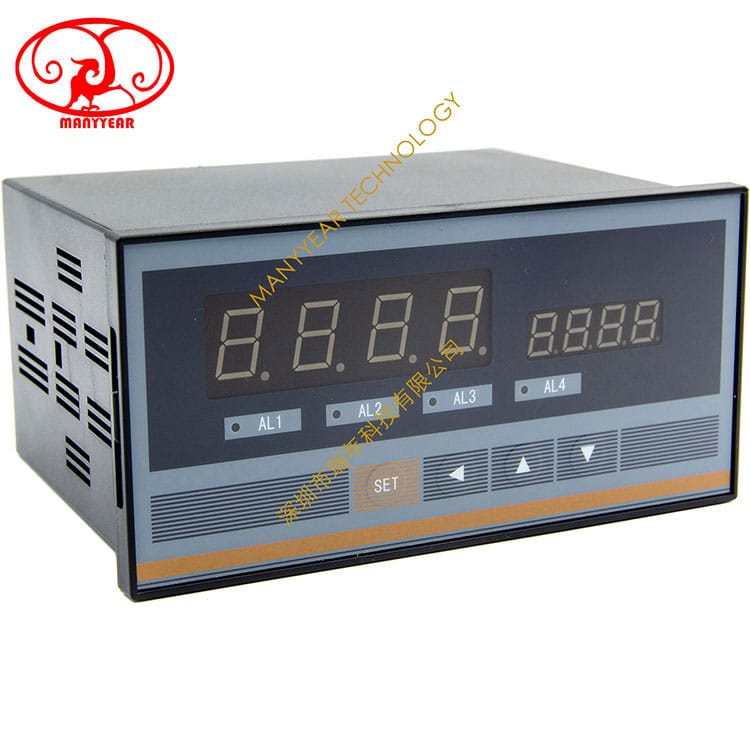

MEP-SHBW PID operator regulator controller, as supporting products for PID regulators or DCS systems, are used for manual adjustment or as backup instruments. The output signal is a current and voltage signal with positive and negative effects.

One channel regulation input signal is used to receive signals transmitted by systems such as PID regulators or DCS. Can be matched with DC current and DC voltage.

The main display window displays the operation output value, while the auxiliary display window can display the adjustment input signal, operation output value, or manual/automatic status through parameter selection.

The signal output can be directly operated through button operation. The operation output has upper and lower limit limiting functions.

Optional 1-2 alarm output function.

Optional 1-point manual/automatic status signal output function.

Optional 1 external signal input for switching between manual/automatic states.

Optional tracking/transmission output function.

Optional communication interface for reading data.

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

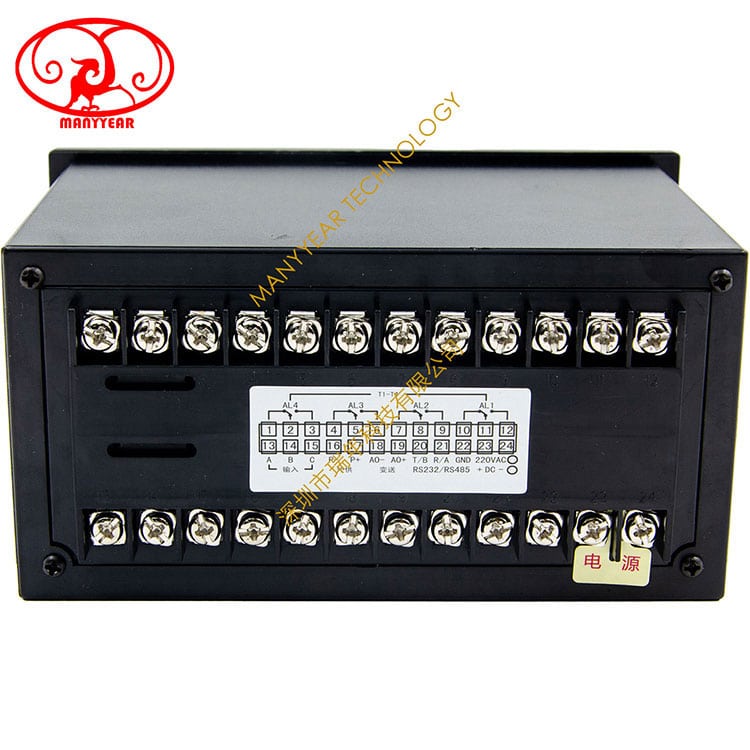

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MEP-SHBW PID operator regulator controller

Product Description

MEP-SHBW PID operator regulator s, as supporting products for PID regulators or DCS systems, are used for manual adjustment or as backup instruments. The output signal is a current and voltage signal with positive and negative effects.

One channel regulation input signal is used to receive signals transmitted by systems such as PID regulators or DCS. Can be matched with DC current and DC voltage.

The signal output can be directly operated through button operation. The operation output has upper and lower limit limiting functions.

Optional 1-2 alarm output function.

Optional 1-point manual/automatic status signal output function.

Optional 1 external signal input for switching between manual/automatic states.

Optional tracking/transmission output function.

Optional communication interface for reading data.

Basic Specifications

content	Code Description										price
	MEP-SHBW-	Dual 4-position LED display; 0.2 level display accuracy; Measurement and control speed 0.1 seconds
Overall dimensions		AH	160 × 80 × 125mm, horizontal opening size: 152 × 76mm
		AS	80 × 160 × 125mm, vertical opening size: 152 × 76mm
		B	96 × 96× 112, Hole size: 92 ×92mm
		CH	96 × 48 × 82mm, horizontal opening size: 92 × 45mm
		CS	48 × 96 × 82mm, vertical opening size: 92 ×45mm
Operation output			Q1	Current output (4-20) mA, (0-10) mA, (0-20) mA						Optoelectronic isolation,
			Q2	Voltage output (0-5) V, (1-5) V						Resolution: 1/10000, current output load ≤ 600 Ω, voltage output load ≥ 100K Ω
			Q3	Voltage output (0-10) V
Alarm (option)				A size	T1~T2	1-2 alarm relay outputs, both normally open and normally closed double contacts
(250V AC/3A, resistive load)				B size	T1~T2	1-2 alarm relay outputs, all single normally open contacts
				C size	T1~T2	1-2 alarm relay outputs, all single normally open contacts
Status signal output (option)						D	1 point manual/automatic status relay output, single normally open contact, 250VAC/3A, resistive load
External signal input (option)							K	1 point external passive contact switch signal for controlling manual/automatic status

Communication (option)
(Photoelectric isolation, response time: less than 500 μ S (measured value)							MS1	RS232 interface; Select TCASCII or Modbus RTU communication protocol through software.
							MS2	RS485 interface; Select TCASCII or Modbus RTU communication protocol through software.
Tracking/transmission output (option)							A1	Current output (4-20) mA, (0-10) mA, (0-20) mA
(Photoelectric isolation, resolution: 1/10000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)							A2	Voltage output (0-5) V, (1-5) V
Note ①							A3	Voltage output (0-10) V
Power specifications								V0	100-240V AC 50/60 Hz
								V1	10~24V AC 50/60 Hz; 10~24V DC

Note ①: External signal input, communication, and tracking/transmission output functions share terminals, so only one of three can be selected.
