MPT762 clamp flat film intelligent differential pressure sensor transmitter

Product model: MPT762
Product category: Differential pressure sensor
Product range: 0-2100… 7000KPA
Temperature: -20 ℃~+85 ℃
Signal output: mv/v, 0-5vdc, 4-20 mA, Hart, RS485
Product application: Gas and liquid differential pressure measurement; HVAC, environmental pollution control, clean engineering, medical equipment
Product keywords: flat film differential pressure sensor, intelligent differential pressure sensor, clamp differential pressure sensor, explosion-proof differential pressure sensor

The selection of load cell products must be fully communicated and detailed solutions must be obtained. This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time. Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Online Sales

Product Introduction Technical Documents

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT762 clamp flat film intelligent differential pressure sensor transmitter Product model: MPT76 2 Product category: Differential pressure sensor Product range: 0-2100... 7000KPA Temperature: -20 ℃~+85 ℃ Signal output: mv/v, 0-5vdc, 4-20 mA, Hart, RS485 Product application: Gas and liquid differential pressure measurement; HVAC, environmental pollution control, clean engineering, medical equipment Product keywords: flat film differential pressure sensor, intelligent differential pressure sensor, clamp differential pressure sensor, explosion-proof differential pressure sensor

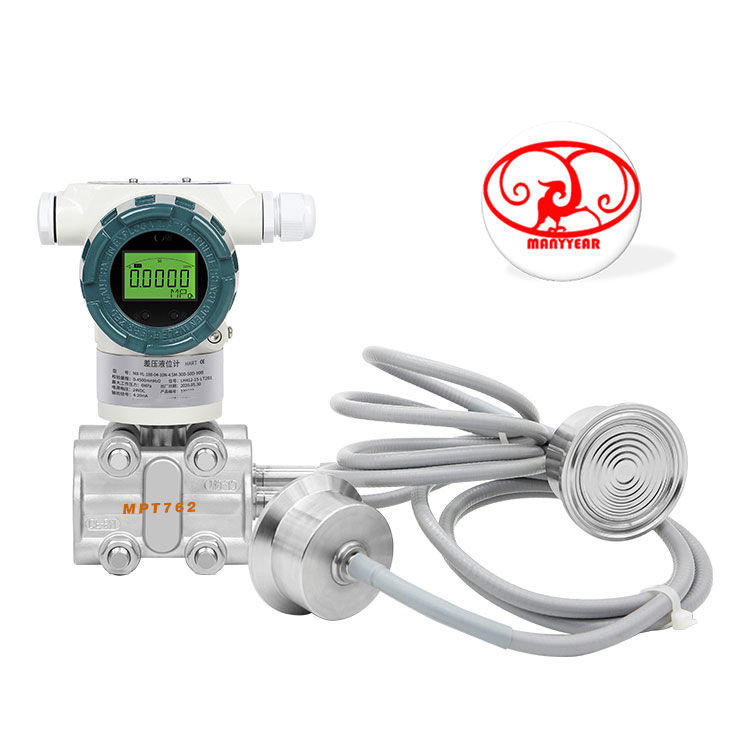

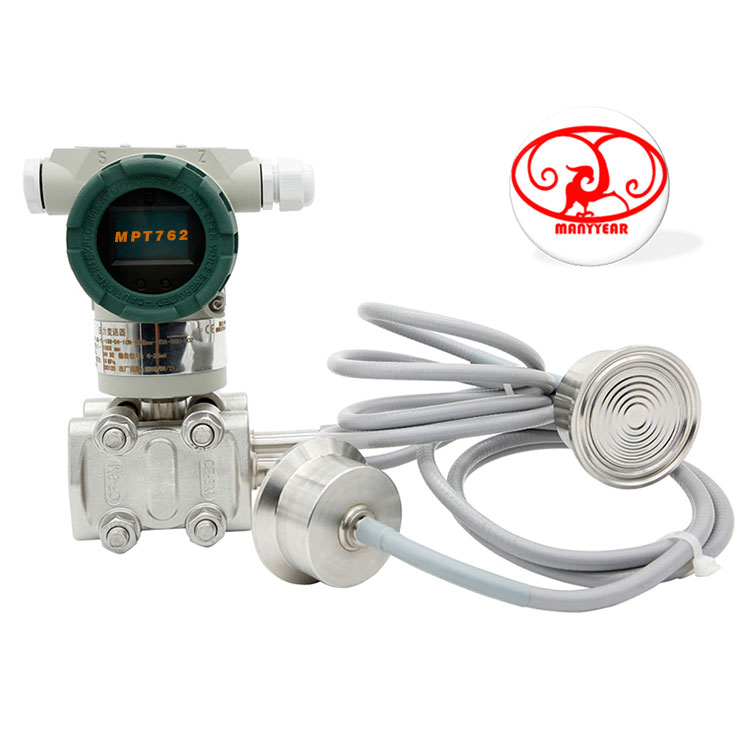

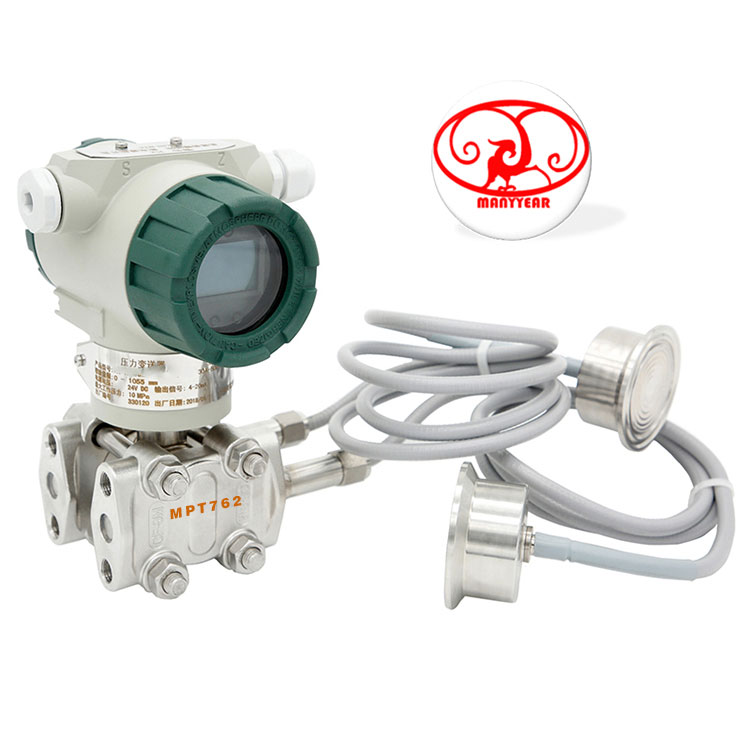

reference picture
Technology parameter:
capability range	0~2 …… 7MPA
pressure type	Differential pressure
signal output(mA/v)	mv/v, 0-5vdc,4-20mA,Hart,Rs485
Precision(%FS)	0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)	≤0.01 ≤0.02 ≤0.03
temperature excursion	≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)	≤0.1;≤0.2
execute voltage (V)	24v (9~36v)
temperature compensate (ºC)	0~+60
environment temperature (ºC)	-20~+85
Overload (%)	200
Static pressure	10~12
load resistance (Ω)	R=(U-12.5)/0.02-RD; U=POWER SUPPLY, RD=Wire resistance
response time(ms)	≤1
measuremedium	compatible with 316L,causticity Gas, liquid
House	1Cr18Ni9Ti
connector thread	Ø7.5,M12×1 or order by customer
explosion proof grade	option-able
water proof grade	IP65
Film	316Lstainless steel

Product Dimension

Force Structure & Assembly Reference

pressure sensor signal output
