MPT751WL IoT wireless digital differential pressure sensor transmitter

MPT751WL Digital Differential Pressure Sensor
Product model: MPT751WL
Product category: Differential pressure sensor
Product range: 0~2100… 7000 KPA
Temperature: -20~+85
Signal output: mv/v, 0-5vdc, 4-20mA, Hart, Rs485
Product application: Gas and liquid differential pressure measurement; HVAC, environmental pollution control, clean engineering, medical instruments and equipment, oven pressurization and furnace air pressure control, natural gas and gas pipeline network monitoring, underground ventilation and power plant air pressure monitoring, and other fields
Product keywords: digital differential pressure sensor, digital differential pressure sensor

The selection of load cell products must be fully communicated and detailed solutions must be obtained. This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time. Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

Product Introduction Technical Documents

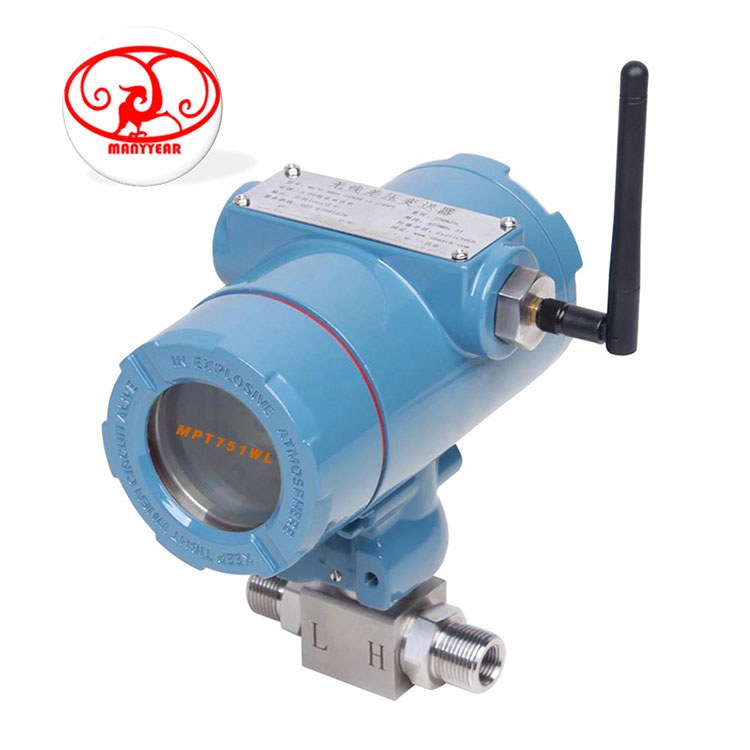

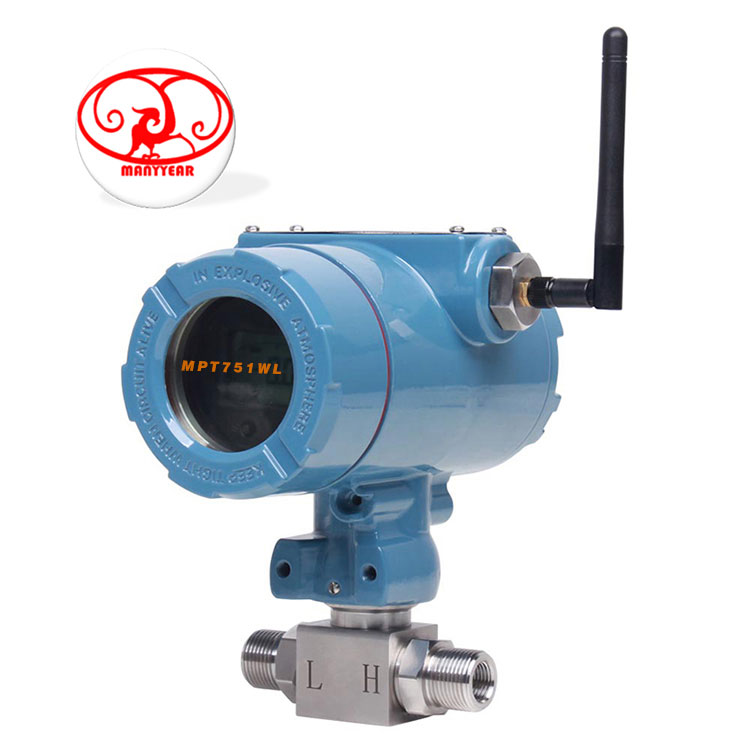

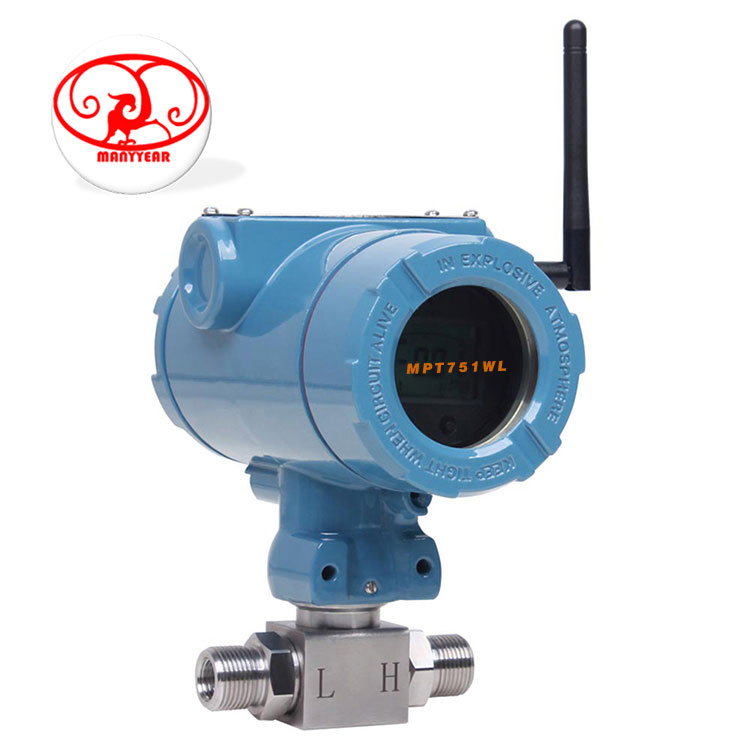

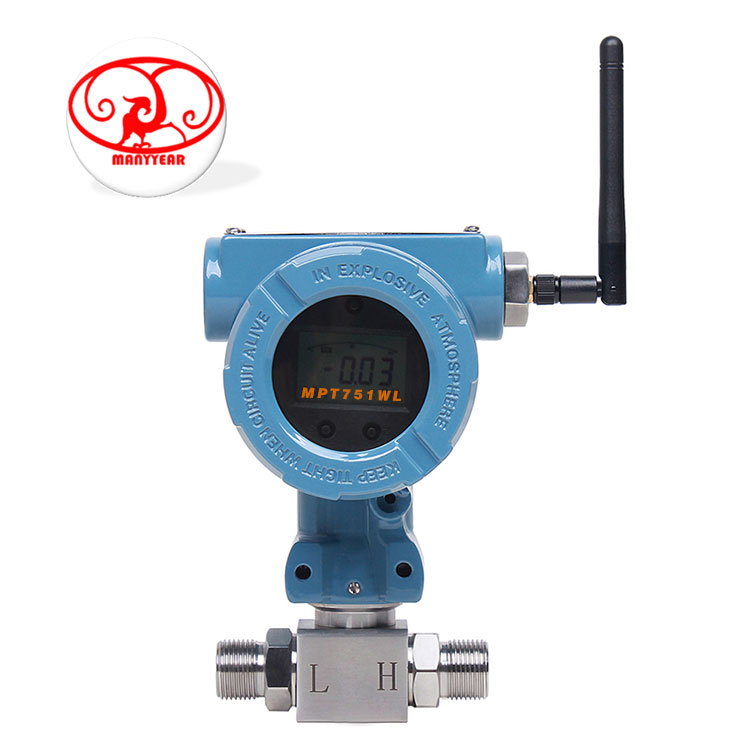

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT751WL IoT wireless digital differential pressure sensor transmitter

MPT751WL Digital Differential Pressure Sensor Product model: MPT751WL Product category: Differential pressure sensor Product range: 0~2100... 7000 KPA Temperature: -20~+85 Signal output: mv/v, 0-5vdc, 4-20mA, Hart, Rs485 Product application: Gas and liquid differential pressure measurement; HVAC, environmental pollution control, clean engineering, medical instruments and equipment, oven pressurization and furnace air pressure control, natural gas and gas pipeline network monitoring, underground ventilation and power plant air pressure monitoring, and other fields Product keywords: digital differential pressure sensor, digital differential pressure sensor
reference picture
Technology parameter:
capability range	0~2 …… 7MPA
pressure type	Differential pressure
signal output(mA/v)	Mv/v, 0-5V;0-10V;0.5-4.5V;4~20mA RS232, RS485, HART, wireless PNP, NPN, RELAY
Full load output(mV)	30~60
Zero point output(mV)	≤20
Precision(%FS)	0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)	≤0.01 ≤0.02 ≤0.03
temperature excursion	≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)	≤0.1;≤0.2
execute voltage (V)	24v (9~36v)
temperature compensate (ºC)	0~+60
environment temperature (ºC)	-20~+85
Overload (%)	200
Static pressure	10~12
load resistance (Ω)	U=POWER SUPPLY, RD=Wire resistance
response time(ms)	≤1
measure medium	compatible with 316L,causticity Gas,liquid
House	1Cr18Ni9Ti
connector thread	Ø7.5,M12×1 or order by customer
explosion proof grade	option-able
water proof grade	IP65
Film	316Lstainless steel
Dimension

Product Dimension

Force Structure & Assembly Reference

pressure sensor signal output
