MPT751 Digital display differential pressure transducer

MPT751 Digital display differential pressure transducer-MANYYEAR TECHNOLOGY

MPT751 Digital display differential pressure transducer

2021/11/12 Pressure Sensor Differential pressure sensor 3224 0

Digital display differential pressure sensor, Air,water and oil differential pressure measurement

Model: MPT751
Category: Differential pressure sensor
Range: Range: 0~2,100……7000KPA
temperature: ,-20~+85
signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application: Digital display differential pressure transducer, Air,water and oil differential pressure measurement

The selection of load cell products must be fully communicated and detailed solutions must be obtained. This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time. Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

Product Introduction Technical Documents

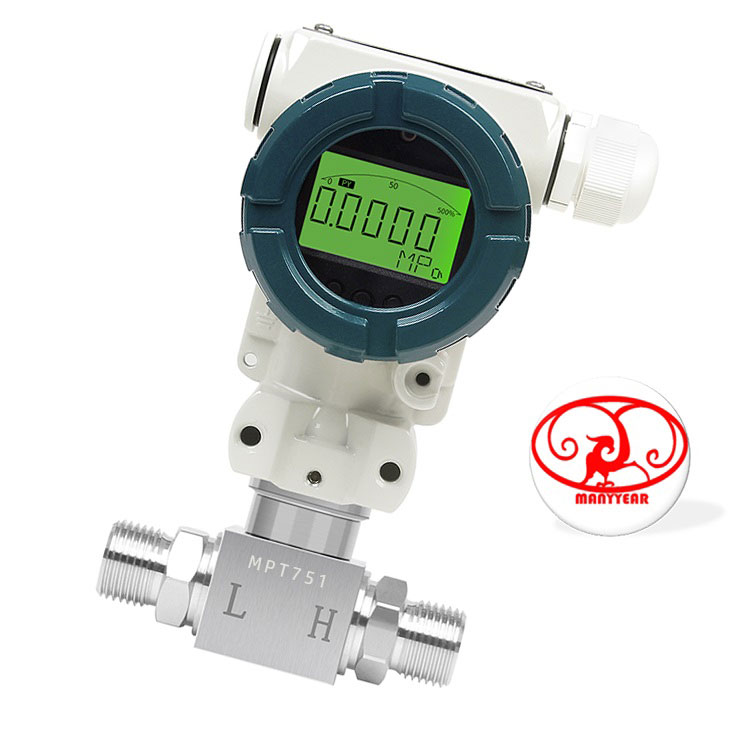

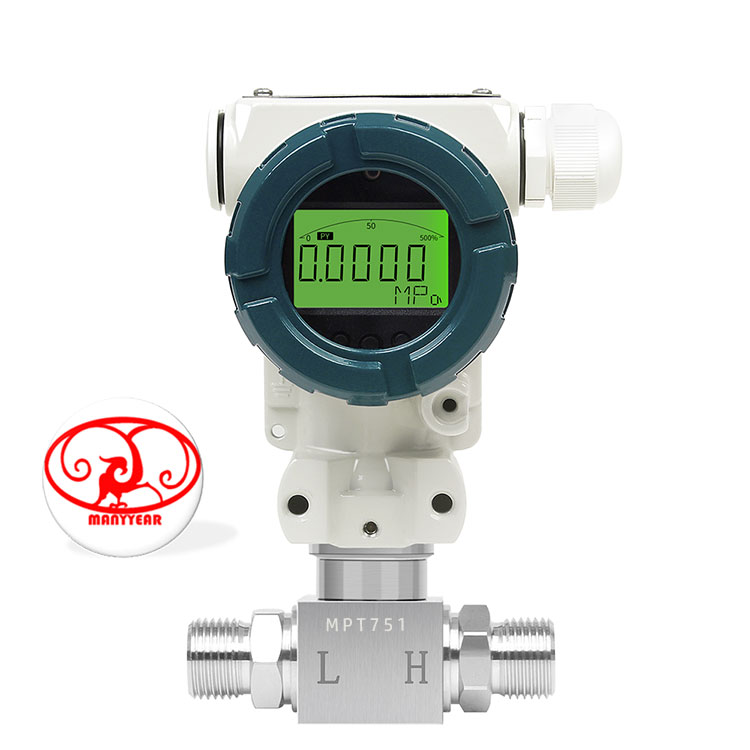

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT751 digital indication Differential Pressure Transducer Model: MPT751 Category: Differential pressure sensor Range: Range: 0~2,100……7000KPA temperature: ,-20~+85 signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485 Application: Application: Air, water and oil differential pressure measurement Characteristic: digital differential pressure sensor, smart differential pressure transmitter

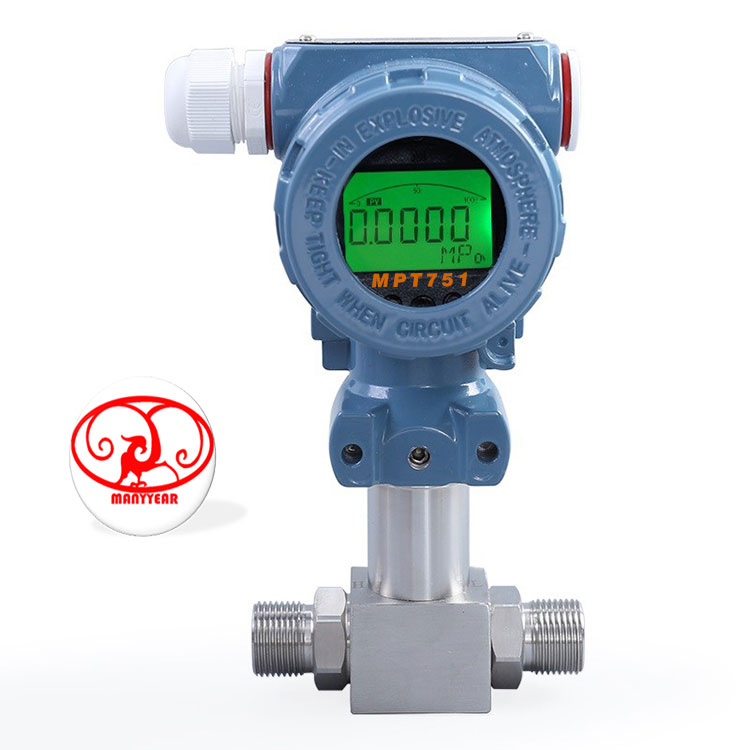

reference picture
Technology parameter:
capability range	0~2 …… 7MPA
pressure type	Differential pressure
signal output(mA/v)	signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Full load output(mV)	30~60
Zero point output(mV)	≤20
Precision(%FS)	0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)	≤0.01 ≤0.02 ≤0.03
temperature excursion	≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)	≤0.1;≤0.2
execute voltage (V)	24v (9~36v)
temperature compensate (ºC)	0~+60
environment temperature (ºC)	-20~+85
Overload (%)	200
Static pressure	10~12
load resistance (Ω)	U=POWER SUPPLY, RD=Wire resistance
response time(ms)	≤1
measure medium	compatible with 316L,causticity Gas,liquid
House	1Cr18Ni9Ti
connector thread	Ø7.5,M12×1 or order by customer
explosion proof grade	option-able
water proof grade	IP65
Film	316Lstainless steel

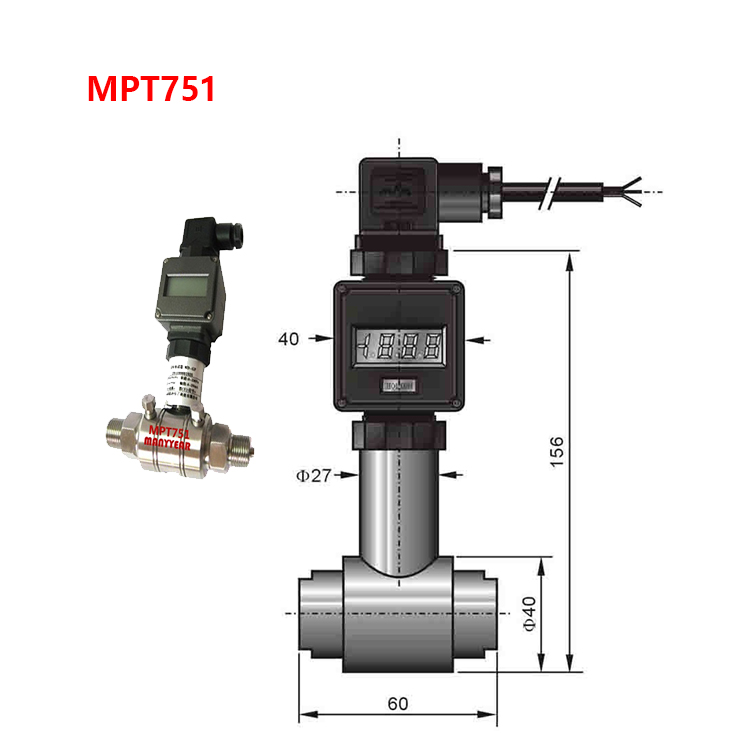

Dimension

Product Dimension

Force Structure & Assembly Reference

pressure sensor signal output
