MPT412D sea water digital level sensor

2024/06/25 Pressure Sensor Anti corrosion pressure sensor level pressure sensor 3179 0

MPT412D polyethylene anti-corrosion digital seawater level sensor

Product model: MPT412D
Product category: Liquid level sensor Product range: 0-200m H2O Temperature: -30~+120
Signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Product application: Water level measurement for atmospheric or pressure vessels such as water towers, water tanks, high-rise building water tanks, expansion water tanks, drainage pits, chemical tanks, tanks, etc
Product keywords: anti-corrosion level sensor, seawater level sensor
Application: sea water level sensor, anti-corrosion level sensor, oil level sensor,polyethylene level sensor

The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

Product Introduction Product Parameters

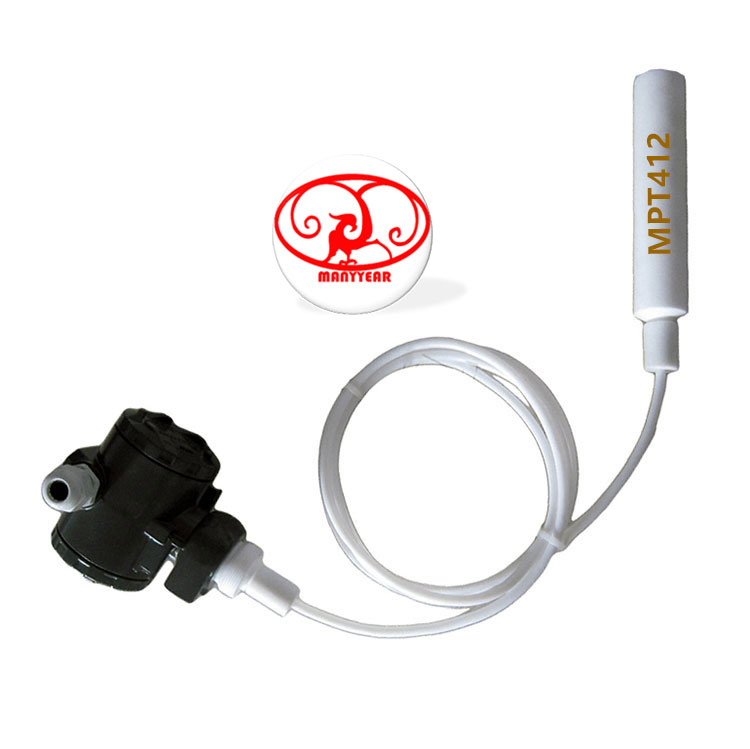

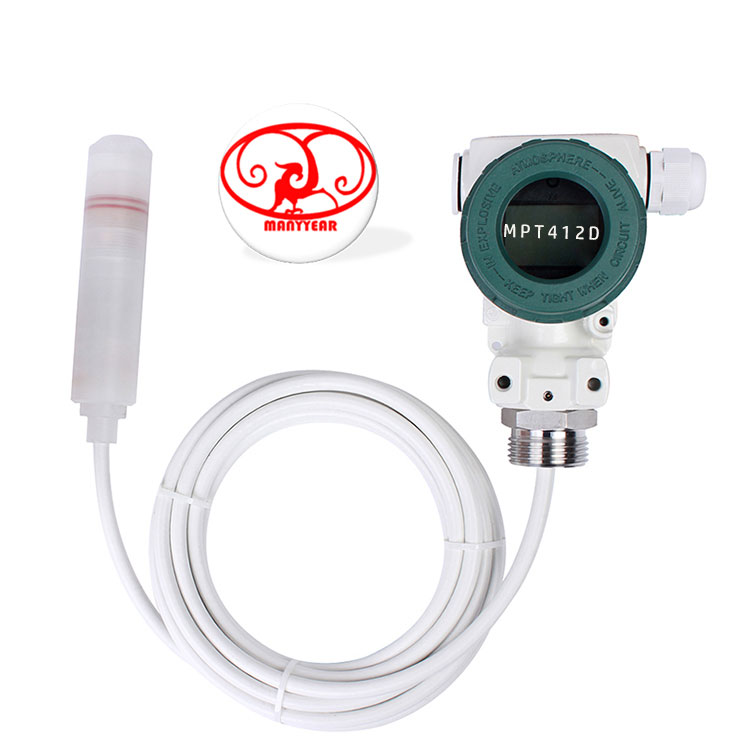

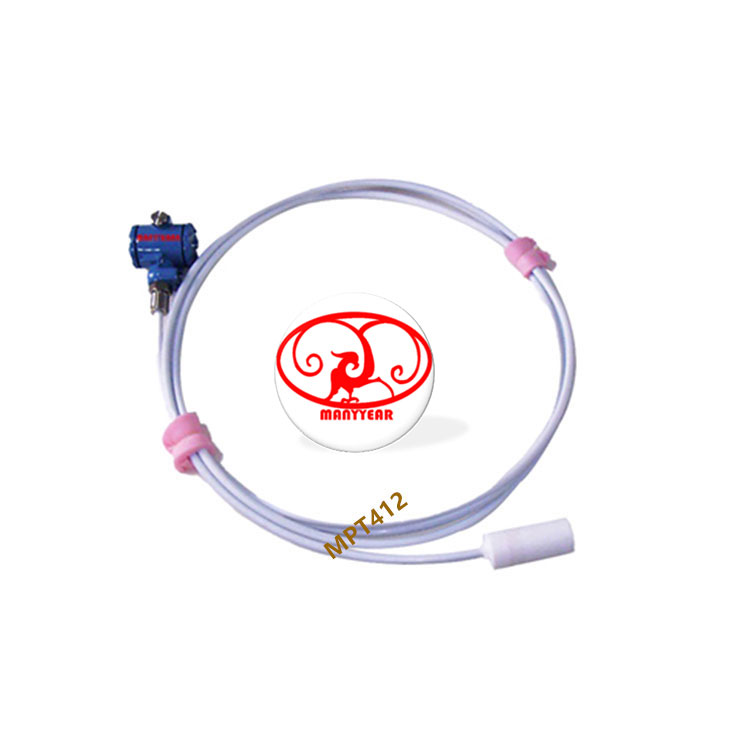

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT412D sea water digital level sensor

Product model: MPT412D Product category: Liquid level sensor Product range: 0-200m H2O Temperature: -30~+120 Signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485 Product application: Water level measurement for atmospheric or pressure vessels such as water towers, water tanks, high-rise building water tanks, expansion water tanks, drainage pits, chemical tanks, tanks, etc Product keywords: anti-corrosion level sensor, seawater level sensor Application: sea water level sensor, anti-corrosion level sensor, oil level sensor,polyethylene level sensor
reference picture Ref pic
Technology parameter:
capability range	0 ~0.5 ~5 …… 200 m
pressure type	Gauge pressure, Absolutely pressure
signal output(mA/v)	Mv/v，0-5V；0-10V；0.5-4.5V；4~20mA RS232、RS485、HART、wireless PNP、NPN、relay
Full load output(mV)	30~60~120
Zero point output(mV)	≤20
Precision	0.1, 0.2, 0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1, ≤0.2, ≤0.3
excursion at zero point (%FS/4h)	≤0.1, ≤0.2, ≤0.3
temperature excursion(zero & delicacy)(%FS/ºC)	≤0.01, ≤0.02, ≤0.03
long term stability(%FS/year)	≤±0.1;≤±0.3
execute voltage(VDC)	24v (9~36v)
temperature compensate(ºC)	0~+80
work temperature(ºC)	.-30~+120
Overload(%)	300
life	＞1X10⁸pressure cycle(25ºC)
load resistance (Ω)	R=(U-12.5)/0.02-R_D resistance
response time(ms)	≤1
measure medium	compatible with Fluorin4 ethane medium
Film	ceramics
House	Fluorin4 ethane
connector thread	Submersible
explosion proof grade	NA
Dimension

Product Dimension

Force Structure & Assembly Reference

pressure sensor signal output
