MPT281 digital dispaly pressure sensor

2021/11/05 Pressure Sensor Common Pressure Sensor 3761 0

digital dispaly pressure sensor, air pressure sensor, water pressure sensor, liquid pressure sensor,oil pressure sensor, gauge pressure sensor, absolute pressure sensor

Model: MPT281
Category: common pressure sensor
Range: 0-2000bar
temperature: .-40~+125
signal output: mv/v, 0-5vdc,4-20mA
Application: digital dispaly pressure sensor, air pressure sensor, water pressure sensor, liquid pressure sensor,oil pressure sensor, gauge pressure sensor, absolute pressure sensor

The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Product Introduction Technical Documents

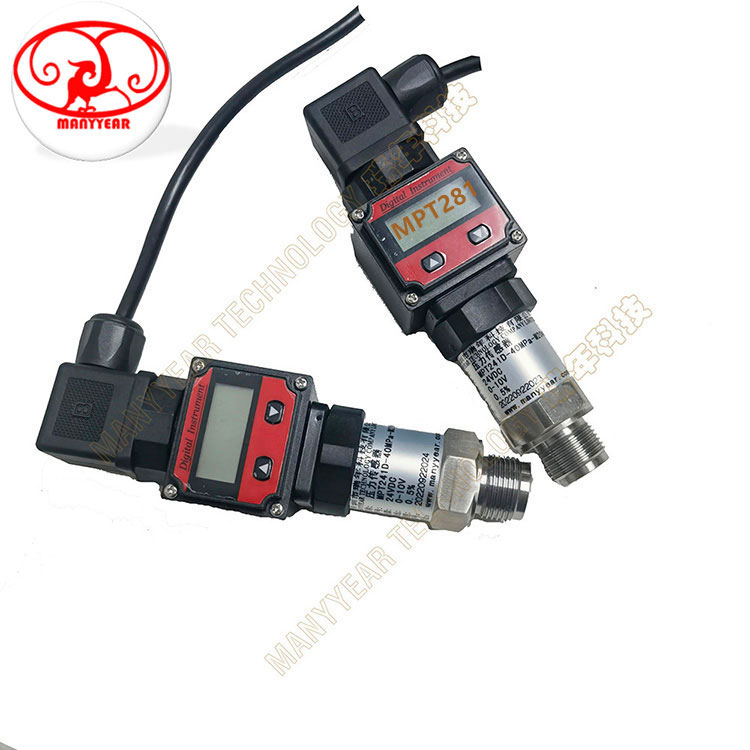

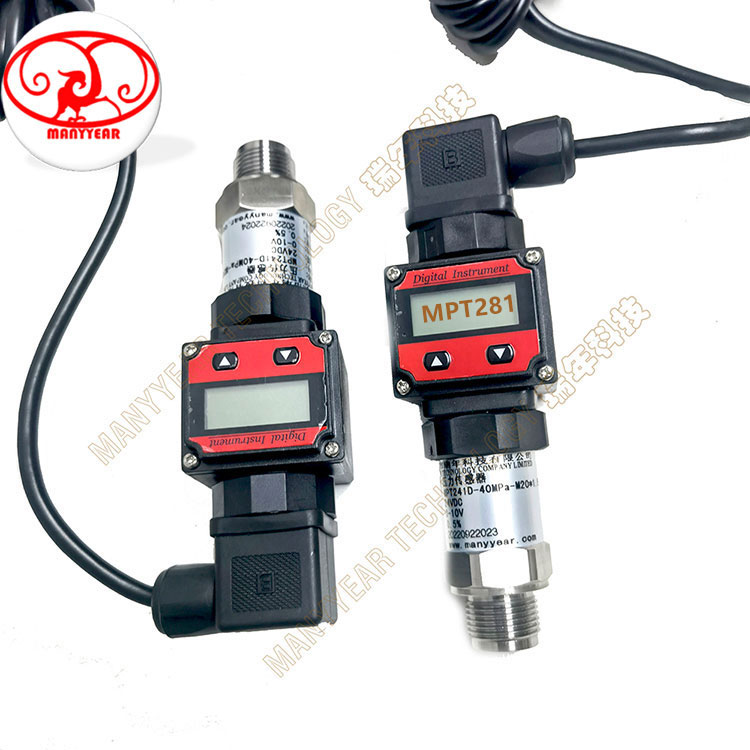

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT281 digital indication style Pressure Transducer

Model: MPT281 Category: common pressure sensor Range: 0-2000bar temperature: .-40~+125 signal output: mv/v, 0-5vdc,4-20mA Application: liquid pressure measure, digit display pressure measure Characteristic: digital pressure sensor, digital display pressure sensor

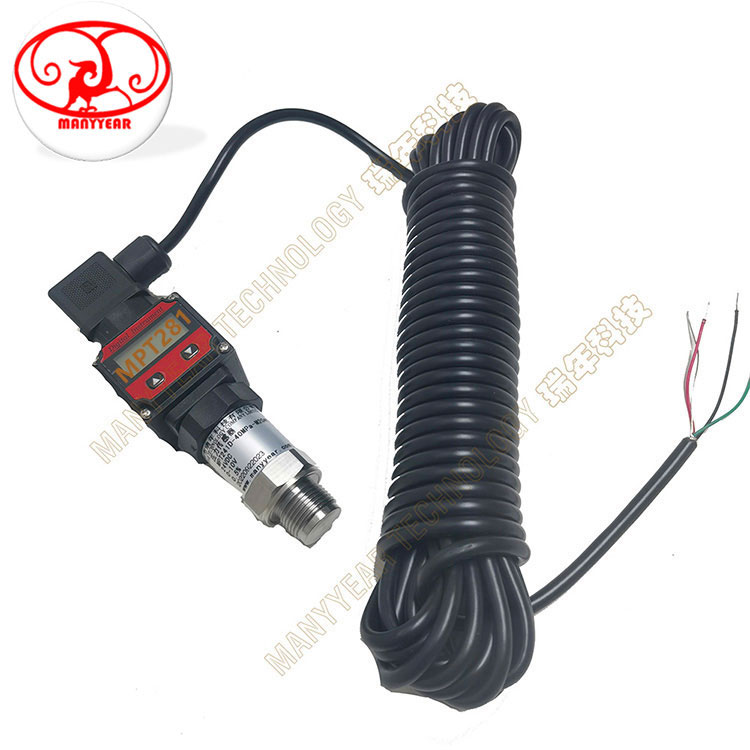

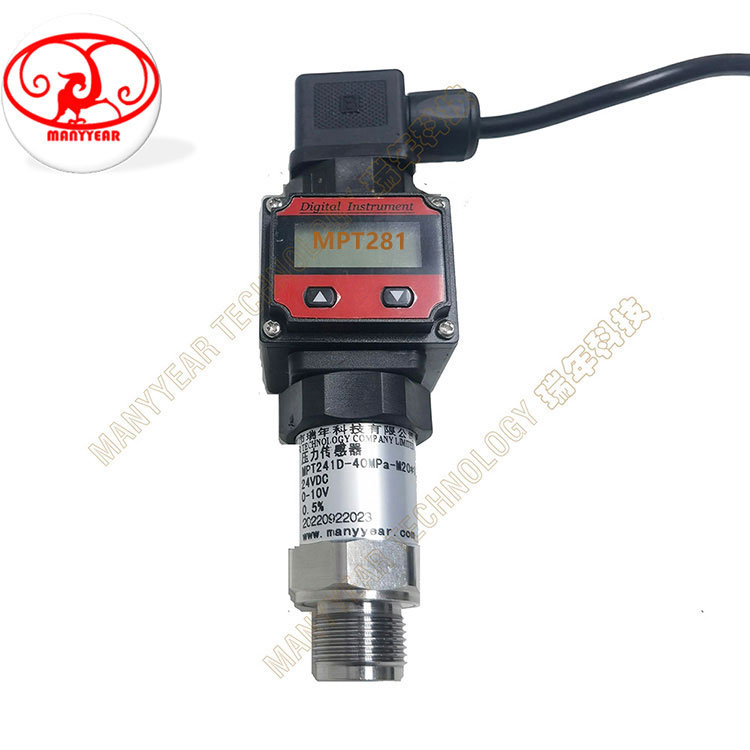

reference picture
Technology parameter:
capability range	0~10Kpa……100Mpa
pressure type	Gauge pressure, Absolutely pressure
signal output(mA/v)	Pressure transducer: 0~5V; 0~10V; 4~20Ma. Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V
Full load output(mV)	30~60
Zero point output(mV)	≤20
Precision(%FS)	0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)	≤0.05 ≤0.1 ≤0.2
temperature excursion(zero & delicacy)(%FS/ºC)	≤0.005 ≤0.01 ≤0.02
long term stability(%FS/year)	≤0.1;≤0.3
execute voltage (V)	pressure transducer:24VDC (9~36)VDC; Pressure Transducer: 10VDC(6~12V)
temperature compensate (ºC)	-20~+60
work temperature (ºC)	-20~+85
storage temperature	-40~+125
Overload (%)	300
Life	＞1×108pressure cycle(25ºC)
load resistance (Ω)	R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance
response time(ms)	≤1
measuremedium	Compatible with 316L. Causticity and nor-causticity medium.
House	316L
Connect thread	M20×1.5 or order by customer
explosion proof grade	NA
Digital indication	4 bit LED
Dimension	REFER TO SPECIFICATION

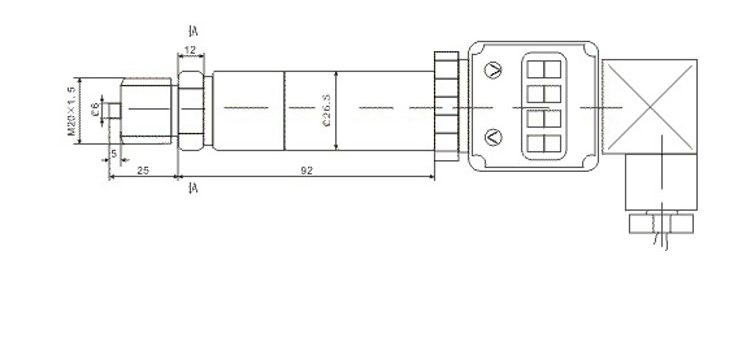

Product Dimension

Force Structure & Assembly Reference

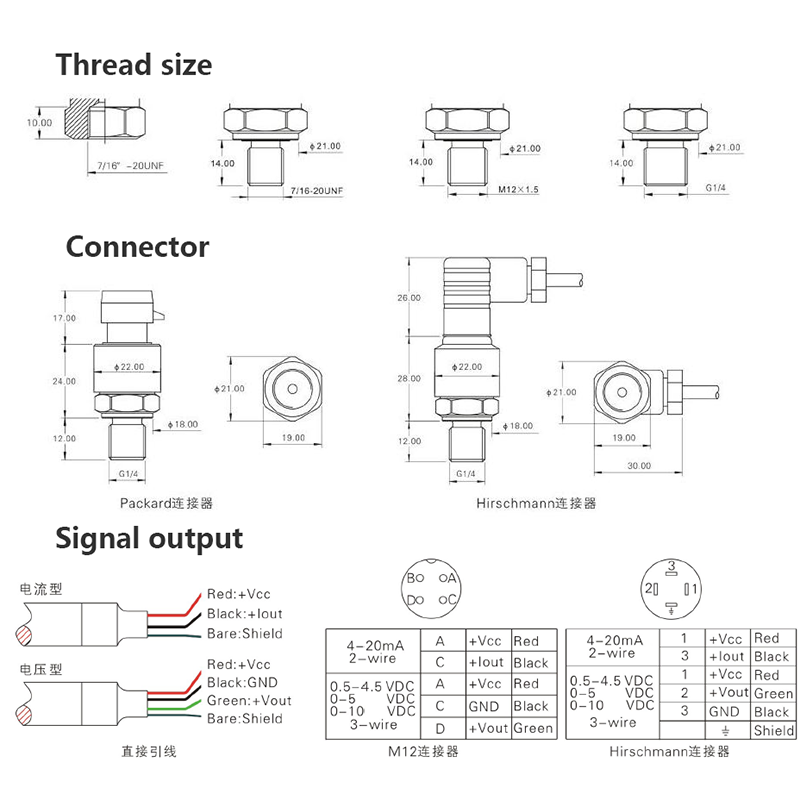

pressure sensor signal output

pressure sensor assembly

Product Application

app-Drinking water production

app-flow-measurement

app-Water pressure measurement
