MPT242A flat diaphragm pressure transducer with clamp flange

MPT242A flat diaphragm pressure transducer with clamp flange

2021/11/03 Pressure Sensor Common Pressure Sensor Flat Diaphragm Pressure Sensor 3464 0

flush diaphragm pressure transducer, food product pressure transducer, Medical production pressure transducer,Flat diaphragm pressure transducer

Model: MPT242A
Category: common pressure sensor
Range: 0-70bar
temperature: .-40~0~150~250c
signal output: mv/v, 0-5vdc,4-20mA
Application: flush diaphragm pressure transducer, food product pressure transducer, Medical production pressure transducer,Flat diaphragm pressure transducer

The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

Product Introduction Technical Documents

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT242A flat diaphragm Pressure transducer- clamps flange install

Model: MPT242A Category: common pressure sensor Range: 0-70bar temperature: .-40~0~150~250c signal output: mv/v, 0-5vdc,4-20mA Application: chemical, food, spin, water conservancy and geologic industry pressure measure. Characteristic: sanitation pressure sensor, hygienic pressure sensor

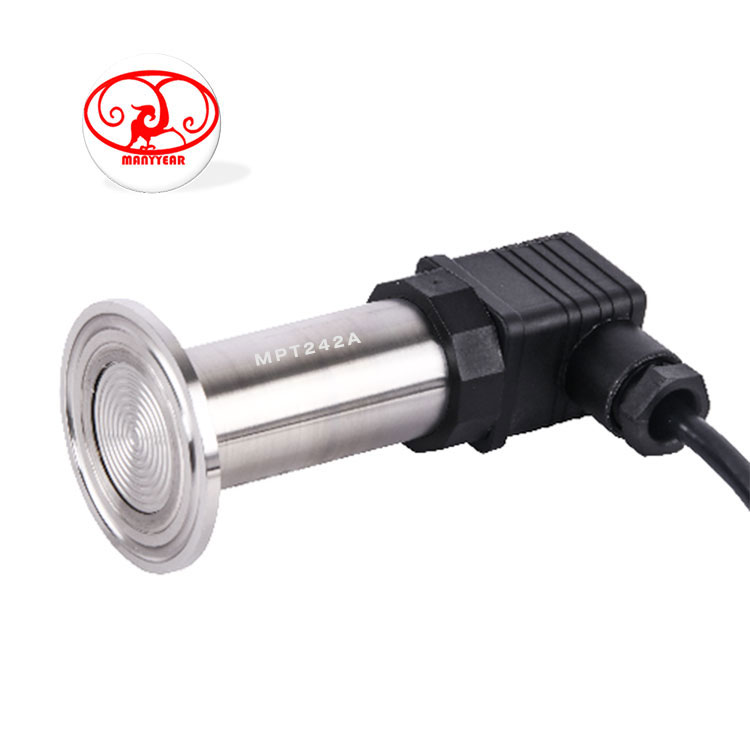

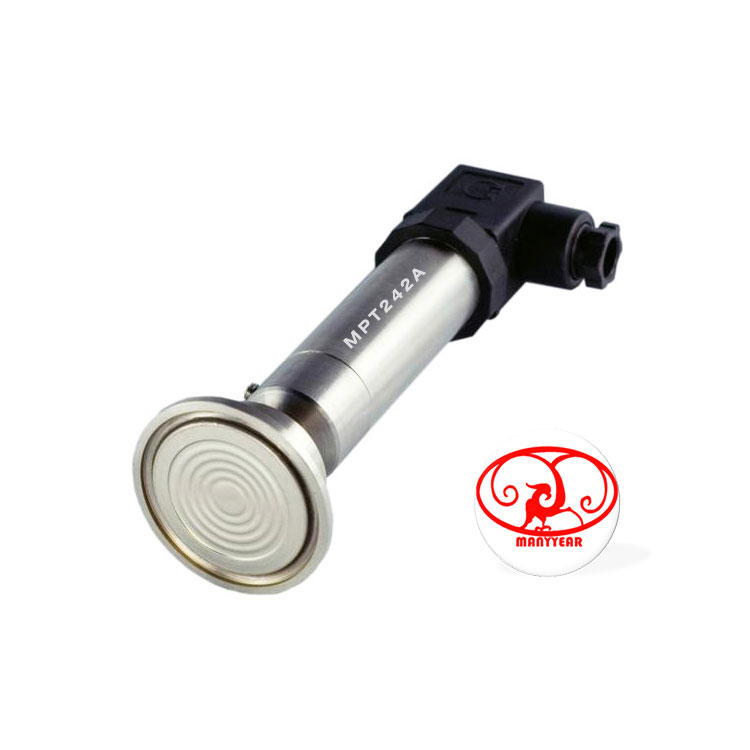

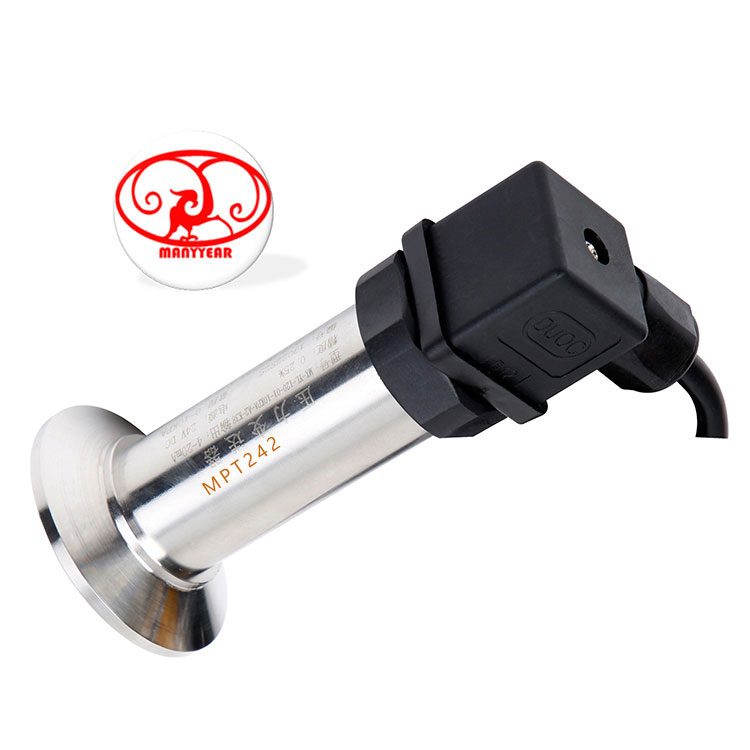

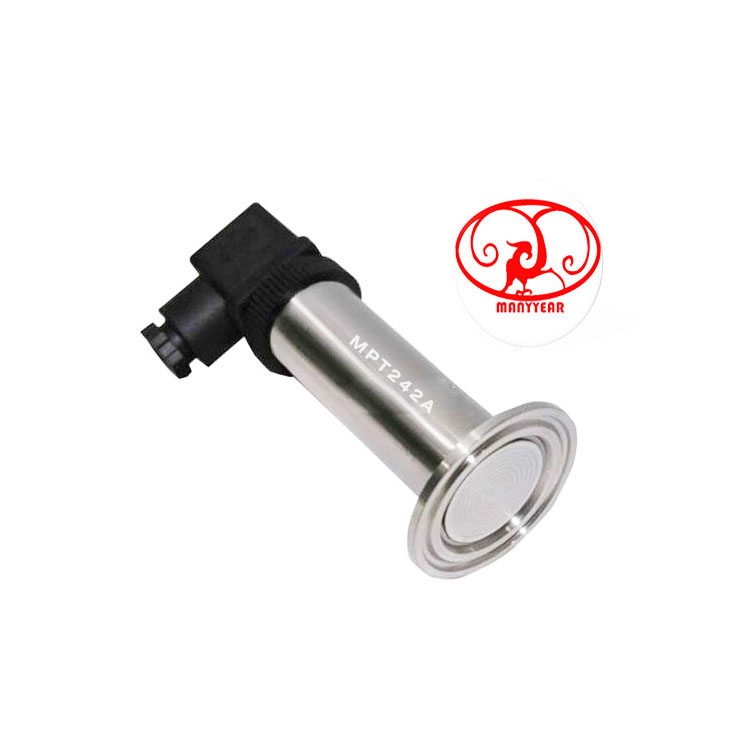

reference picture
Technology parameter:
capability range	0~0.6~7 MPA
pressure type	Gauge pressure, Absolutely pressure
signal output(mA/v)	Pressure transducer: 0~5V; 0~10V; 4~20Ma. Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V
Full load output(mV)	30~60
Zero point output(mV)	≤20
Precision	0.1, 0.2, 0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1, ≤0.2, ≤0.3
excursion at zero point (%FS/4h)	≤0.1, ≤0.2, ≤0.3
temperature excursion(zero & delicacy)(%FS/ºC)	≤0.01, ≤0.02, ≤0.03
long term stability(%FS/year)	≤0.1, ≤0.2, ≤0.3
execute voltage (V)	pressure transducer:24VDC (9~36)VDC; Pressure Transducer: 10VDC(6~12V)
temperature compensate (ºC)	-20~+80
work temperature (ºC)	-40~+150~250c
Overload (%)	300
Life	＞1×108pressure cycle(25ºC)
load resistance (Ω)	R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance
response time(ms)	≤1
Measure medium	compatible with Al2O3, causticity medium
House	1Cr18Ni9Ti
Film	ceramics
Connect thread	sanitation style
explosion proof grade	ExibIICT6
water proof grade	IP67
Dimension

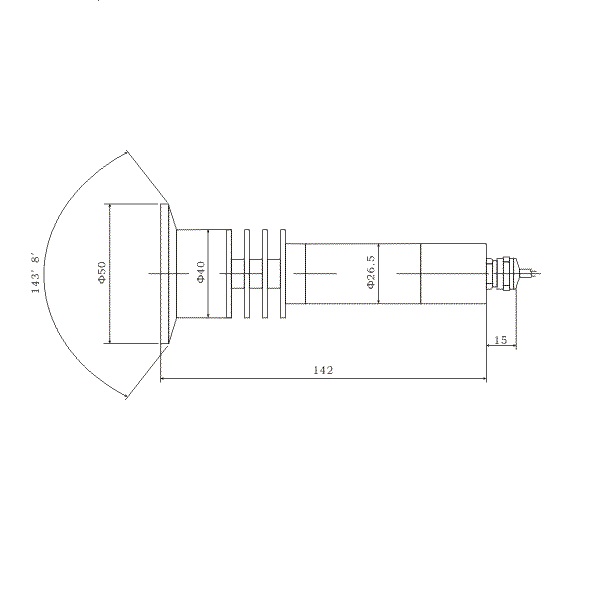

Product Dimension

Force Structure & Assembly Reference

pressure sensor signal output

pressure sensor assembly
