Model: MPT124-141
Category: Melt pressure sensor
Range: 0-2000bar
temperature: 0-450c
Signal output: mv/v, 0-5vdc, 0-10vdc, 4-20mA
Application: miniature high temperature pressure sensor, compression moulding machine pressure transmitter,high temperature chamber pressure transmitter

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Product Parameters

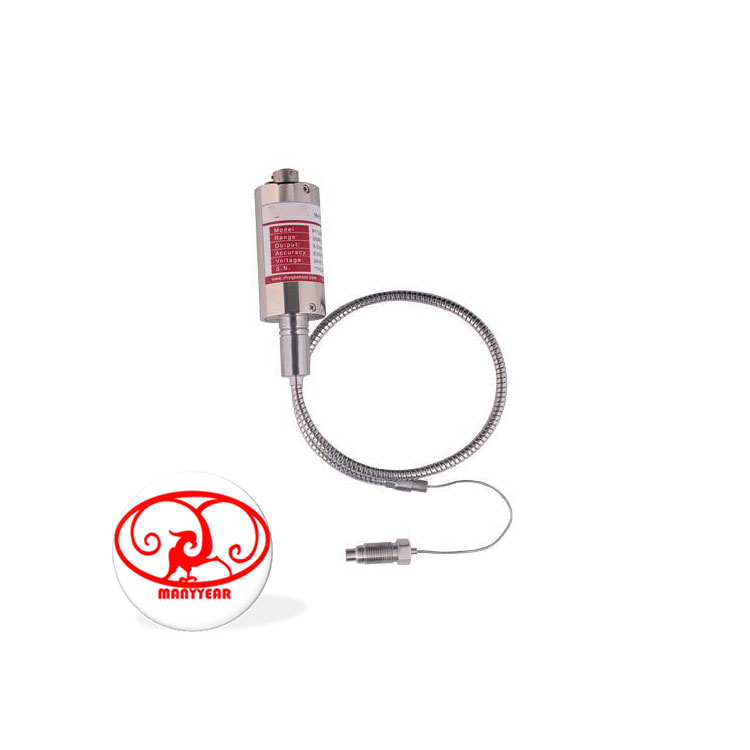

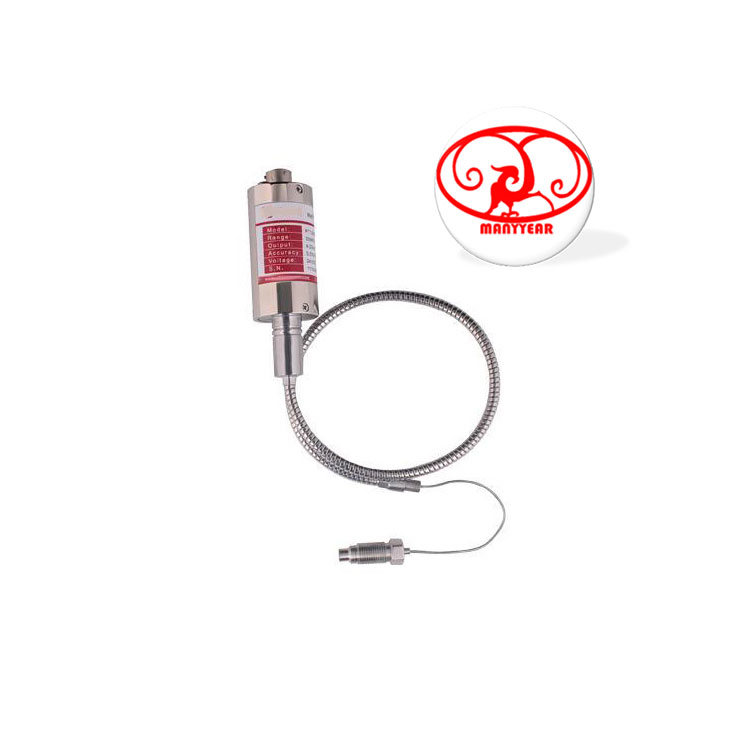

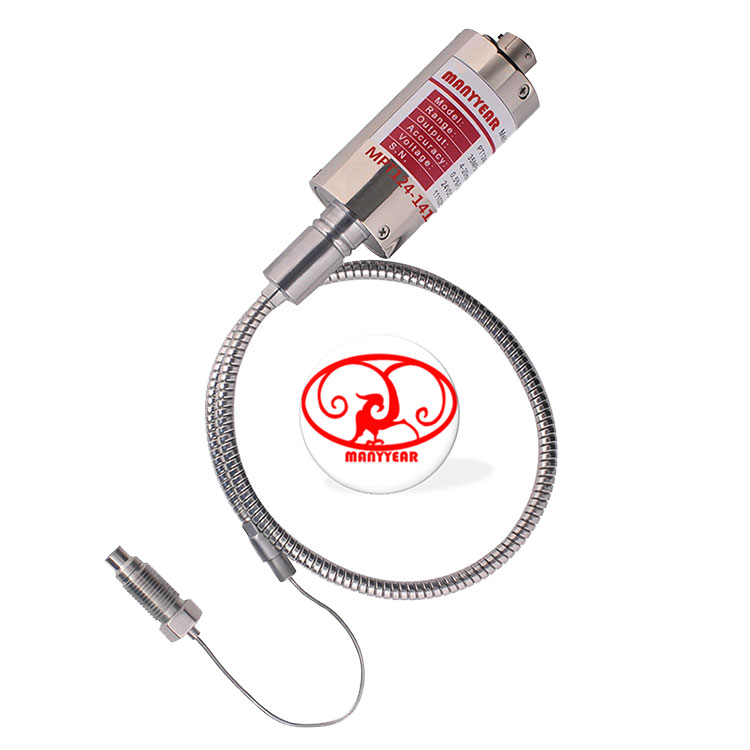

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT124-141(capillary –flexible Tube style)

Model: MPT124-141 Category: Melt pressure sensor Range: 0-2000bar temperature: 0-450c Application: Plastic Extruder equipment, plastic injection molding Characteristic: melt pressure sensor，melt pressure transmitter
Pic
SPEC
Capability range:	0~5MPA~200MPA(optional )
Signal output:	Pressure transmitter: 0~5V; 0~10V; 4-20mA; Pressure Transducer: 1.5mV/V; 2mV/V; 3.33mV/V
Precision:	±0.5%FSO
Power supply:	Pressure transducer: 10VDC / 24VDC (12~36)VDC;
Repetition:	±0.2%FSO
Electronic frame:	FST bridge
Bridge resistance:	350 ohms±10%
Thermocouple type	NA
Overload pressure:	2*FSO
Self-adjust:	80%±1%
Insulated resistance:	1000Megohms @50Vdc
Film max temperature:	450ºC
Electr-connector:	6Core or 8Core
Port connector:	1/2″-20UNF, M14*1.5Or Design by customer
Material:	15-5PH stainless steel, coated
Zero drift by melt temp.:	<45psi/100℃
Ambient temp. of shell:	form -29℃ to 71℃
Temp. comp range:	form -1℃ to 71℃
Temp.effect on zero	<± 0.10% full scale/℃
Temp.effect on span	<±0.04% full scale/℃
Installation torque:	5n.m
Wire Frame

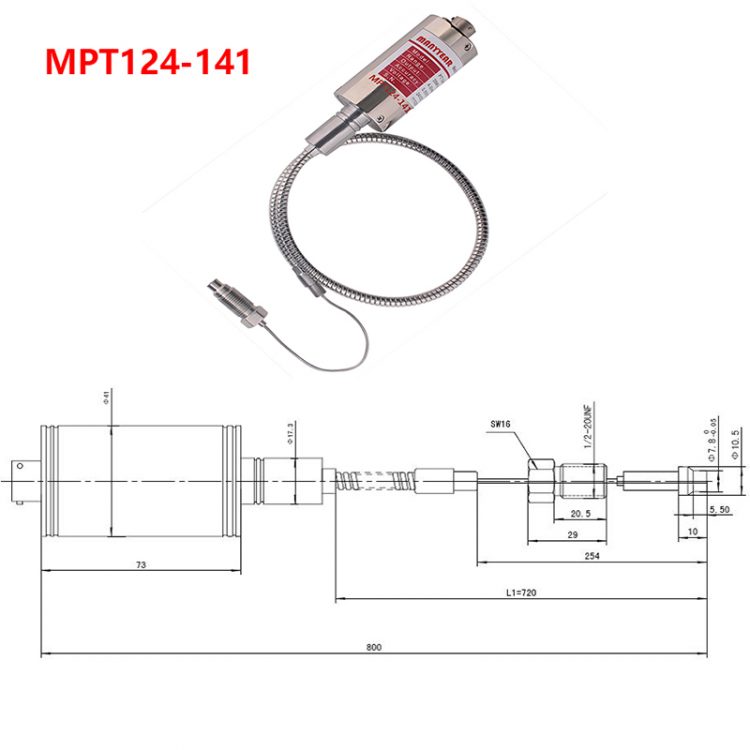

Product Dimension

Force Structure & Assembly Reference

pressure sensor assembly

Product Application

High and low temperature test chamber

Plastic ejector pressure transmitter

injection molding machine pressure sensor
