MPT124-132 temperature pressure transmitter

MPT124-132 temperature pressure transmitter

2021/10/28 Pressure Sensor High Temperature Pressure Sensor 3955 0

temperature pressure transmitter, high temperature melt pressure transmitter, compression moulding machine pressure transmitter,plastic injection molding pressure transmitter

Model: MPT124-132
Category: Melt temperature pressure sensor
Range: 0-2000bar
temperature: 0-450c
Signal output: mv/v, 0-5vdc, 0-10vdc, 4-20mA
Application: temperature pressure transmitter, high temperature melt pressure transmitter, compression moulding machine pressure transmitter,plastic injection molding pressure transmitter

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Product Parameters

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

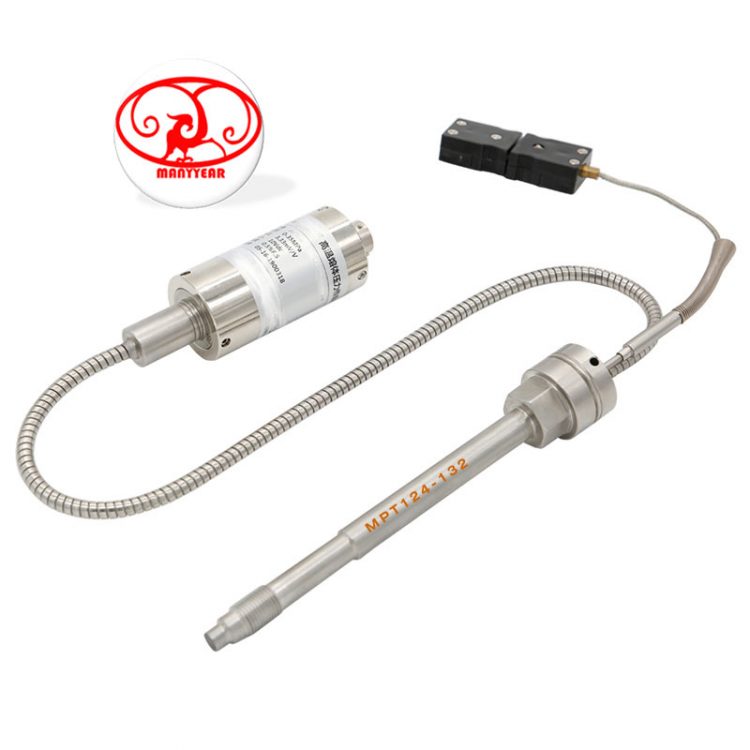

MPT124-132 (Melt pressure and temperature- flexible Tube)

Model: MPT124-132 Category: Melt temperature pressure sensor Range: 0-2000bar temperature: 0-450c Application: Plastic Extruder equipment,temperature pressure measure Characteristic: melt temperature pressure transmitter
pic
SPEC.
Capability range:	0~5MPA~200MPA(OMPTion )
Signal output:	Pressure transducer: 0~5V; 0~10V; 4-20mA; Pressure Transducer: 1.5mV/V; 2mV/V; 3.33mV/V
Precision:	±0.5%FSO
Power supply:	Pressure transducer: 24VDC (12~36)VDC; Pressure Transducer: 10VDC
Repetition:	±0.2%FSO
Electronic frame:	FST bridge
Bridge resistance:	350 ohms±10%
Thermocouple type:	J,K,E, MPT100
Overload pressure:	2*FSO
Self-adjust:	80%±1%
Insulated resistance:	1000Megohms @50Vdc
Film max temperature:	450ºC
Electr-connector:	5Core,Wire
Port connector:	1/2″-20UNF, M14*1.5Or Design by customer
Wire Frame

Product Dimension

Force Structure & Assembly Reference

Product Application

High and low temperature test chamber

Plastic ejector pressure transmitter

injection molding machine pressure sensor
