MLC809 packing scale weighing sensor

platform weighing sensor, feeding scale weighing sensor, batching scale weighing sensor, packing scale weighing sensor

Model: MLC809
Category: Shear beam load cell
Rated load: 0.5t,1t,2t
Safe overload:150%; Ultimate overload: 200%
Material: alloy steel, stainless steel
Characteristic: platform weighing sensor,feeding scale weighing sensor,batching scale weighing sensor,packing scale weighing sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

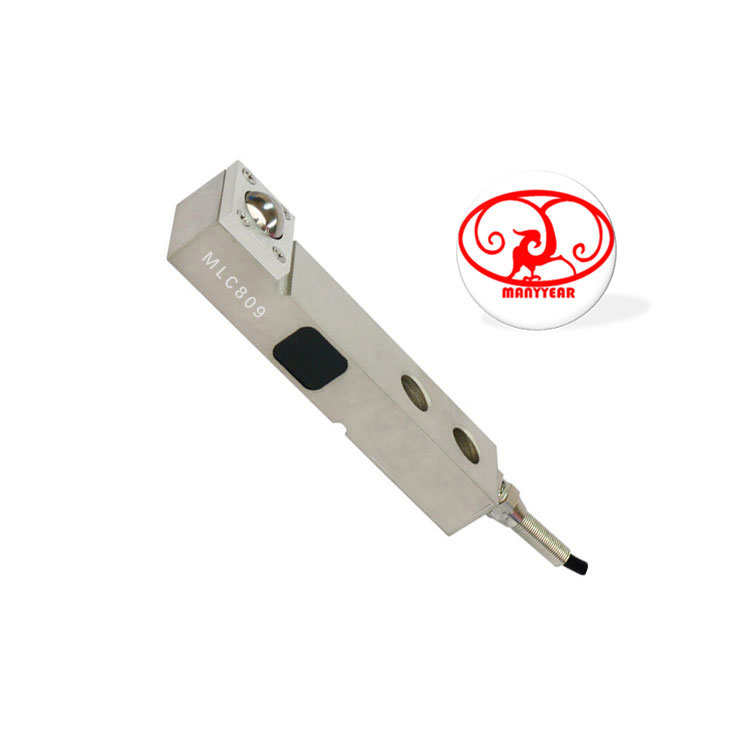

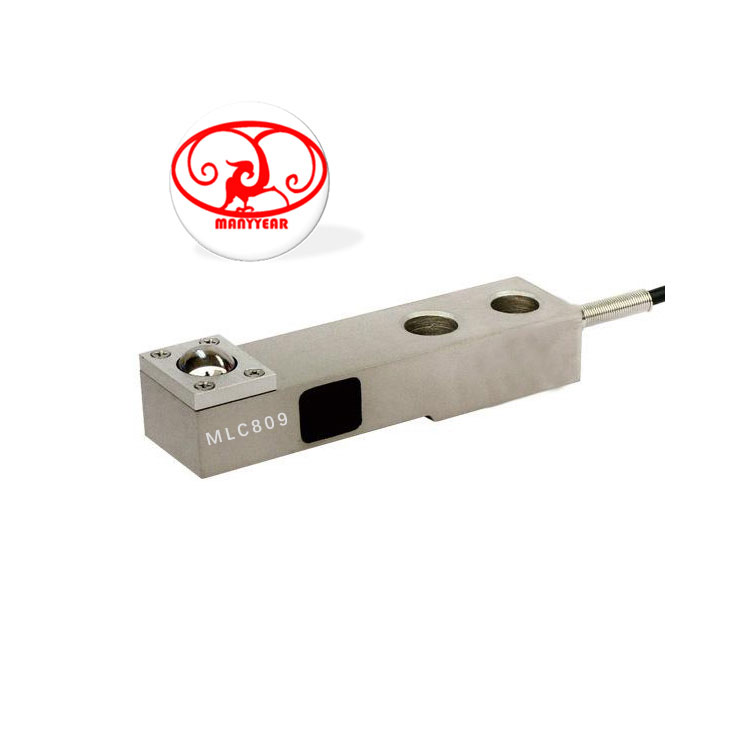

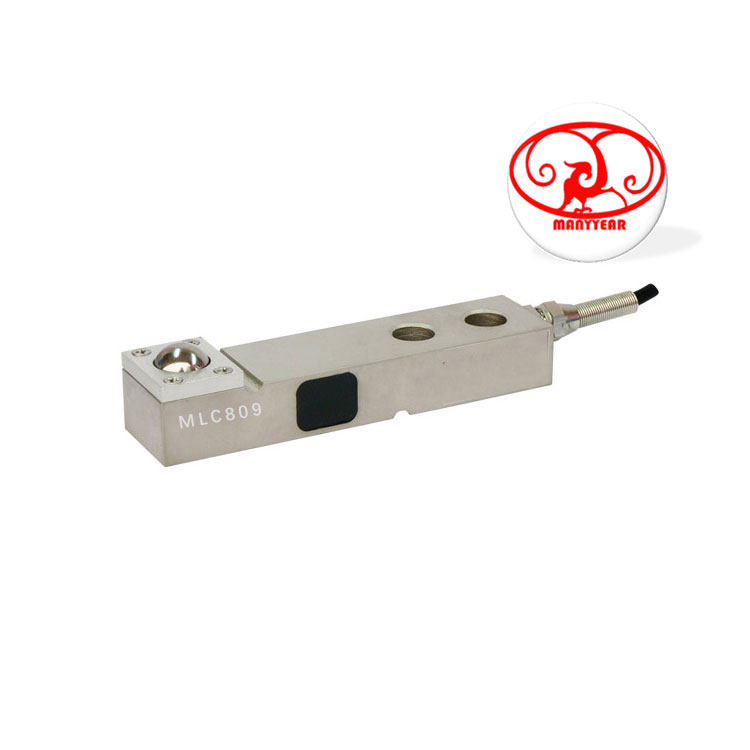

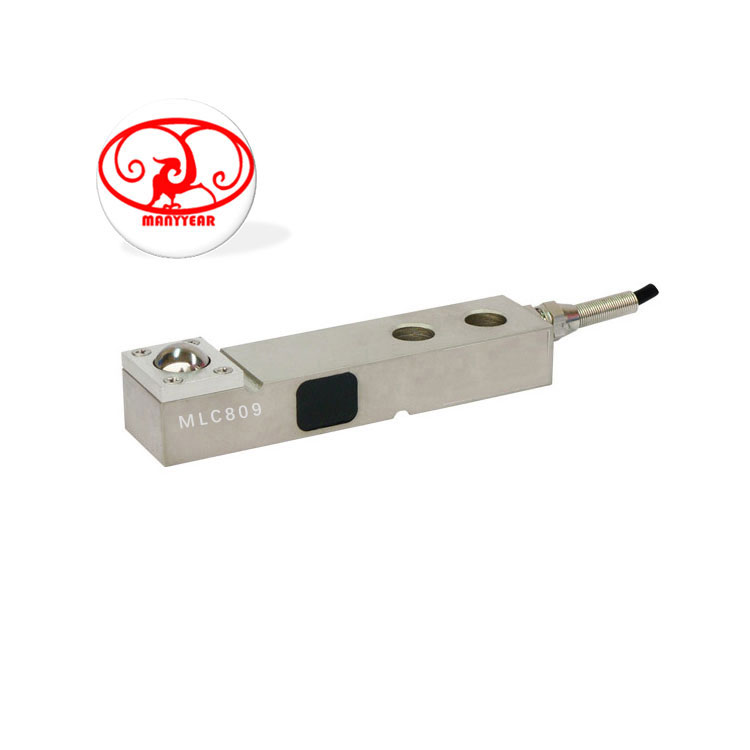

Product Picture Reference

MLC809 packing scale weighing sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
                                                                             MLC809 packing scale weighing sensor

Model: MLC809

Category: Shear beam load cell

Rated load:0.5t,1t,2t

Safe overload:150%; Ultimate overload: 200%

Material: alloy steel, stainless steel

Characteristic: platform weighing sensor,feeding scale weighing sensor,batching scale weighing sensor,packing scale weighing sensor

  Specification
Comprehensive error:0.03%FSOutput resistance:350±3Ω
Rated output:2±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+55ºC
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66


Product Dimension

MLC809 packing scale weighing sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC809 packing scale weighing sensor-MANYYEAR TECHNOLOGY

Product Application

MLC809 packing scale weighing sensor-MANYYEAR TECHNOLOGYMLC809 packing scale weighing sensor-MANYYEAR TECHNOLOGYMLC809 packing scale weighing sensor-MANYYEAR TECHNOLOGY
