MLC808 batching scale weighing sensor MLC808 batching scale weighing sensor
MLC808 batching scale weighing sensor
MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY
MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY
MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY
MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY
MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY

MLC808 batching scale weighing sensor

platform weighing sensor, feeding scale weighing sensor, batching scale weighing sensor, packing scale weighing sensor

Model: MLC808
Category: Shear beam load cell
Rated load: 0.5t, 1t, 2t
Safe overload:150%; Ultimate overload: 200%
Material: alloy steel,stainless steel
Characteristic: platform weighing sensor,feeding scale weighing sensor,batching scale weighing sensor,packing scale weighing sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

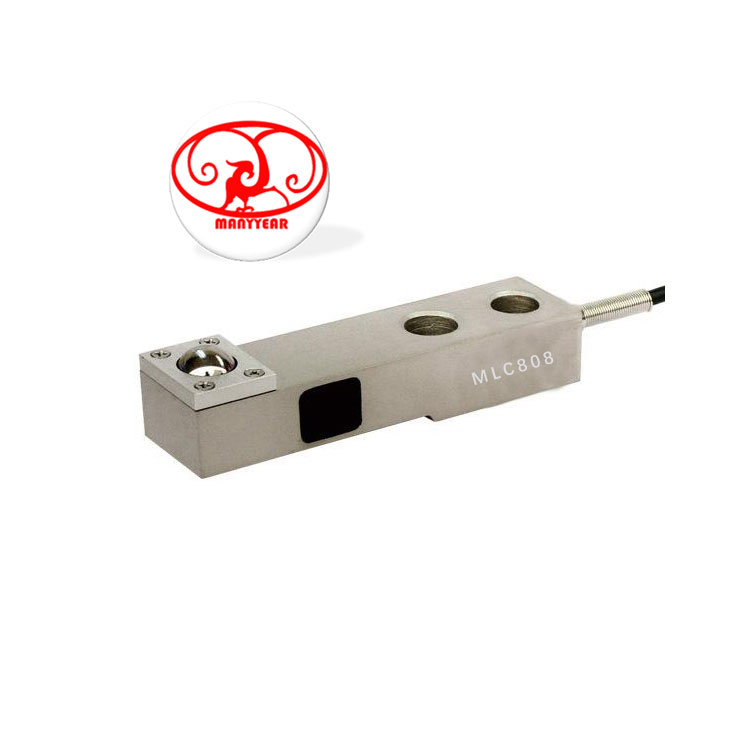

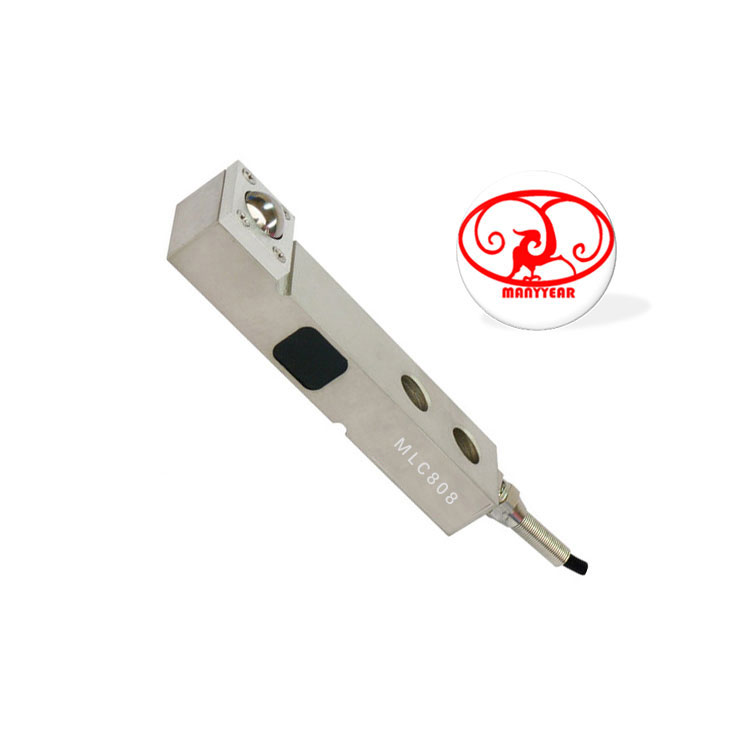

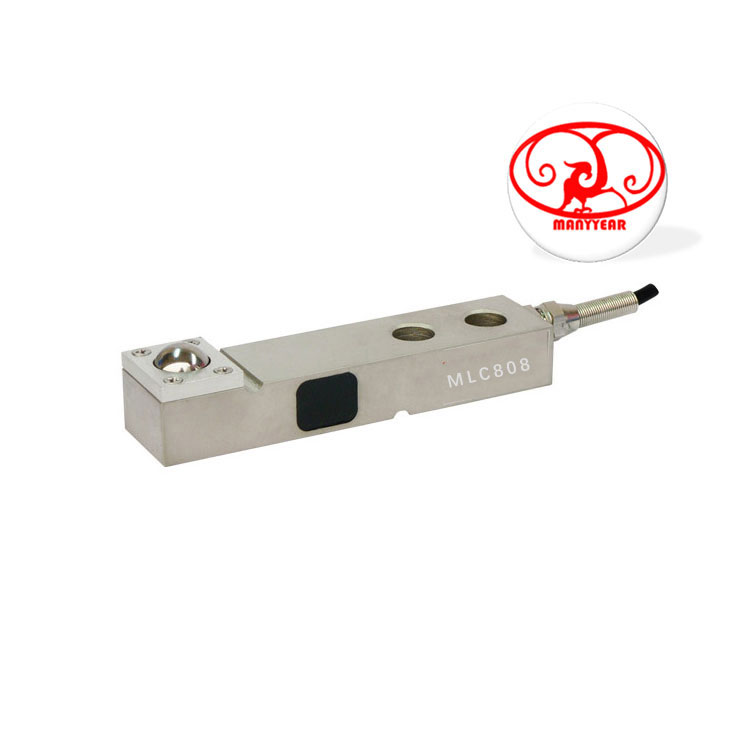

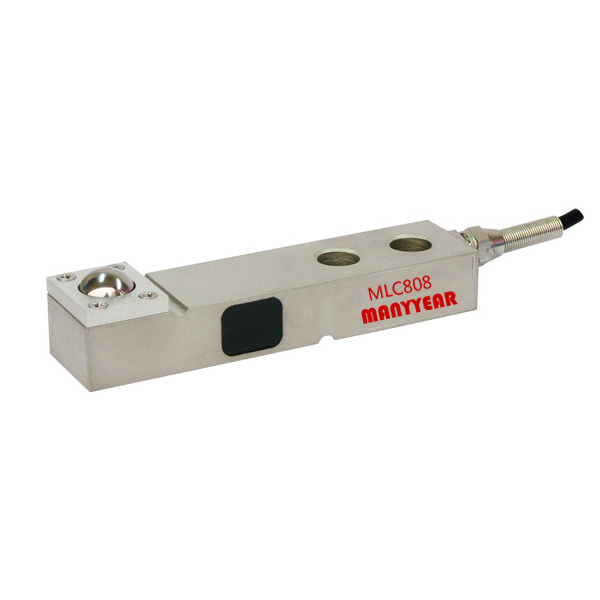

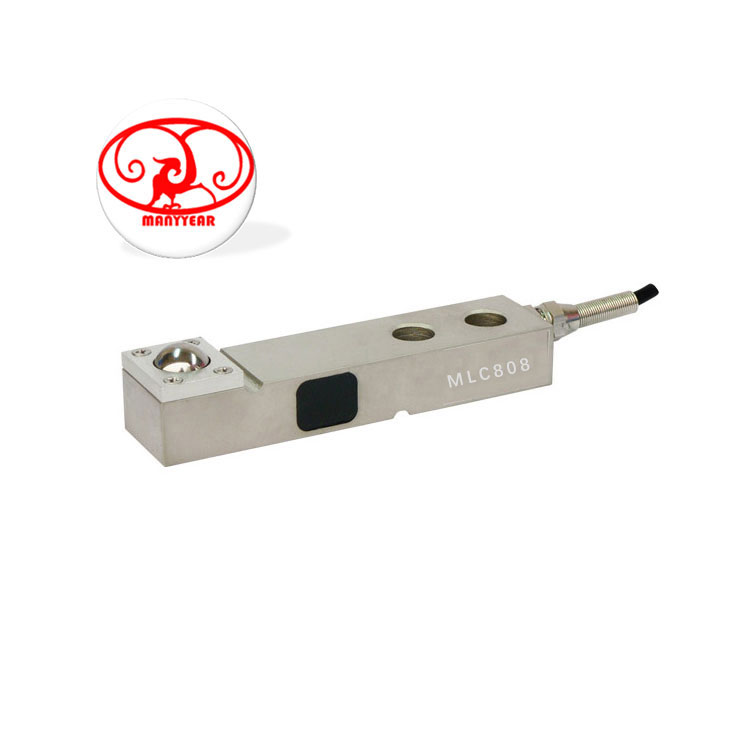

Product Picture Reference

MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
                                                                                     MLC808 batching scale weighing sensor

Model: MLC808

Category: Shear beam load cell

Rated load: 0.5t, 1t, 2t

Safe overload:150%; Ultimate overload: 200%

Material: alloy steel,stainless steel

Characteristic: platform weighing sensor,feeding scale weighing sensor,batching scale weighing sensor,packing scale weighing sensor

Specification
Comprehensive error:0.03%FSOutput resistance:350±3Ω
Rated output:2±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+55ºC
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66

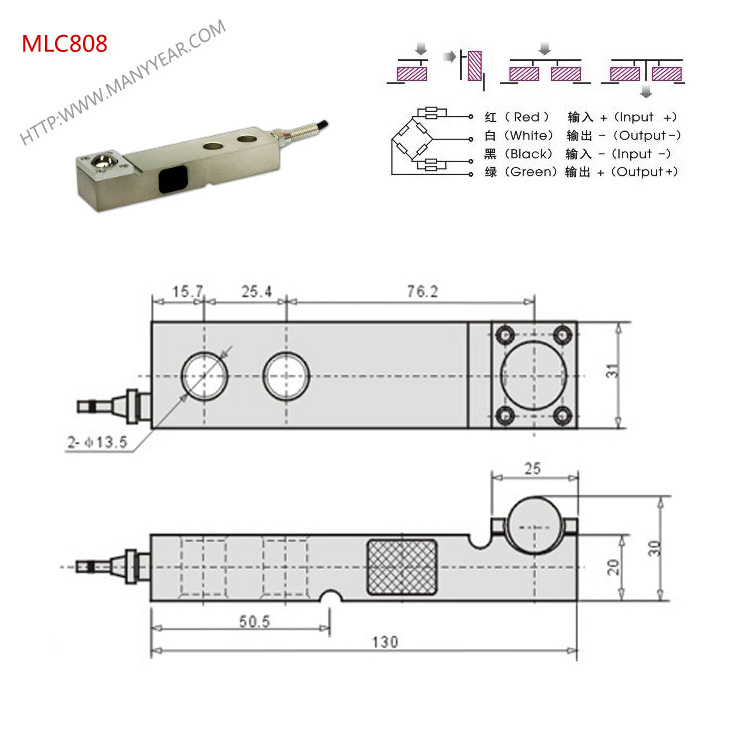

Product Dimension

MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY

Product Application

MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGYMLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY

MLC808 batching scale weighing sensor-MANYYEAR TECHNOLOGY

apw-batching scale
