MLC805 feeding scale weight sensor

platform weight sensor, feeding scale weight sensor, belt scale weight sensor, packing scale weight sensor

Model: MLC805
Category: Shear beam load cell
Rated load: 1,2,2.5,3,5ton
Safe overload:120% Ultimate overload: 150%
Material: alloy steel, stainless steel
Characteristic: platform weight sensor,feeding scale weight sensor,belt scale weight sensor,packing scale weight sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

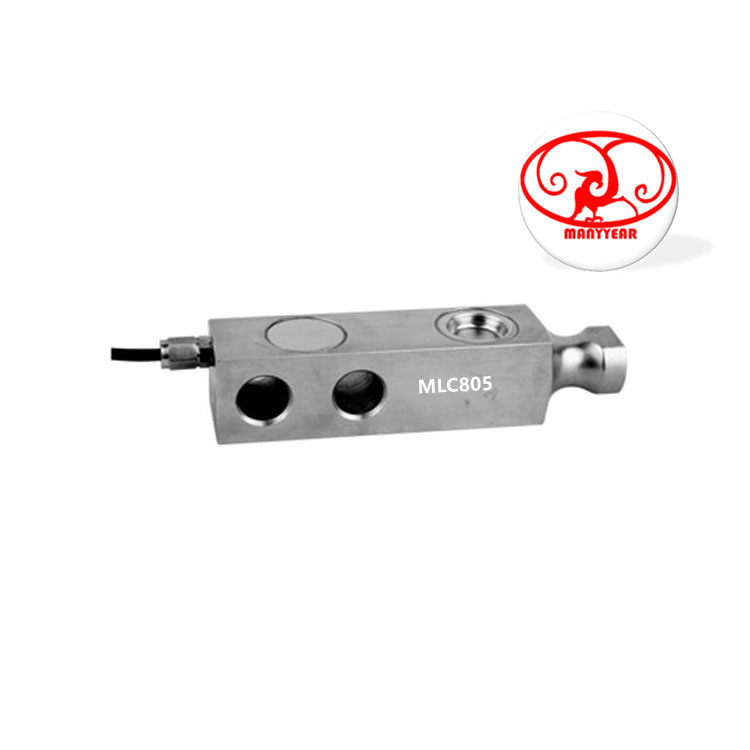

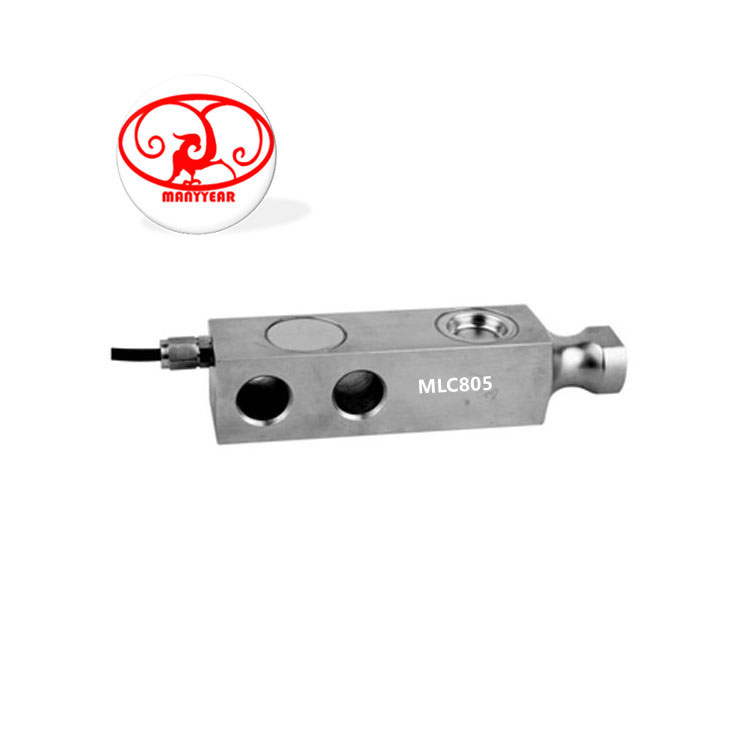

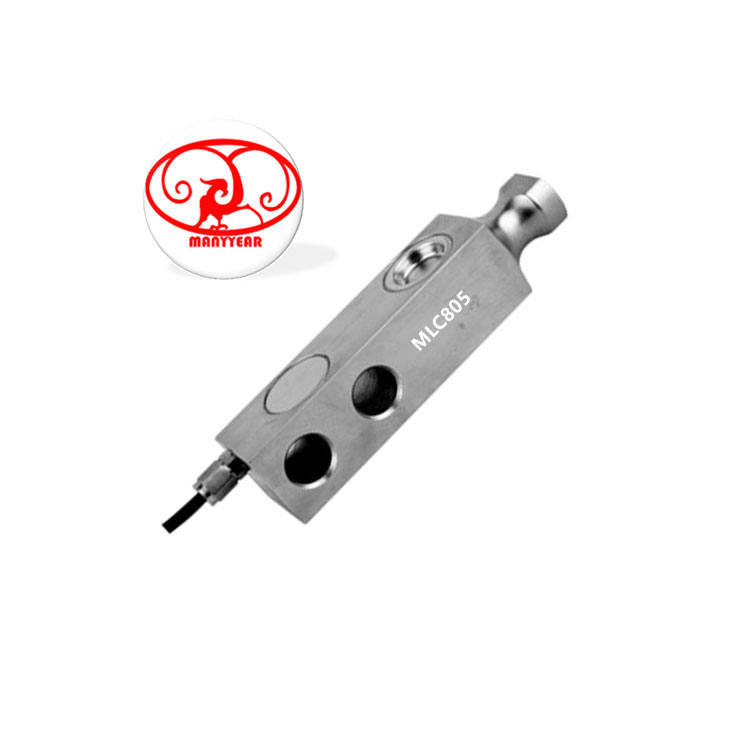

Product Picture Reference

MLC805 feeding scale weight sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
                                                                                            MLC805 feeding scale weight sensor

Model: MLC805

Category: Shear beam load cell

Rated load: 1,2,2.5,3,5ton

Safe overload:120%; Ultimate overload: 150%

Material: alloy steel, stainless steel

Characteristic: platform weight sensor,feeding scale weight sensor,belt scale weight sensor,packing scale weight sensor

Other Dimension
Rated loadLL1L2L3ABCDEF
1-2.5ton13015.825.476.23223.415.23215.813.5
3-5ton171.51938.593.53830.521.83822.920
Specification
Comprehensive error:0.03%FSOutput resistance:350±3Ω
Rated output:2±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+55ºC
Creep:0.03%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66

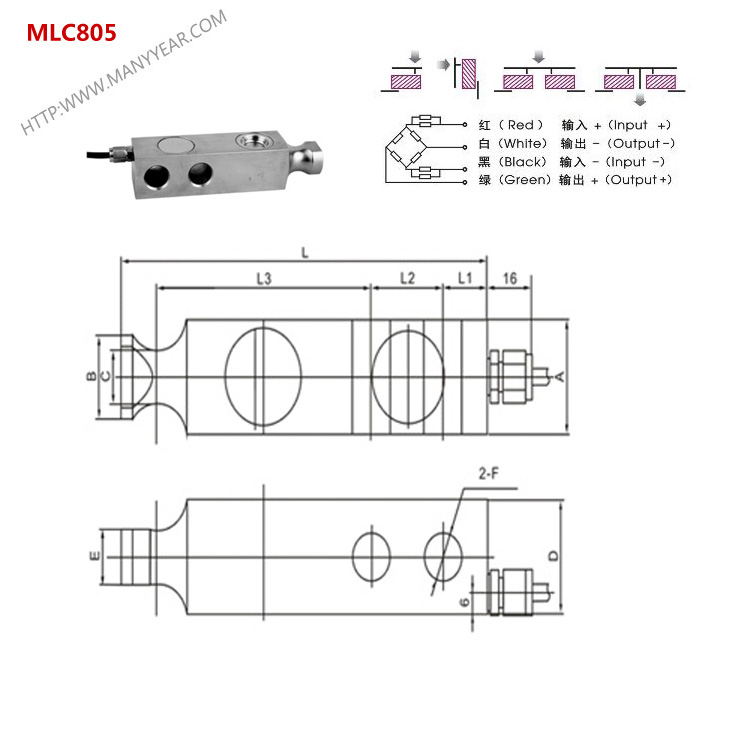

Product Dimension

 MLC805 feeding scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC805 feeding scale weight sensor-MANYYEAR TECHNOLOGY

Product Application

MLC805 feeding scale weight sensor-MANYYEAR TECHNOLOGYMLC805 feeding scale weight sensor-MANYYEAR TECHNOLOGYMLC805 feeding scale weight sensor-MANYYEAR TECHNOLOGY
