MLC804 feeding scale load cell

platform scale load cell, feeding scale load cell, belt scale load cell, packing scale load cell, blending scale load cell.

Model:MLC804
Category: Shear beam load cell
Rated load: 50,100,200,300,500,750,1000kg
Material: alloy steel, stainless steel
Characteristic: platform scale load cell,feeding scale load cell,belt scale load cell,packing scale load cell,blending scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

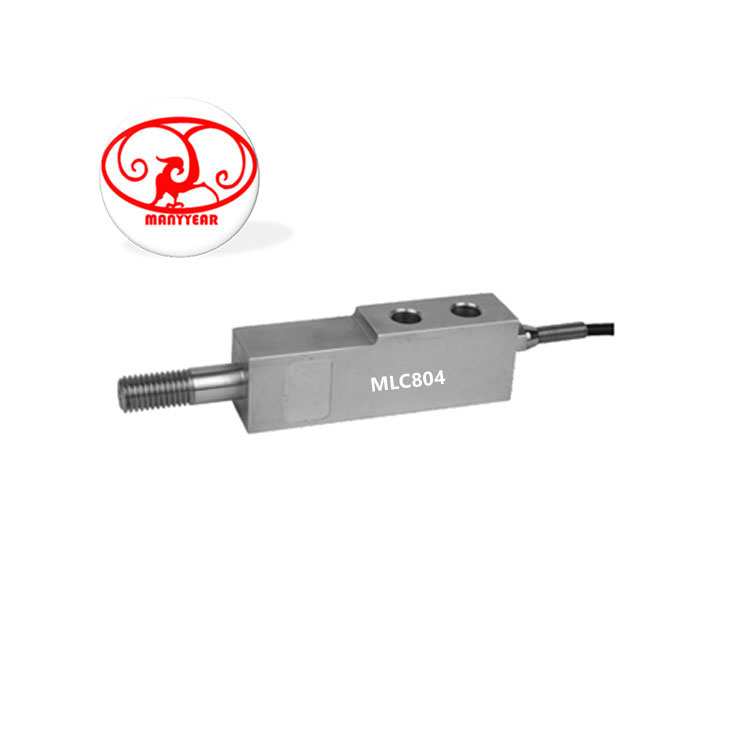

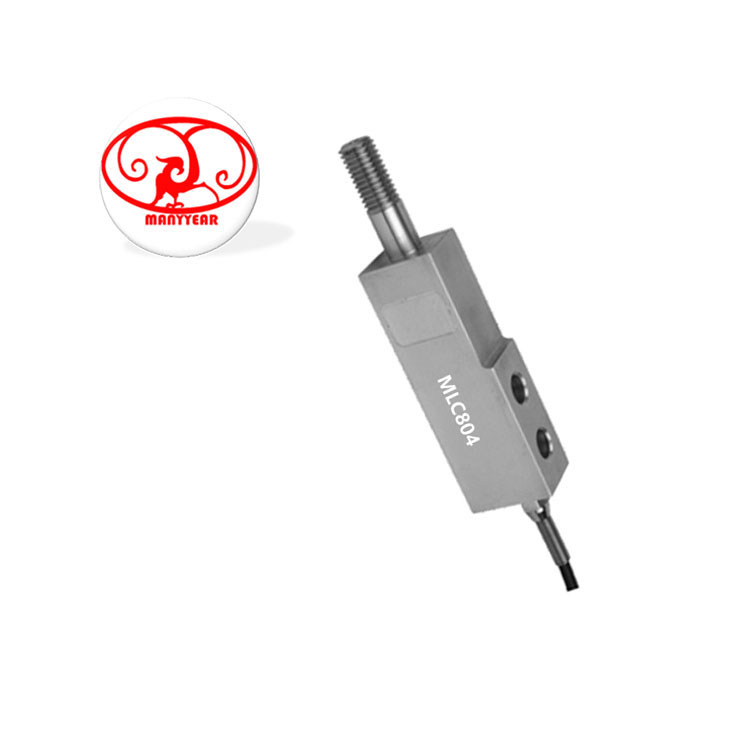

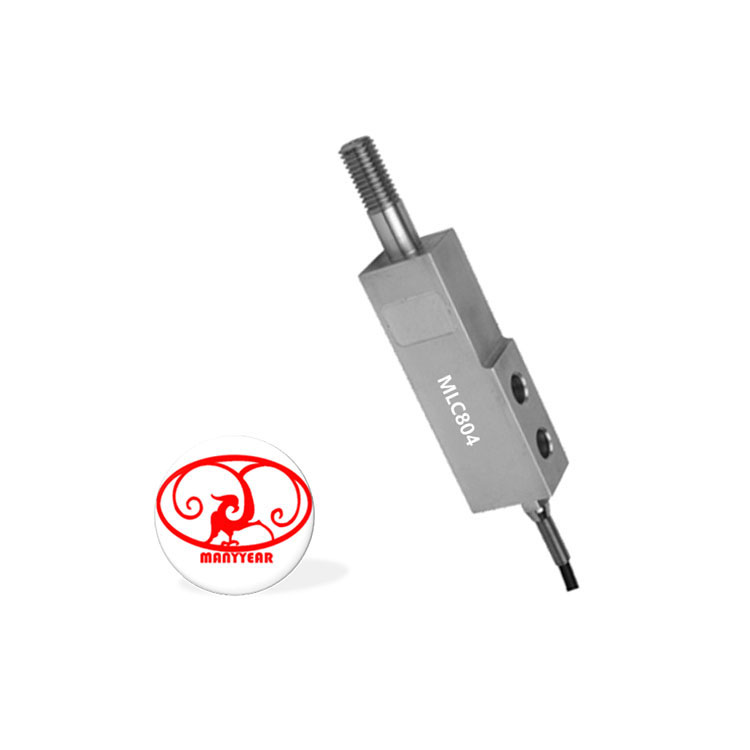

Product Picture Reference

MLC804 feeding scale load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
                                                               MLC804 feeding scale load cell

Model:MLC804

Category: shear beam load cell

Rated load: 50,100,200,300,500,750,1000kg

Safe overload:120%;   Ultimate overload: 150%

Material: alloy steel, stainless steel

Characteristic: platform scale load cell,feeding scale load cell,belt scale load cell,packing scale load cell,blending scale load cell

 Specification
Comprehensive error:0.02%FSOutput resistance:352±3Ω
Rated output:1.8±0.003&3±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+55ºC
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:400±5ΩDefend grade:IP67&IP68

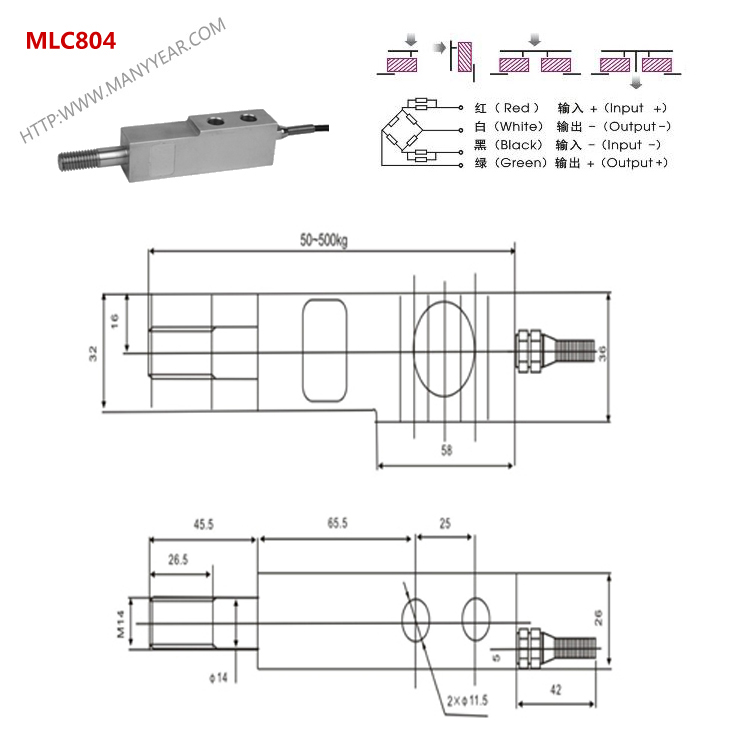

Product Dimension

MLC804 feeding scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC804 feeding scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC804 feeding scale load cell-MANYYEAR TECHNOLOGYMLC804 feeding scale load cell-MANYYEAR TECHNOLOGYMLC804 feeding scale load cell-MANYYEAR TECHNOLOGY
