MLC803X platform scale weight sensor

2021/11/15 MLC800 Shear Beam Load Cell Weighing Load Cell 3687 0

platform scale weight sensor,feeding scale weight sensor,forklift scale weight sensor,packing scale weight sensor

Model: MLC803X
Category: Shear beam load cell
Rated load: 0.5-2ton, 2.5-5ton
Safe overload:120%; Ultimate overload: 150%
Material: alloy steel, stainless steel
Characteristic: platform scale weight sensor,feeding scale weight sensor,forklift scale weight sensor,packing scale weight sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

产品介绍产品

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

                                                               MLC803X platform scale weight sensor

Model: MLC803X Category: Shear beam load cell Rated load: 0.5-2ton, 2.5-5ton Safe overload:120%;Ultimate overload: 150% Material: alloy steel, stainless steel Characteristic: platform scale weight sensor,feeding scale weight sensor,forklift scale weight sensor,packing scale weight sensor

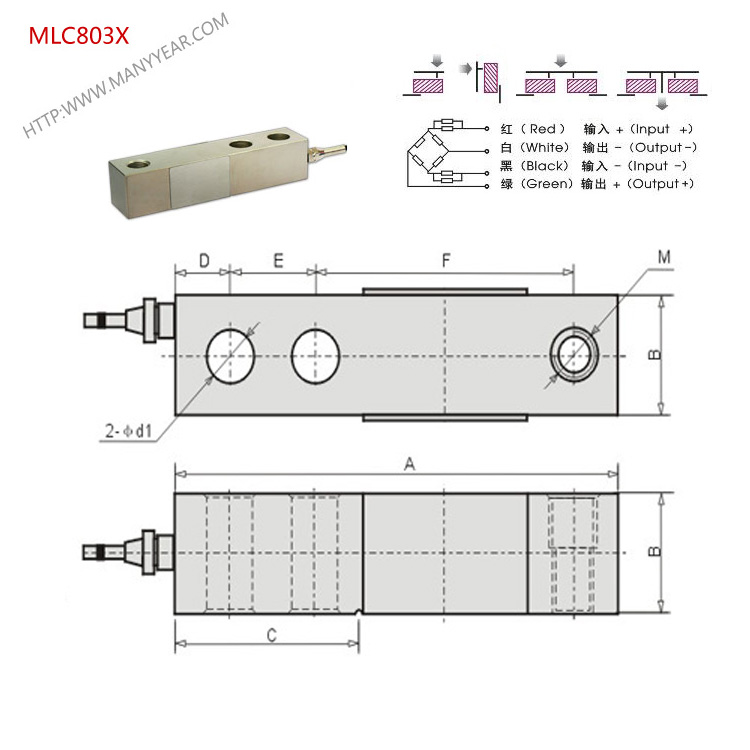

Dimension
Load range	A	B		C	D		E	F		Φd1	M
0.5-2ton	130	31.8		54.5	16.1		25	77.2		Φ13	M12x1.75
2.5-5ton	172	38		74.5	19.7		38	95.2		Φ21	M20x2.5
Specification
Comprehensive error:			0.02%FS			Output resistance:			350±3Ω
Rated output:			3±0.003mV/V			Insulation resistance:			≥5000MΩ(100VDC)
Non-linearity:			0.03%FS			Excitation voltage:			9~12VDC
Hysteresis:			0.03%FS			Compensated temp:			-10~+40ºC
Repeatability:			0.02%FS			Use temperature:			-20~+55ºC
Creep:			0.02%FS/10Min			Temp effect on zero:			0.03%FS/10ºC
Zero balance:			±1%FS			Temp effect on span:			0.02%FS/10ºC
Input resistance:			350±5Ω			Defend grade:			IP66

Product Dimension

Force Structure & Assembly Reference
