MLC720- tension force sensor load cell

Model: MLC720
Catalogue: Micro load cell
Rated load: 200kg
Safe overload: 150%
Ultimate overload: 200%
Material: alloy aluminum
Application: tension test, force test

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

Product Picture Reference

MLC672 single point aluminium alloy weight sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC720- tension force sensor load cell

Model: MLC720 Catalogue: Micro load cell Rated load: 200kg Safe overload: 150% Ultimate overload: 200% Material: alloy aluminum Application: tension test, force test

Specification
Comprehensive error:	0.02%FS	Output resistance:	350±3Ω
Rated output:	2±0.01mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.02%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.02%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.01%FS	Use temperature:	-20~+60ºC
Creep:	0.02%FS/10Min	Temp effect on zero:	0.02%FS/10ºC
Zero balance:	±2%FS	Temp effect on span:	0.02%FS/10ºC
Input resistance:	405±10Ω	Defend grade:	IP65

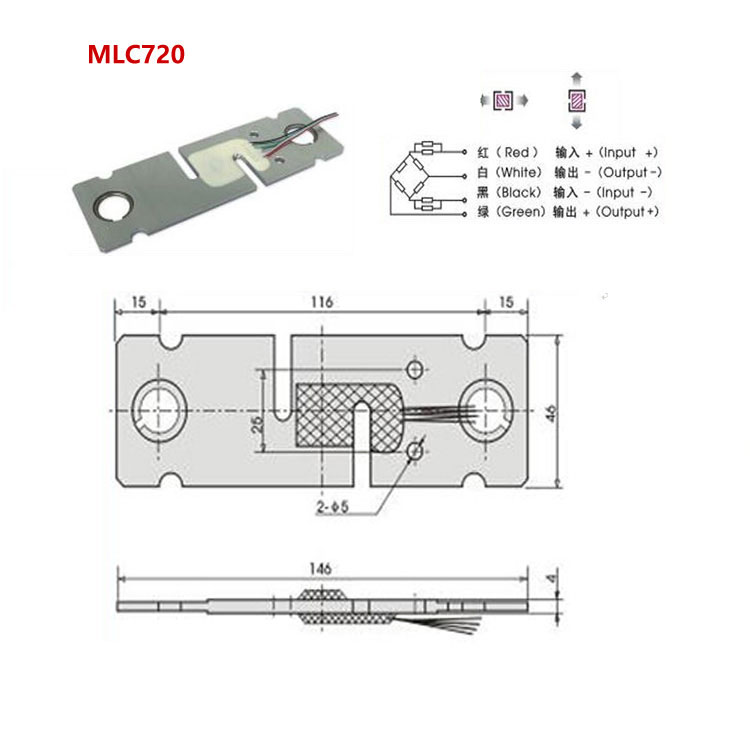

Product Dimension

MLC720- tension force sensor load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC720- tension force sensor load cell-MANYYEAR TECHNOLOGY

Product Application

weighing solution-cinema seats management system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
wireless truck weighing system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
seat weighing system solution
Bus seat weighing solution is applicable to bus seat weighing and counting control.
