MLC707B-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg

Model: MLC707B
Product Category: Micro Load Cell
Range: 10~40kg
Size: 50*20*2.5mm
Material: alloy steel
Application: Luggage scale, micro force measurement, robot force measurement, robot arm force measurement, force switch, automation equipment

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

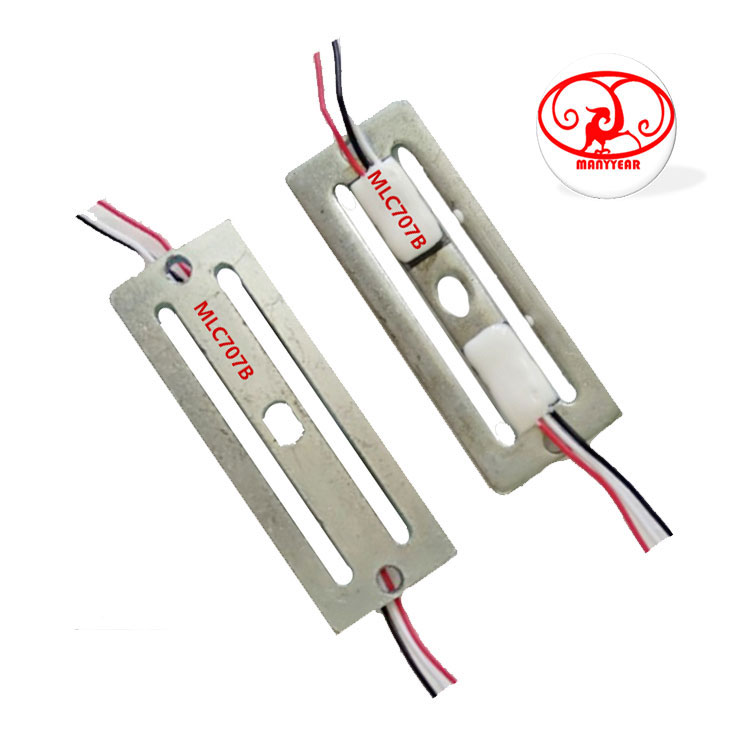

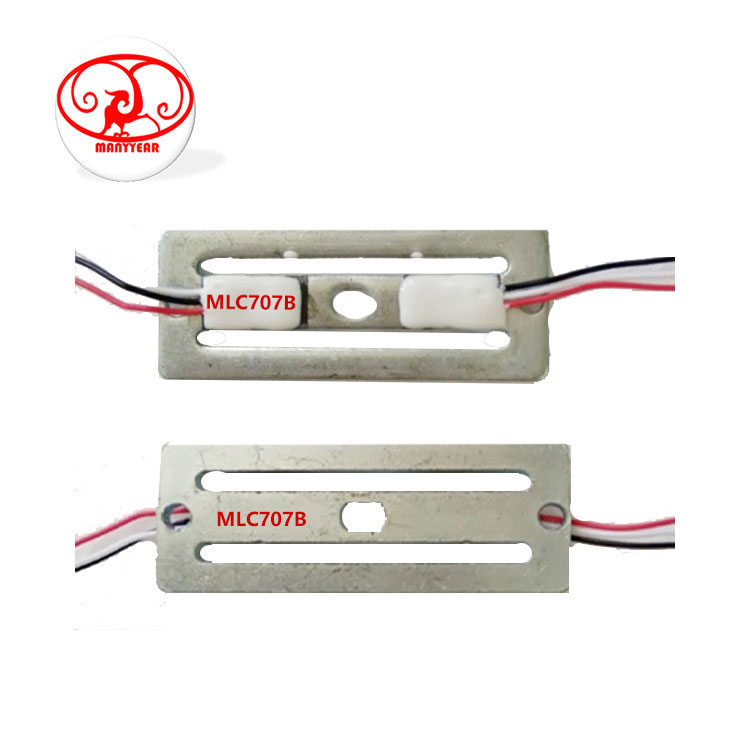

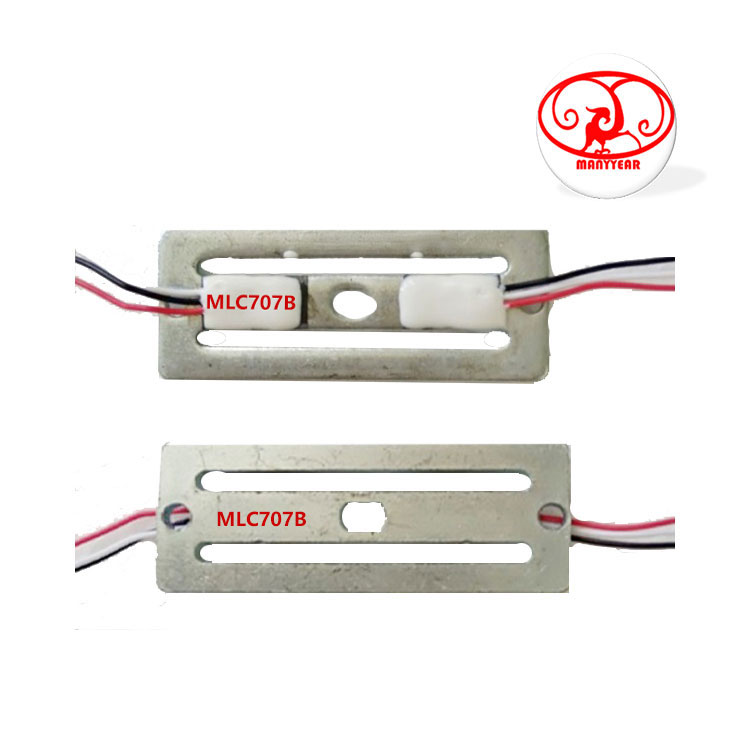

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC707B-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg

MLC707B-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg Model: MLC707B Product Category: Micro Load Cell Range: 10~40kg Size: 50202.5mm Material: alloy steel Application: Luggage scale, micro force measurement, robot force measurement, robot arm force measurement, force switch, automation equipment

Specification
Comprehensive error:	0.3%FS	Output resistance:	1000±10Ω
Rated output:	1.5±0.2mV/V	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.2%FS	Excitation voltage:	3~12VDC
Hysteresis:	0.1%FS	Compensated temp:	-10~+60ºC
Repeatability:	0.2%FS	Use temperature:	-0~+40ºC
Creep:	0.1%FS/3Min	Temp effect on zero:	0.3%FS/10ºC
Zero balance:	1±0.3%FS	Temp effect on span:	0.3%FS/10ºC
Input resistance:	1000±10Ω	Defend grade:	IP66

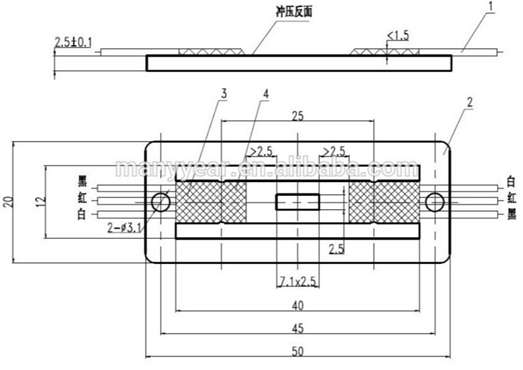

Product Dimension

Force Structure & Assembly Reference

Product Application
