MLC646B platform scale load cell

parallel beam load cell, single point load cell, platform scale load cell, pricing scale load cell, electronic scale load cell

Model: MLC646B
Category: Single point load cell
Range: 100kg, 150kg, 200kg, 300kg, 350kg, 500kg
Dimension: 150*40*40mm
Material: alloy aluminum
Characteristic: platform scale load cell,packing scale load cell,batching scale load cell,checkweigher load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

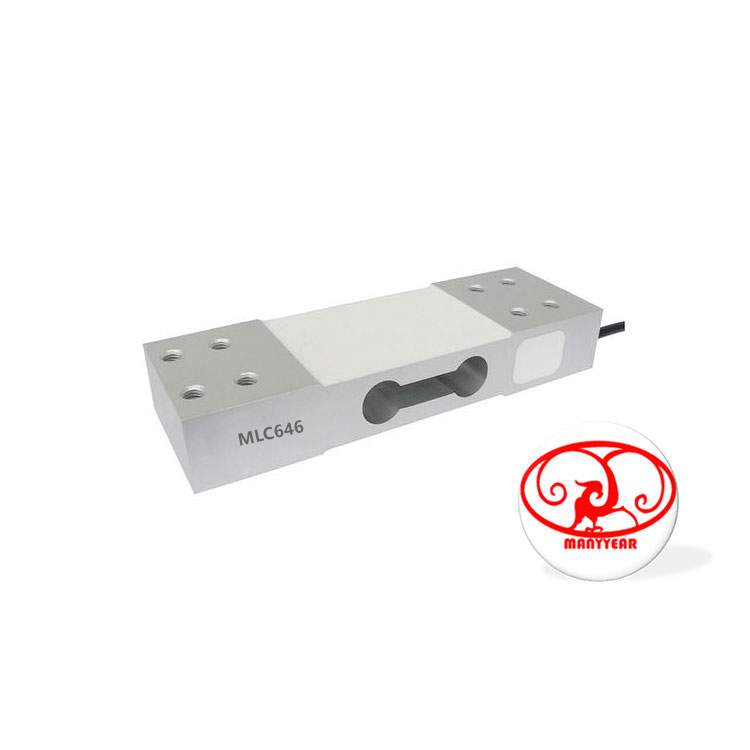

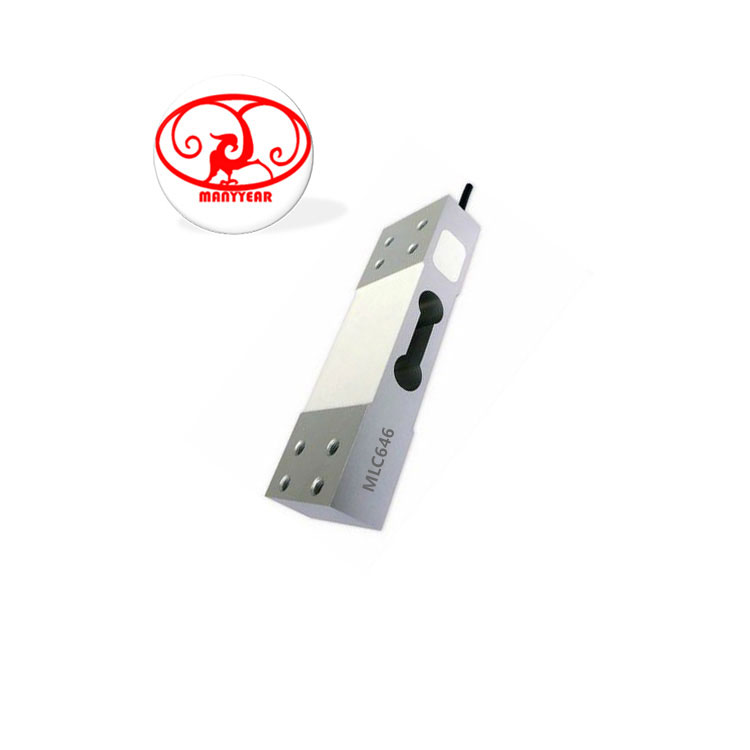

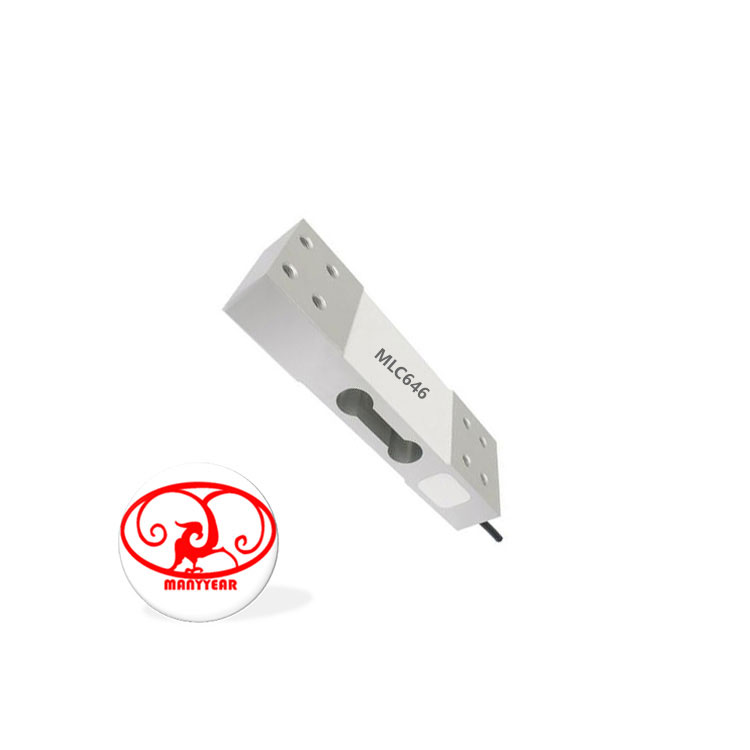

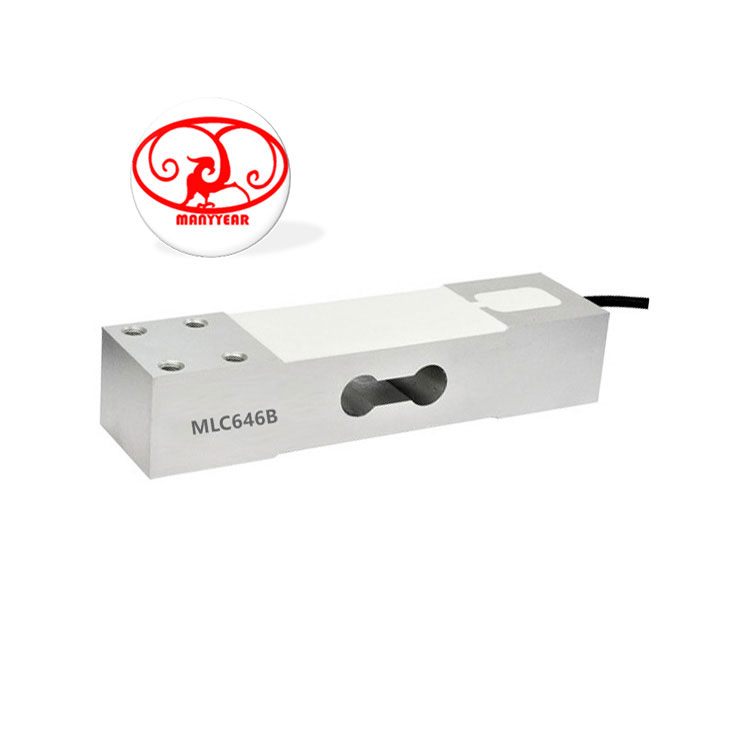

Product Picture Reference

MLC646B platform scale load cell-MANYYEAR TECHNOLOGY

MLC646B platform scale load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC646B platform scale load cell

Model: MLC646B
Category: Single point load cell
Range: 100kg, 150kg, 200kg, 300kg, 350kg, 500kg
Dimension: 150*40*40mm
Material: alloy aluminum
Characteristic: platform scale load cell,packing scale load cell,batching scale load cell,checkweigher load cell
               Specification
Comprehensive error:0.02%FSOutput resistance:350±3Ω
Rated output:2±0.01mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.02%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+60ºC
Creep:0.027%FS/10MinTemp effect on zero: 0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

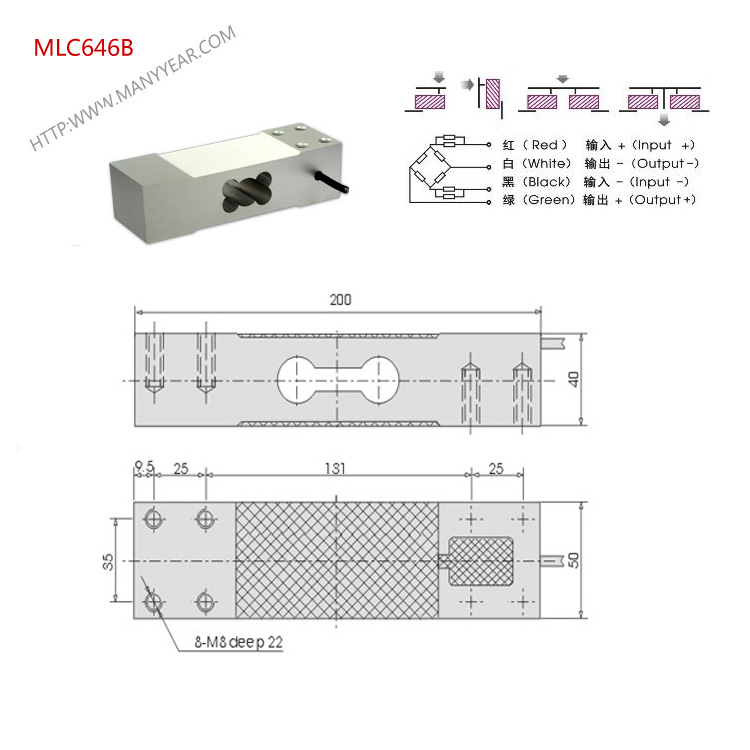

Product Dimension

MLC646B platform scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC646B platform scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC646B platform scale load cell-MANYYEAR TECHNOLOGY
