MLC639HG jewelry scale load cell MLC639HG jewelry scale load cell
MLC639HG jewelry scale load cell
MLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGY
MLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGY
MLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGY
MLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGY

MLC639HG jewelry scale load cell

MLC600-500G Weighing Load Cell 3636 0

kitchen scale load cell, electronic balance load cell, jewelry scale load cell, micro load cell, miniature load cell

Model: MLC639HG
Category: Micro load cell
Rated load: 50g,100g,500g,750g
Dimension:35*12*6mm
Material: alloy aluminum
Safe overload:150%; Ultimate overload: 200%
Characteristic:kitchen scale load cell, electronic balance load cell, jewelry scale load cell, micro load cell, miniature load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

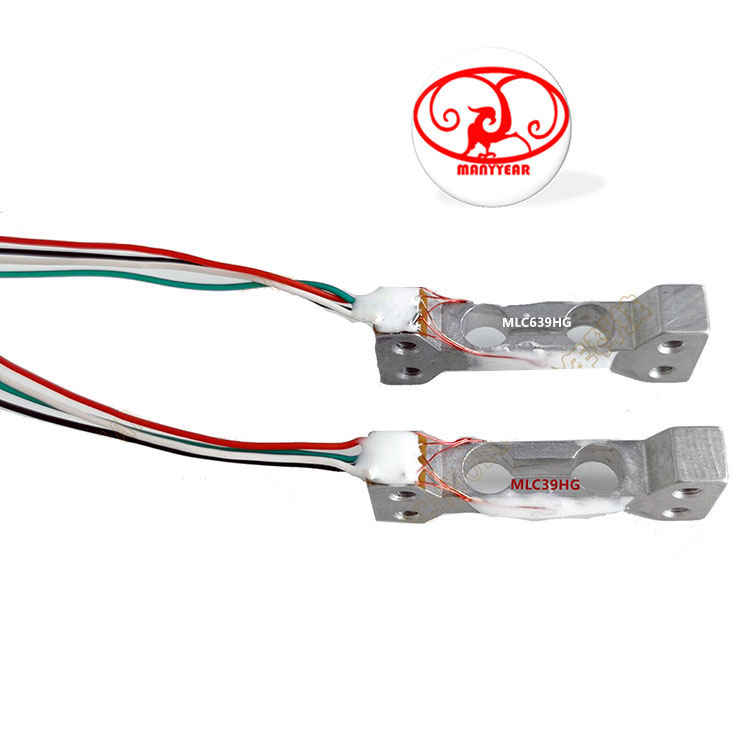

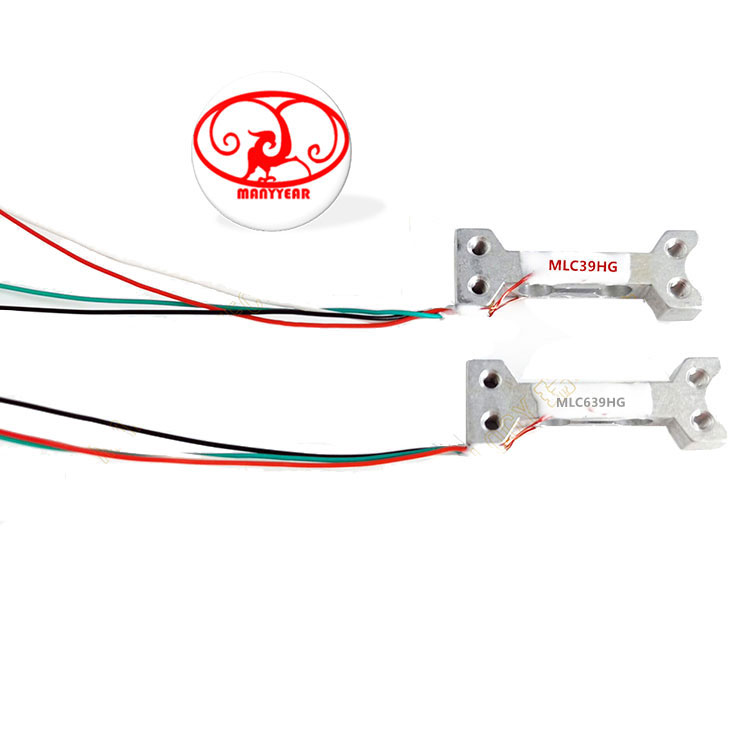

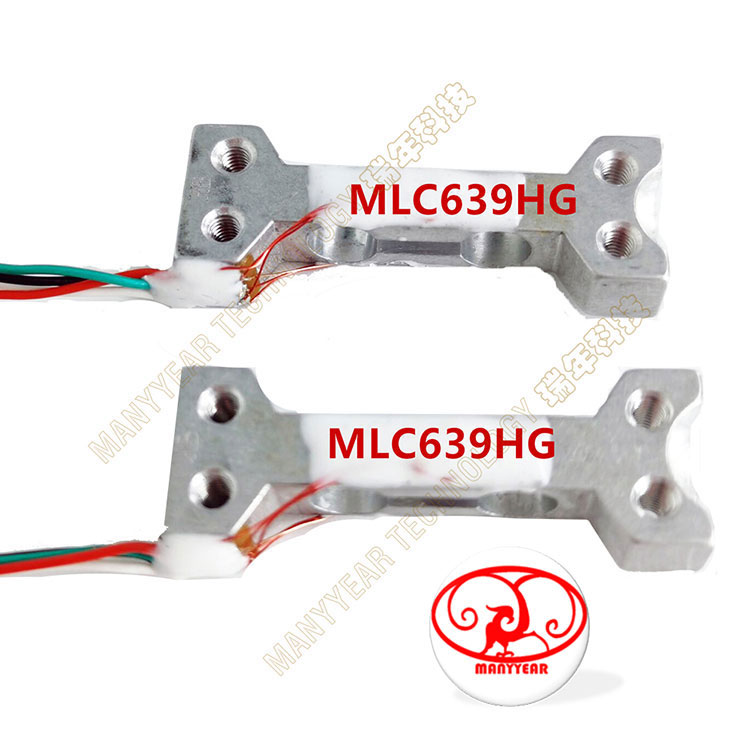

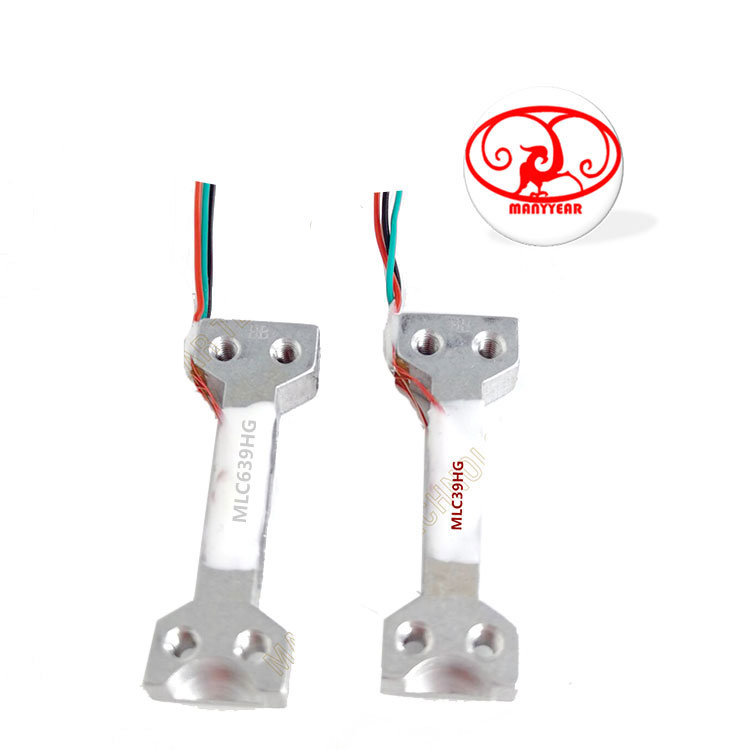

Product Picture Reference



MLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC639HG jewelry scale load cell

Model: MLC639HG

Category: Micro load cell

Rated load: 50g,100g,500g,750g

Dimension:35*12*6mm

Material: alloy aluminum

Safe overload:150%; Ultimate overload: 200%

Characteristic:kitchen scale load cell, electronic balance load cell, jewelry scale load cell, micro load cell, miniature load cell

Specification
Comprehensive error:0.05FSOutput resistance:1000±10Ω
Rated output:0.7±0.15mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:5~10VDC
Hysteresis:0.05%FSCompensated temp:-10~+40ºC
Repeatability:0.05%FSUse temperature:-20~+55ºC
Creep:0.05%FS/10MinTemp effect on zero:0.05%FS/10ºC
Zero balance:±0.1%FSTemp effect on span:0.05%FS/10ºC
Input resistance:1090±10ΩDefend grade:IP66

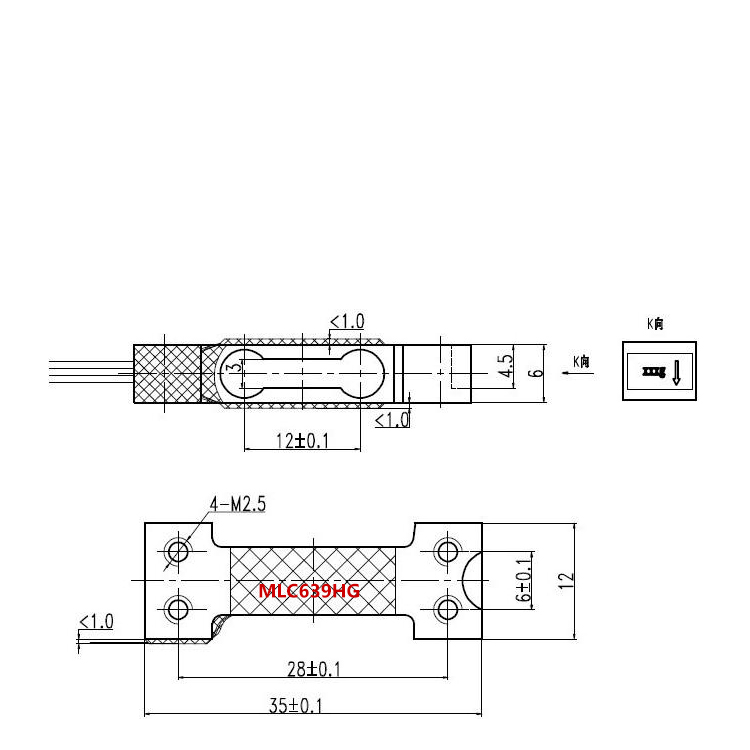

Product Dimension

MLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGYMLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGYMLC639HG jewelry scale load cell-MANYYEAR TECHNOLOGY
