MLC611NTC high temperature and low temperature weighing load cell with temperature compensation MLC611NTC high temperature and low temperature weighing load cell with temperature compensation
MLC611NTC high temperature and low temperature weighing load cell with temperature compensation
MLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGY
MLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGY
MLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGY
MLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGY
MLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGY

MLC611NTC high temperature and low temperature weighing load cell with temperature compensation

MLC600-20kg Weighing Load Cell 2817 0

MLC611NTC high temperature and low temperature weighing load cell with temperature compensation

Model: MLC611NTC
Category: Micro load cell
Range: 1~30kg
Dimension: 80*12.7*12.7mm
Material: alloy aluminum
Application:high temperature load cell, low temperature load cell, handle scale load cell, kitchen scale load cell, micro load cell,Vending machine load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

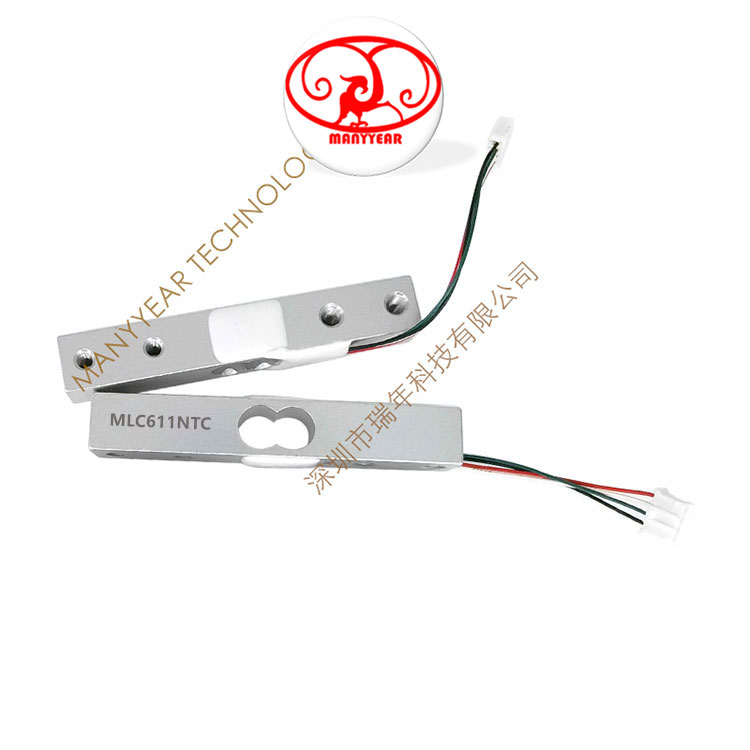

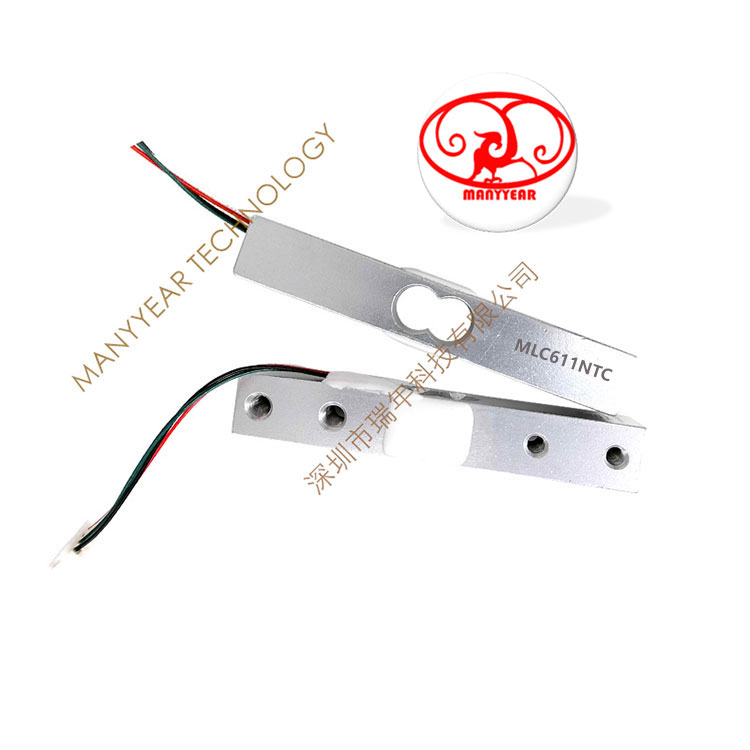

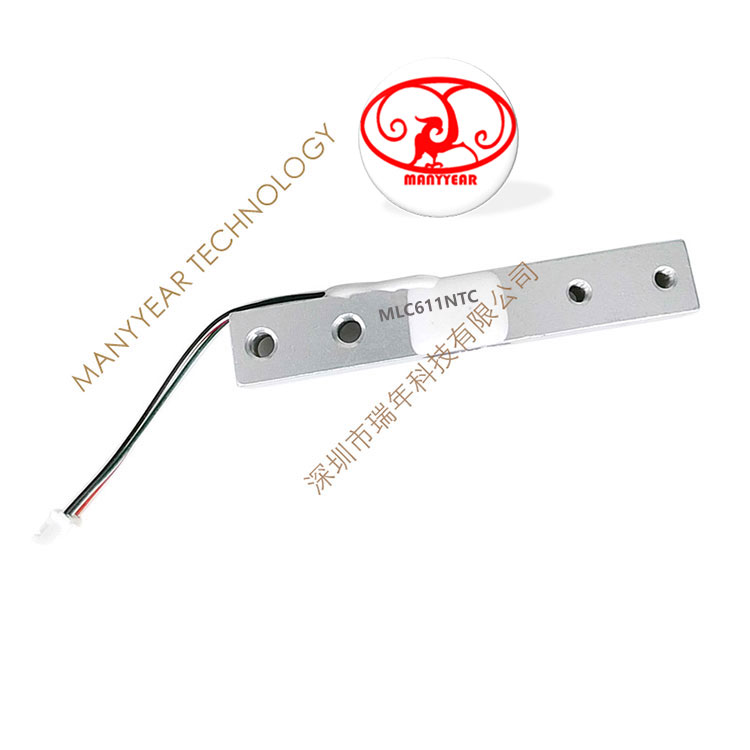

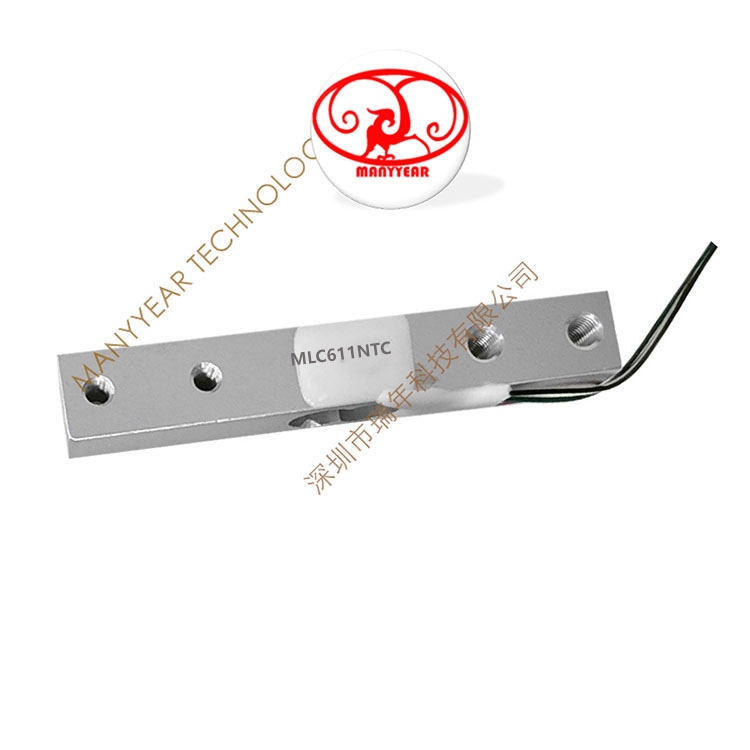

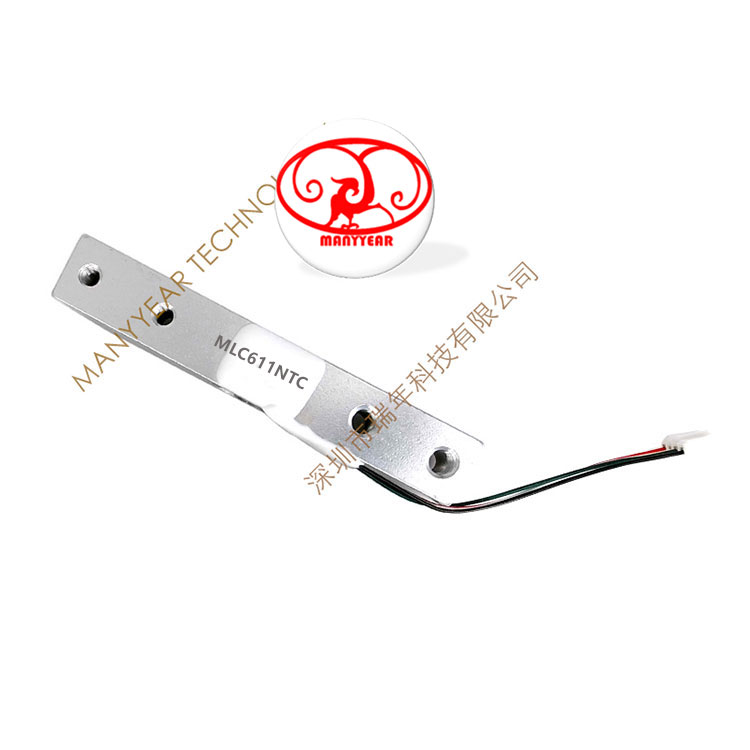

Product Picture Reference



MLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC611NTC high temperature and low temperature weighing load cell with temperature compensation

Model: MLC611NTC
Category: Micro load cell
Range: 1~30kg
Dimension: 80*12.7*12.7mm
Material: alloy aluminum
Application:high temperature load cell, low temperature load cell, handle scale load cell, kitchen scale load cell, micro load cell,Vending machine load cell
Specification
Comprehensive error:0.05%FSOutput resistance:1000±10Ω
Rated output:1±0.15mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:3~12VDC
Hysteresis:0.05%FSCompensated temp:-20~+40ºC~100C
Repeatability:0.05%FSUse temperature:-40~+55ºC~105C
Creep:0.05%FS/10MinTemp effect on zero:0.5%FS/10ºC
Zero balance:±0.1mv/vTemp effect on span:0.05%FS/10ºC
Input resistance:1000±10ΩDefend grade:IP66

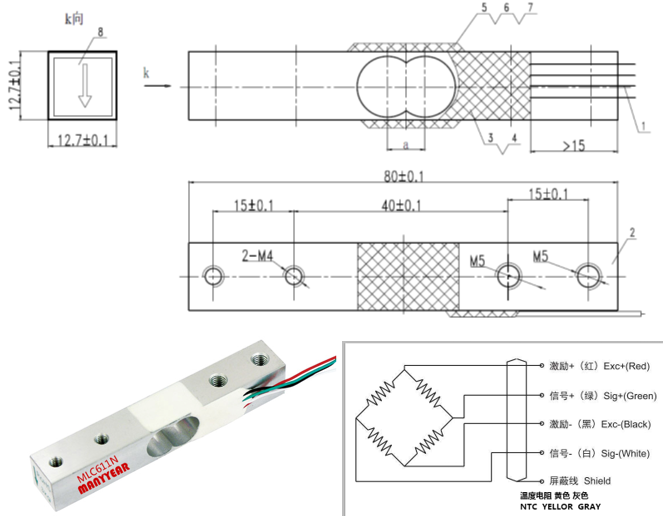

Product Dimension

MLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGY

MLC600 parallel beam load cell force structure

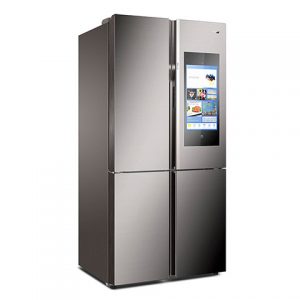

Product Application

MLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGYMLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGYMLC611NTC high temperature and low temperature weighing load cell with temperature compensation-MANYYEAR TECHNOLOGY
