MLC602A postal scale load cell

2021/11/12 MLC600-100KG Weighing Load Cell 3239 0

electronic scale load cell, platform scale load cell, kitchen scale load cell, postal scale load cell

Model: MLC602A
Category: Single point load cell
Range:3kg,5kg,6kg,10kg,15kg,20kg,30kg,40kg,50kg,60kg,100kg,120kg
Dimension: 88*22*30mm
Material: alloy aluminum
Characteristic: electronic scale load cell, platform scale load cell, kitchen scale load cell, postal scale load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

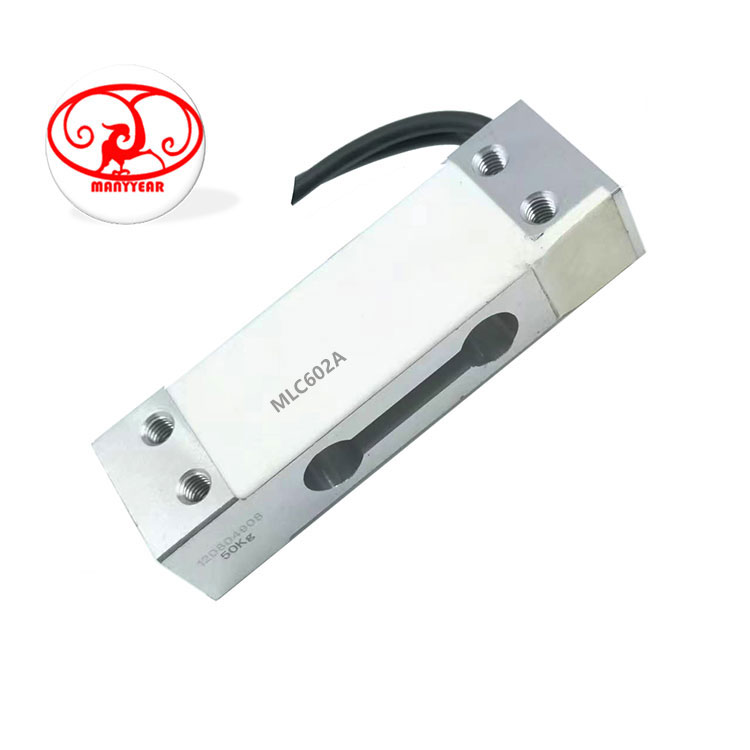

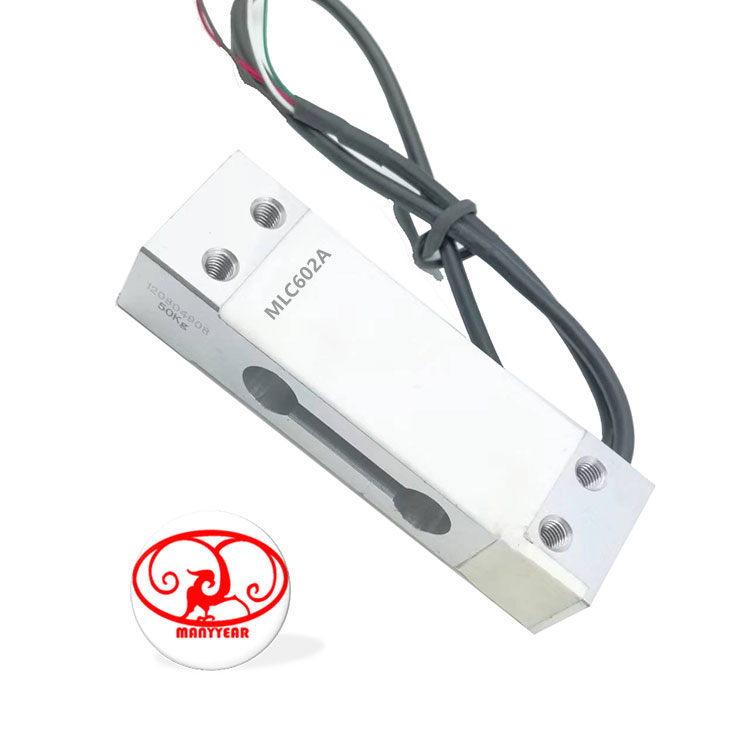

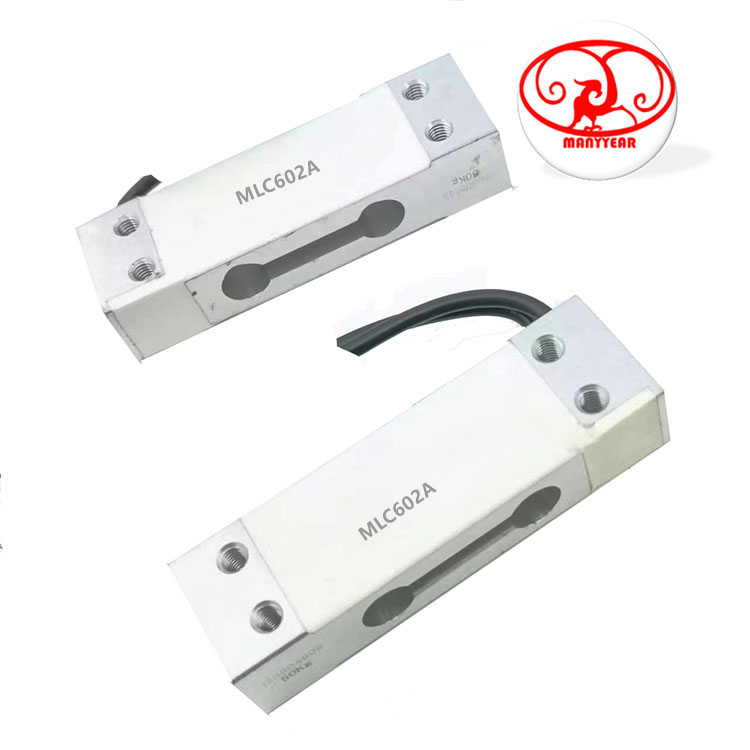

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC602A postal scale load cell

Model: MLC602A Rated load: 3, 5, 6, 10, 15, 20, 30, 40, 50, 60, 100kg Dimension:1003022mm Safe overload:120% Ultimate overload: 150% Material: alloy aluminum Characteristic: electronic scale load cell, platform scale load cell, kitchen scale load cell, postal scale load cell

Specification
Comprehensive error:	0.017%FS	Output resistance:	405±10Ω
Rated output:	2±0.003mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.017%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.02%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.01%FS	Use temperature:	-20~+60ºC
Creep:	0.017%FS/30Min	Temp effect on zero:	0.03%FS/10ºC
Zero balance:	±0.1mv/v	Temp effect on span:	0.02%FS/10ºC
Input resistance:	405±10Ω	Defend grade:	IP65

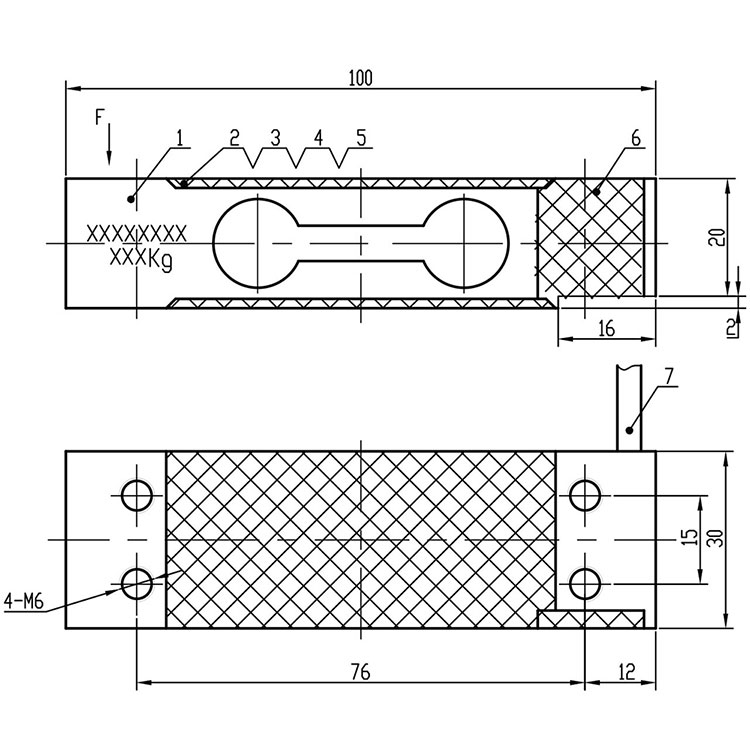

Product Dimension

Force Structure & Assembly Reference

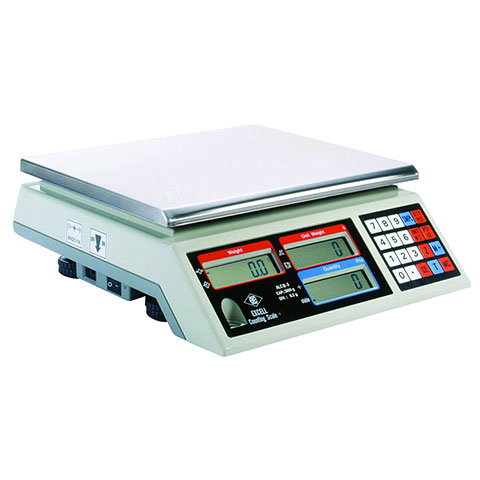

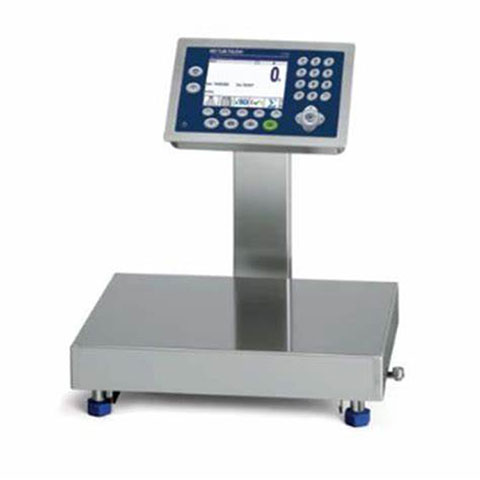

Product Application
