MLC5906W07 Multidirectional force sensor

Model: MLC5906W07
Category: Three component force measuring sensor
Range: 0-10KN
Size: Ø 80 * 50mm
Material: aluminum alloy, alloy steel, stainless steel
Applications: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, automation equipment and testing fields
Features: three-component force sensor, multi-component force sensor, three-way force sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC5906W03 Multidirectional force sensor

Model: MLC590A

Category: Multidirectional force sensor

Range: 0-100500N

Size: 70 * 70 * 18.5mm/120 * 120 * 30mm

Material: Aluminum alloy

Applications: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, automation equipment and testing fields

Features: three-component force sensor, multi-component force sensor, three-way force sensor

Features:

High stability
Can be installed in narrow spaces
Non standard customizable
Stable anti-interference signal
Select high-quality materials

·Widely used in automotive pressing, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, automation equipment and testing fields

Rated range	N	100-5000
Output sensitivity	mV/V	1.0-2.0
Nonlinear	%F.S.	2
lagging	%F.S.	0.3
Repeatability	%F.S.	0.1
Dimensional coupling error	%F.S.	0.1
Creep (30 minutes)	%F.S.	0.3
Zero point output	%F.S./10C	0.1
Zero temperature drift	%F.S./10℃	0.1
Temperature sensitivity drift	Hz	1k
Operating temperature range		合金钢／铝合金
Input resistance	Q	700
Output resistance	MQ/100V DC	≥5000
insulation resistance	V	5-15
Safety overload	C	-20-75
Using voltage	%R. C.	150
Cable specifications	%R.C.	200
Ultimate cable tension	m	≤500N:1根线 3*5m
Ultimate cable tension	m	>500N:3根线 3*5m
Rated range		可选

Product Dimension

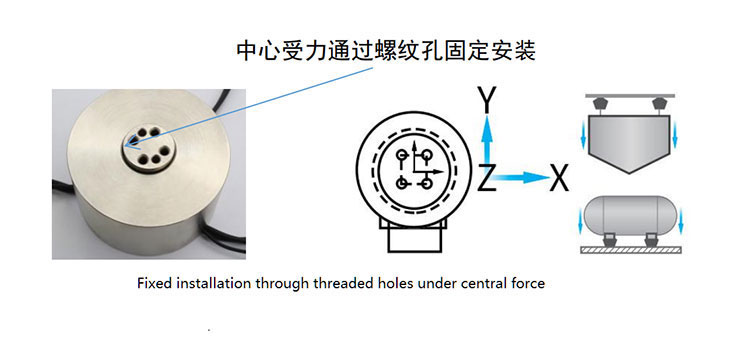

Force Structure & Assembly Reference
