MLC5205B Precision Rotary Torque transducer MLC5205B Precision Rotary Torque transducer
MLC5205B Precision Rotary Torque transducer
MLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGY
MLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGY
MLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGY
MLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGY

MLC5205B Precision Rotary Torque transducer

MLC5205B Precision Rotary Torque transducer

MODEL: MLC5205B
Category: Torque Sensor
Range: 5-5000N.m
Dimension: D185*30mm
Material: alloy steel
Apllication: dynamic torque measurement, railway locomotive power, car power, tractor power, aircraft power, ship power, mining machinery power, sewage treatment system


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

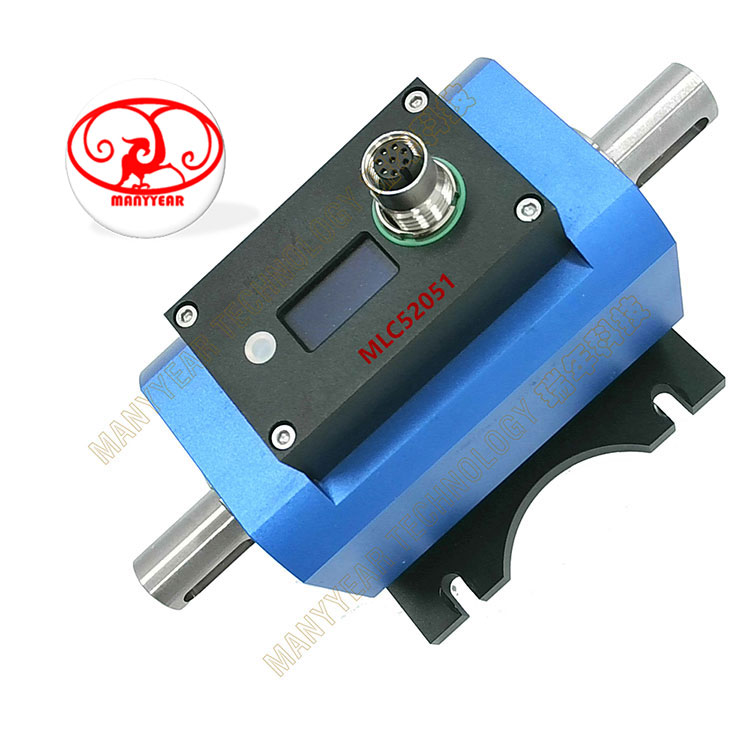

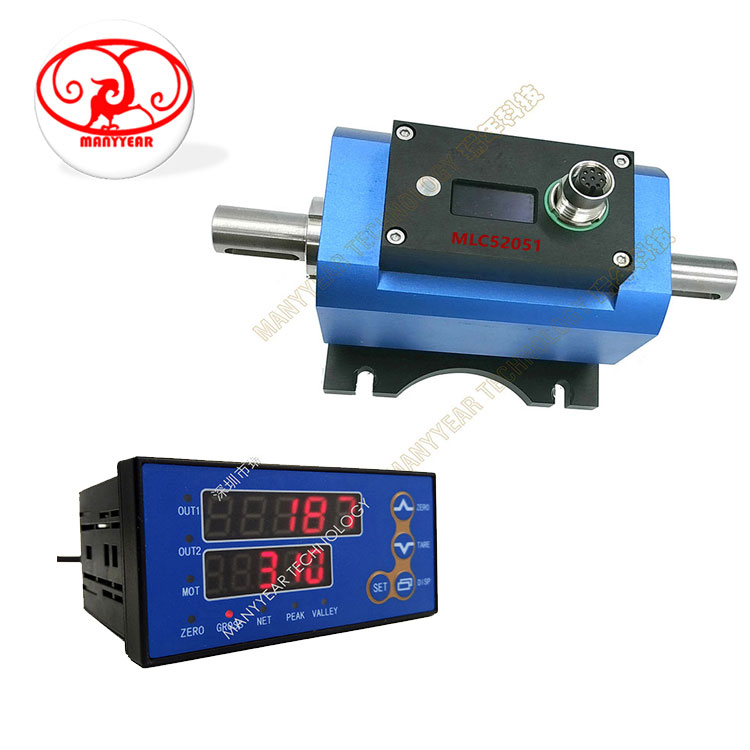

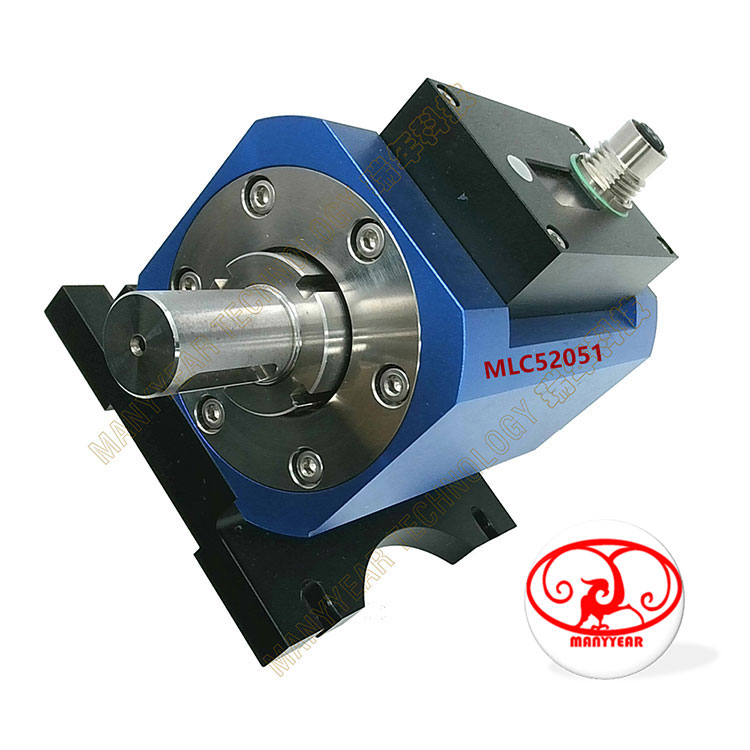

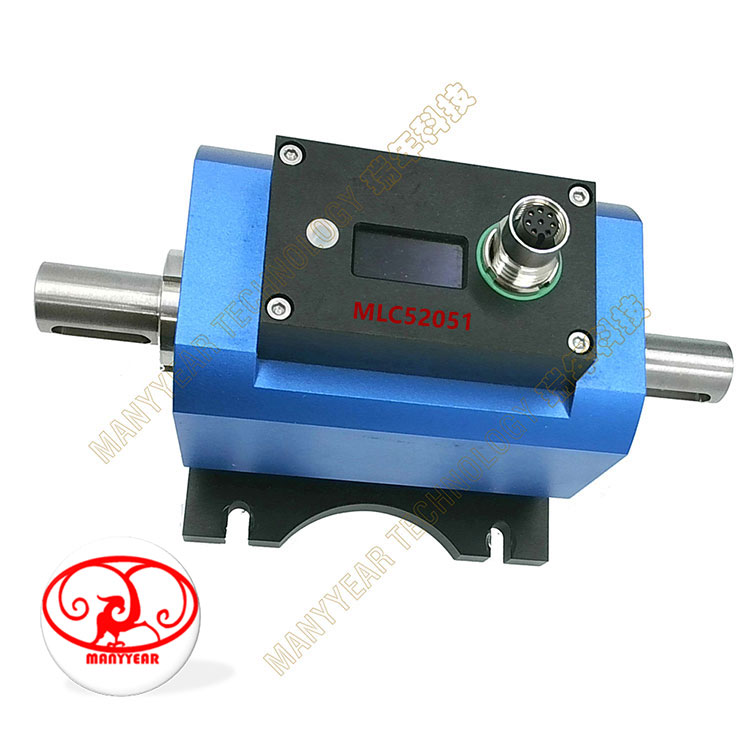

Product Picture Reference

MLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC5205B non - contact Dynamic torque sensor

Technology specification
range:5~ 5000NmResonant Frequency:1mS
Rated Output:10±5KHz, 4-20mA, 0±5VDC

0±10VDC, RS485/RS232

Electrical connections:6pin or 8pin
Precision±0.1,0.2%F.Soverload:200%F.S
Work temp.:-20 ~ 85℃Work voltage:12-30VDC
Compensated Temp.:-10 ~ 60℃Shaft Material:Stainless steel
Zero by temp.:0.02%Housing:Aluminum
Range by temp:0.02%Others:Customizabler

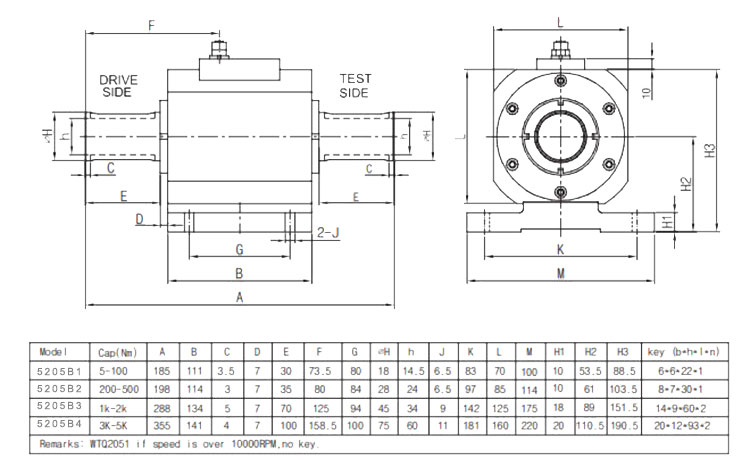

Product Dimension

 MLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGY

Product Application

MLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGYMLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGYMLC5205B Precision Rotary Torque transducer-MANYYEAR TECHNOLOGY



MANYYEAR TECHNOLOGY COMPANY LIMITED  | ADMIN@MANYYEAR.COM

Tagbicycle torque sensorMechanical torque sensorStatic torque sensorTorsion testing machine torque sensorTorsion wrench torque sensor The prev: The next:
