MLC507 – Through-shaft gasket type ring load cell 500kg

2024/06/19 Force Load Cell MLC500 Washer Force Sensor 3602 0

MLC507 – Through-shaft gasket type ring load cell 500kg

Model: MLC507
Category: Axial load cell
Rated load: 500, 1000, 2000, 3000, 5000kg
Material: alloy steel
Safe overload: 120% FS; ultimate overload: 150% FS
Size: D120*H30mm; Wire type: D5*5000mm
Features: Ring load cell, gasket load cell, axial force sensor, extrusion force sensor, preload force sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

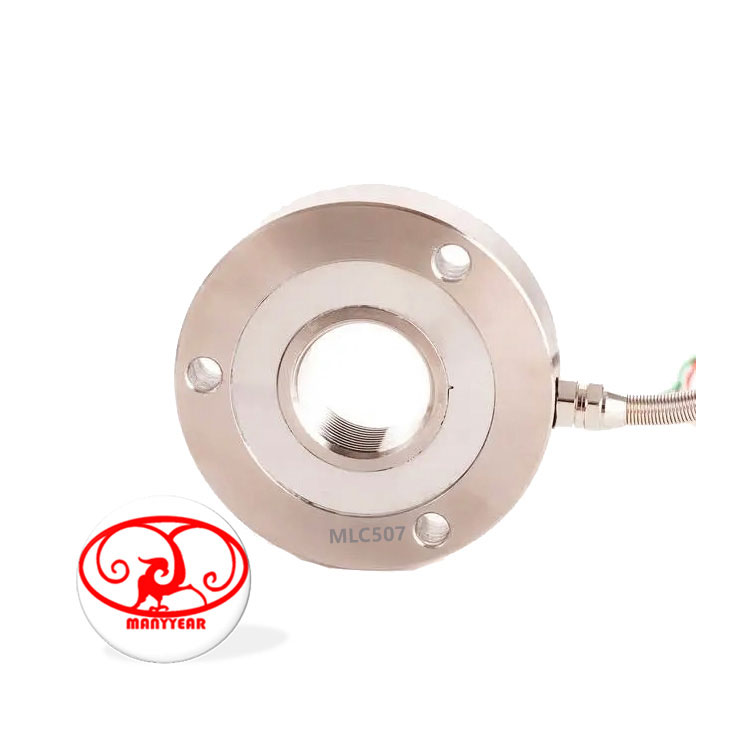

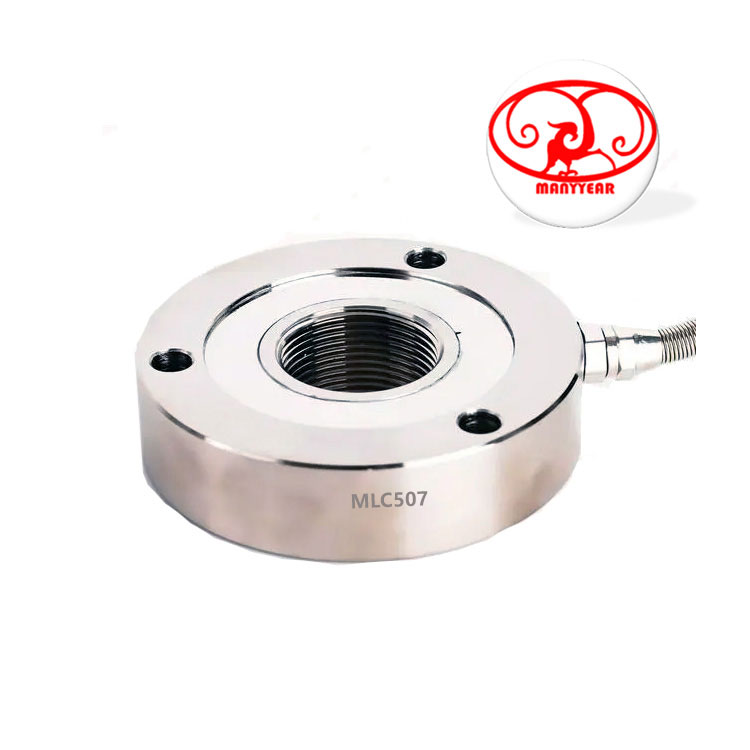

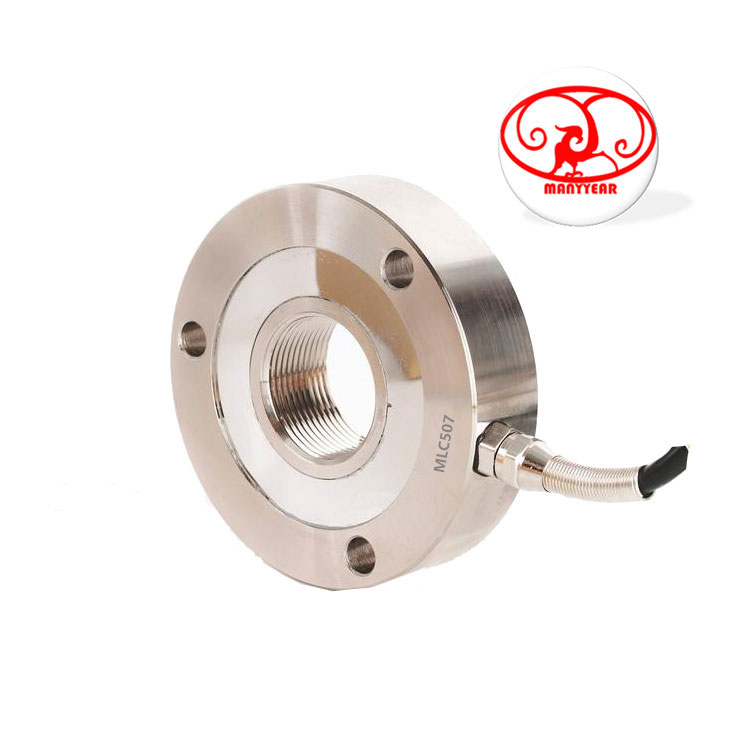

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

washer force sensor, Circle load cell, Ring gasket load cell, compression load cell, Axial force sensor.

MLC507 - Through-shaft gasket type ring load cell 500kg Model: MLC507 Category: Axial load cell Rated load: 500, 1000, 2000, 3000, 5000kg Material: alloy steel Safe overload: 120% FS; ultimate overload: 150% FS Size: D120H30mm; Wire type: D55000mm Features: Ring load cell, gasket load cell, axial force sensor, extrusion force sensor, preload force sensor

Specification
Comprehensive error:	0.05%FS	Output resistance:	352±5Ω
Rated output:	1.0±0.002mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.02%FS	Excitation voltage:	9~15VDC
Hysteresis:	0.02%FS	Compensated temp:	-10~+40℃
Repeatability:	0.02%FS	Use temperature:	-40~+80℃
Creep:	0.02%FS/10Min	Temp effect on zero:	0.03%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.02%FS/10℃
Input resistance:	380±5Ω	Defend grade:	IP68

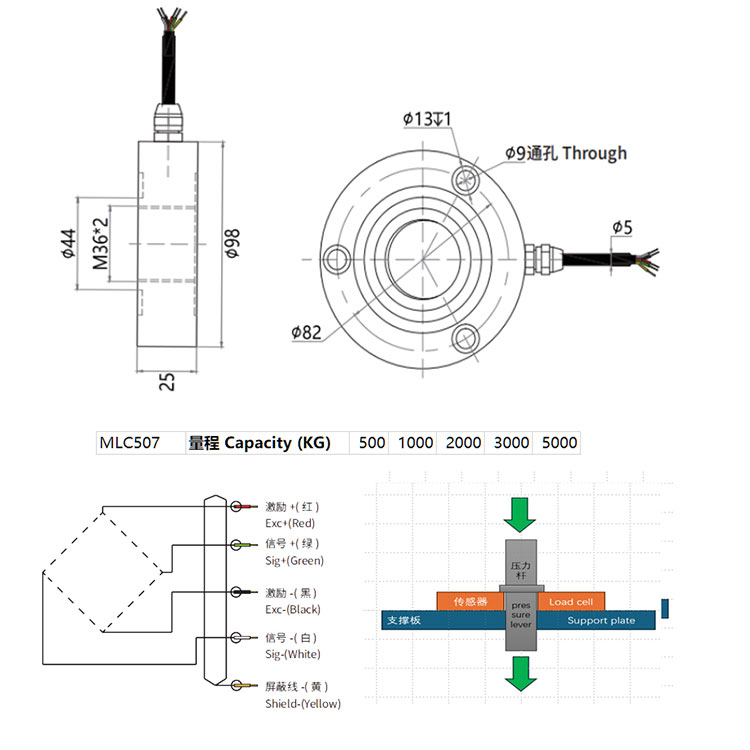

Product Dimension

Force Structure & Assembly Reference
