MLC401E Compression force load cell 400T

2024/06/19 Force Load Cell MLC400 Column Load Cell 3530 0

MLC401E Hydraulic Press Forging Press Large Range Column Weighing Sensor 300t

Model: MLC401E
Category: Column weighing sensor
Measurement range: 20t, 25t, 30t, 40t, 50t, 60t, 70t, 100t, 150t, 200t, 300t, 400t
Size: 76 * 82.6mm; 125 * 142 millimeters; 223 * 250mm
Materials: alloy steel, stainless steel
Application: Automobile scale, electronic floor scale, hydraulic press, hydraulic press, dynamometer, large-scale weighing sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Product Parameters

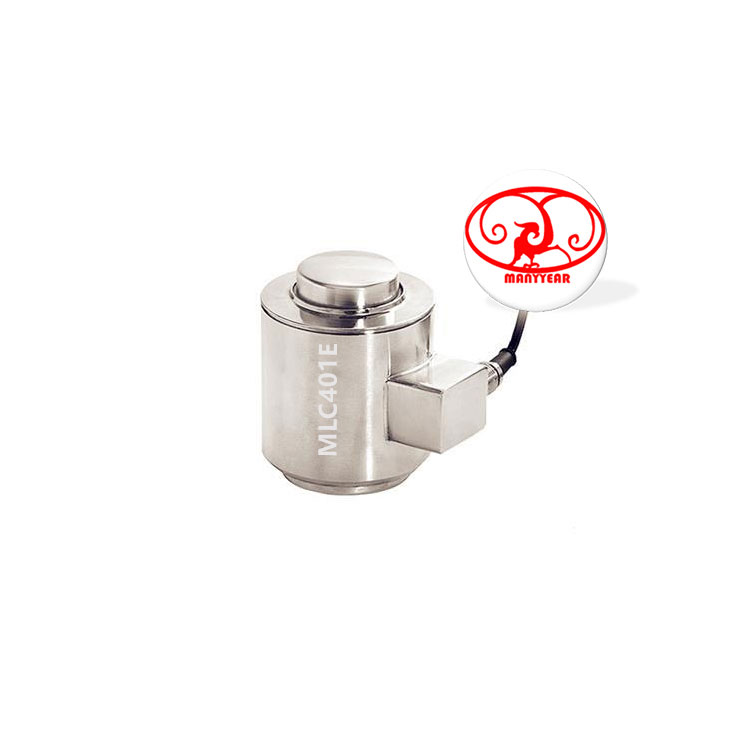

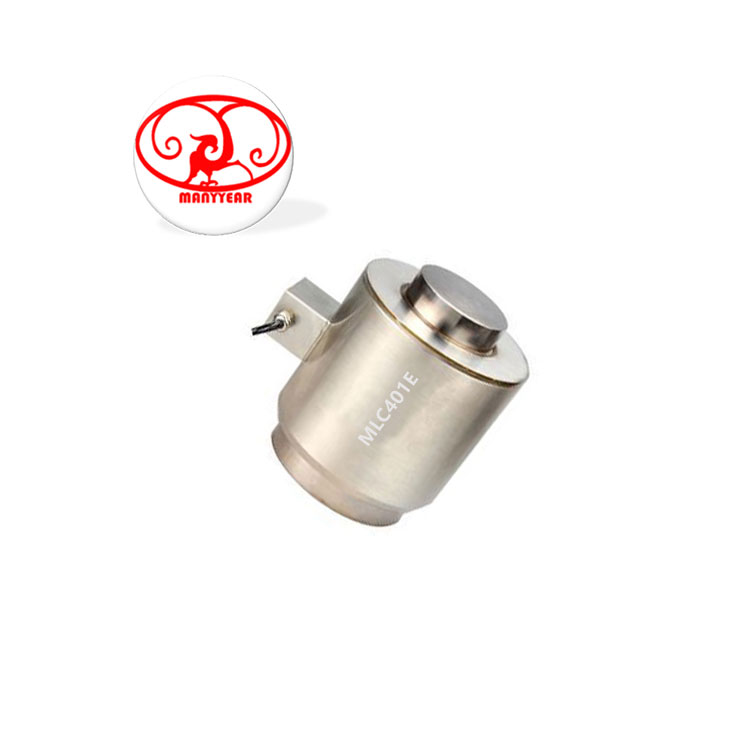

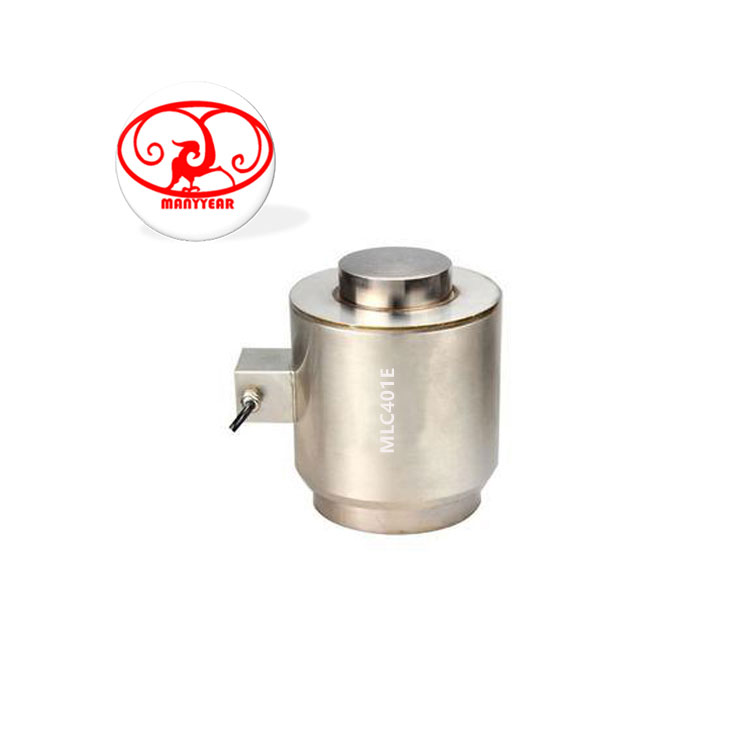

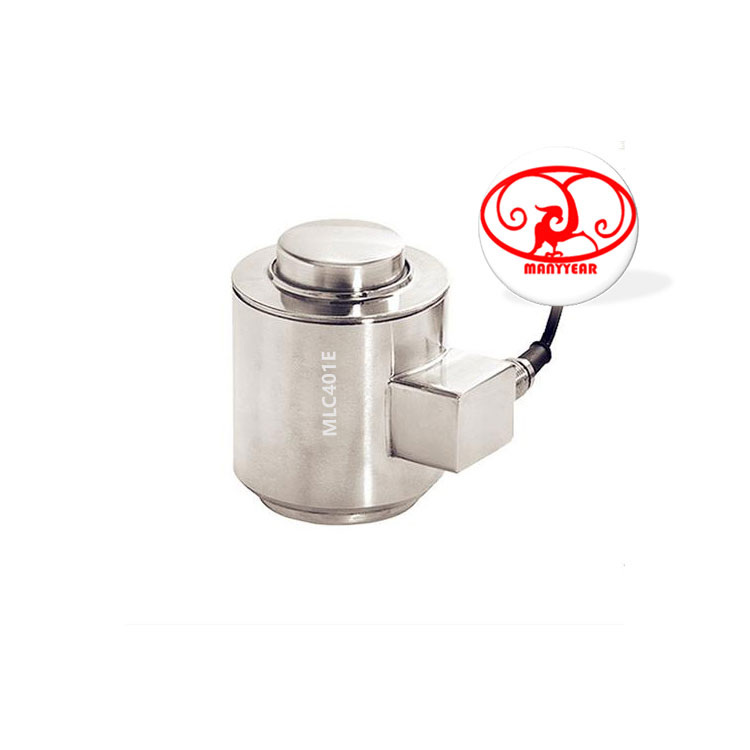

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC401L Railroad scale column type load cell

Model: MLC401L Category: Column load cell Measuring range: 1t, 2t, 3t, 5t, 10t, 15t, 20t Size: 8864mm;10676mm;130*88mm Material: alloy steel, stainless steel Applications: Hydraulic dynamometer, pressure test, large range load cell, oil pressure dynamometer, electronic floor scale, truck scale

Specification
Comprehensive error:	0.02%FS	Output resistance:	700±10Ω
Rated output:	1.5±0.002mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.02%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.02%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.01%FS	Use temperature:	-40~+80ºC
Creep:	0.02%FS/10Min	Temp effect on zero:	0.017%FS/10ºC
Zero balance:	±1%FS	Temp effect on span:	0.014%FS/10ºC
Input resistance:	700±10Ω	Defend grade:	IP68

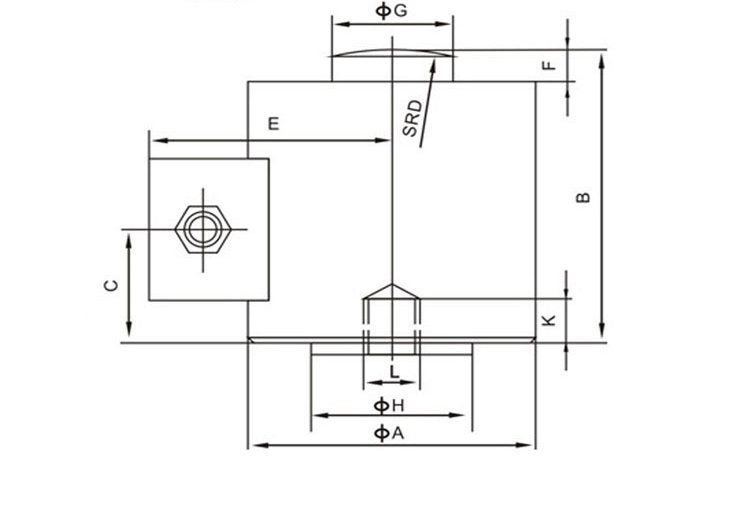

Product Dimension

Measuring range	A	B	C	D	E	F	G	H	K	L
20t	76	82.6	48	150	56	9	31.8	48	10	M12
25t	100	117	65	150	76	12	38	38	14	M20
30t	100	117	65	150	76	12	38	38	14	M20
40t	100	117	65	150	76	12	38	38	14	M20
50/60t	107	127	66	200	81	12.7	58	64	14	M20
70t	125	142	91	250	86.5	13	58	64	14	M20
100t	165	184	104	300	111.8	20	70	70	20	M20
150t	165	184	104	300	111.8	20	70	78	20	M20
200t	223	250	152	500	137.5	20	100	112	36	M24
300/400t	223	250	152	500	137.5	20	108	112	36	M24

Force Structure & Assembly Reference
