MLC323-Crane scale weighing load cell

2021/11/08 Force Load Cell MLC300 Tension Load Cells 2964 0

crane scale weighing load cell,tension force load cell, safety overload force load cell

Model: MLC323
Category: Tension load cell
Range: 3t,5t
Dimension: 229*58*50mm
Material: Alloy steel,stainless steel
Application: crane scale weighing load cell,tension force load cell, safety overload force load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

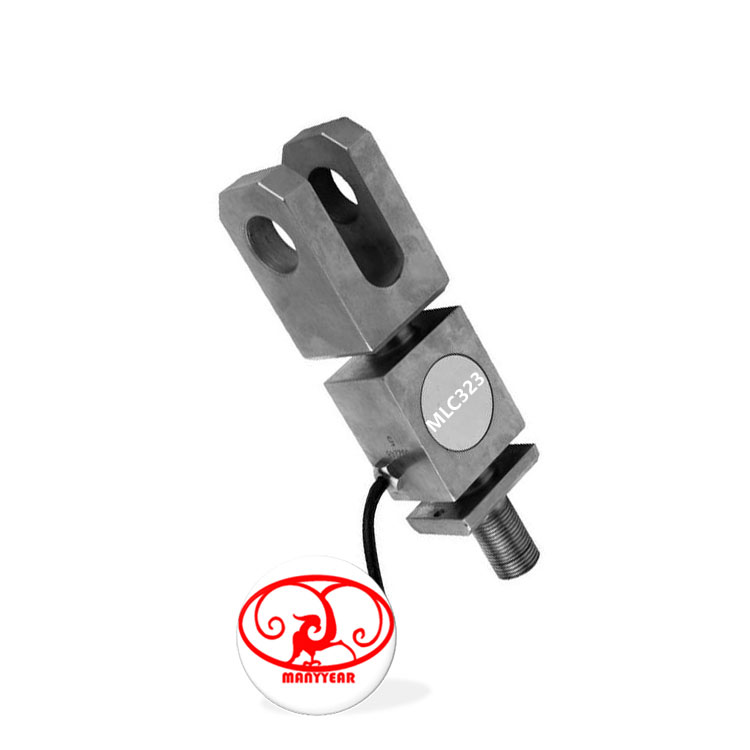

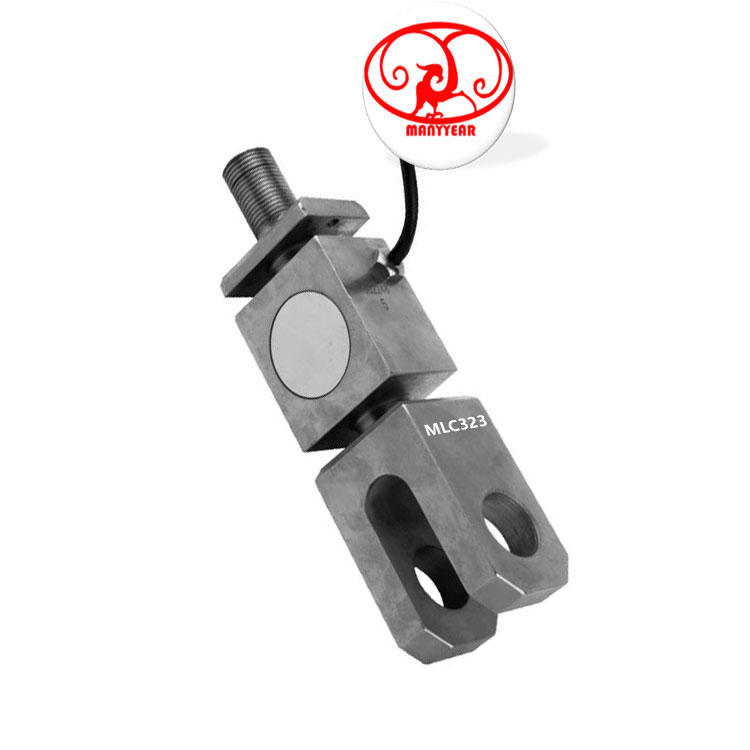

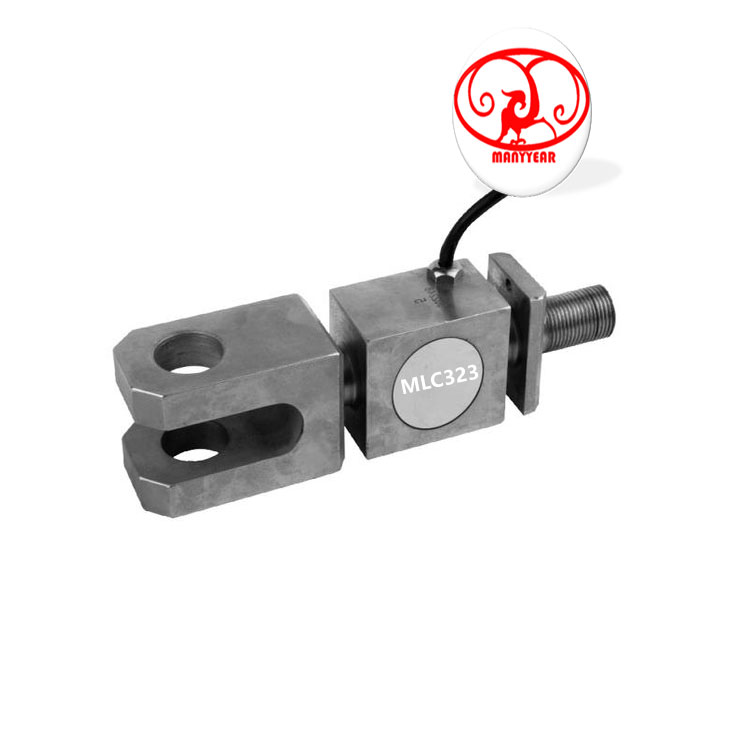

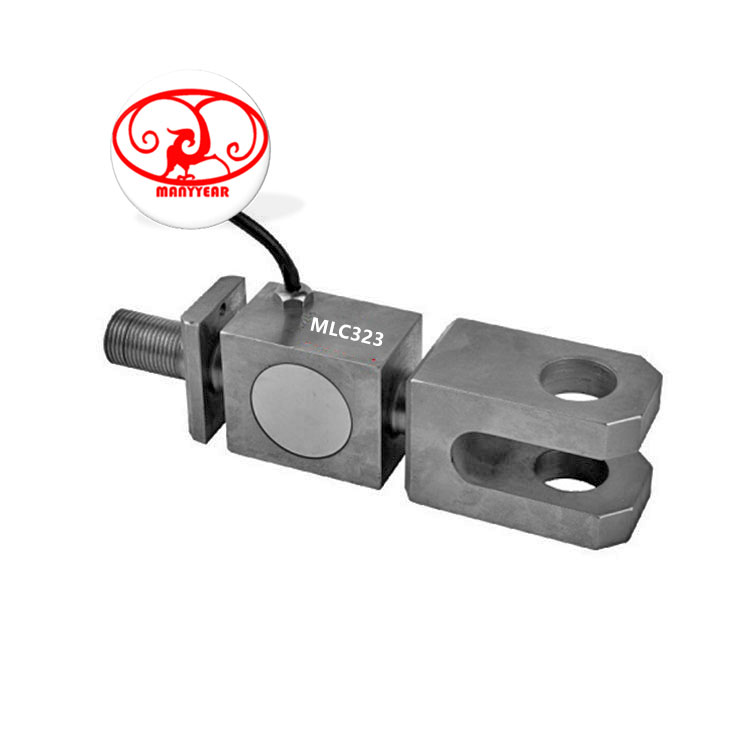

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC323-Crane scale tension load cell 5ton

Model: MLC323 Category: Tension load cell Range: 3t,5t Dimension: 2295850mm Material: alloy steel, stainless steel Application: crane scale, hopper scale, packing scale, overload limiter Characteristic: crane scale weighing sensor, hanging scale weighing sensor

Specification
Comprehensive error:	0.05%FS	Output resistance:	352±5Ω
Rated output:	1.8±0.005mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.03%FS/10MIN	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	380±10Ω	Defend grade:	IP66 & IP68

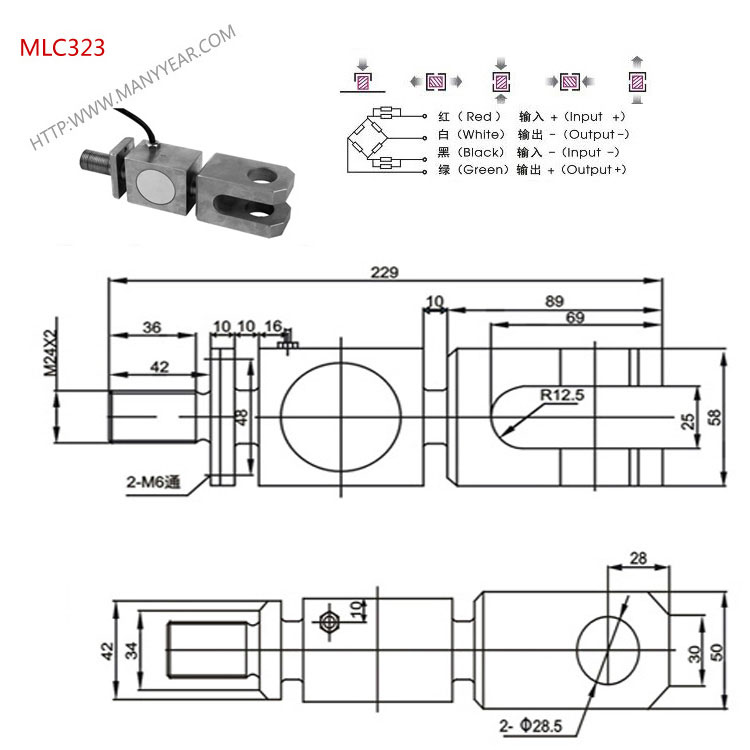

Product Dimension

Force Structure & Assembly Reference
