MLC305-S type safety overload load cell

2021/11/04 Force Load Cell MLC300 Tension Load Cells 3293 0

S type load cell, crane scale load cell, tension load cell, overload load cell

Model: MLC305
Category: Tension load cell
Range: 10klb
Dimension: 238.1*76.2*25.4mm
Material: Alloy steel,stainless steel
Application: crane scale load cell, tension load cell, overload load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

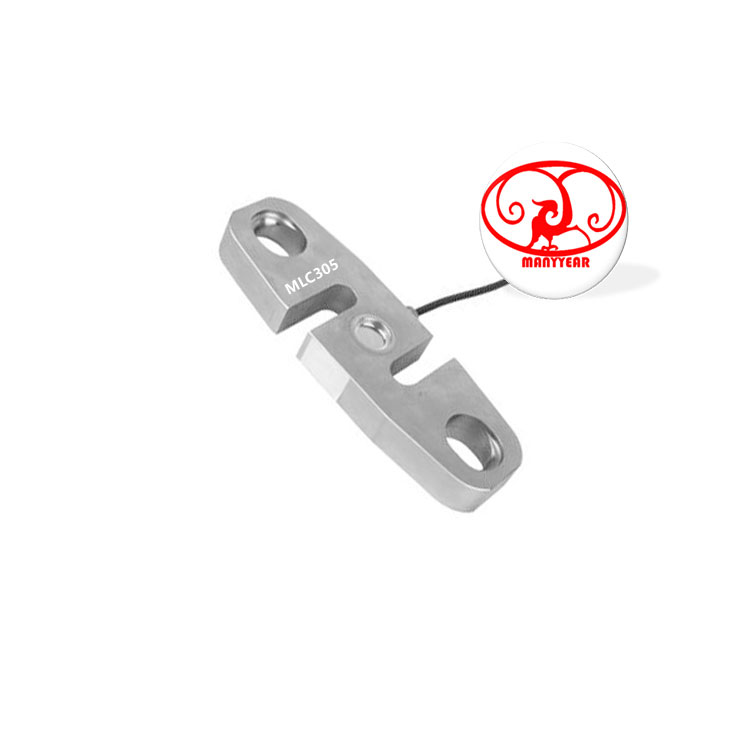

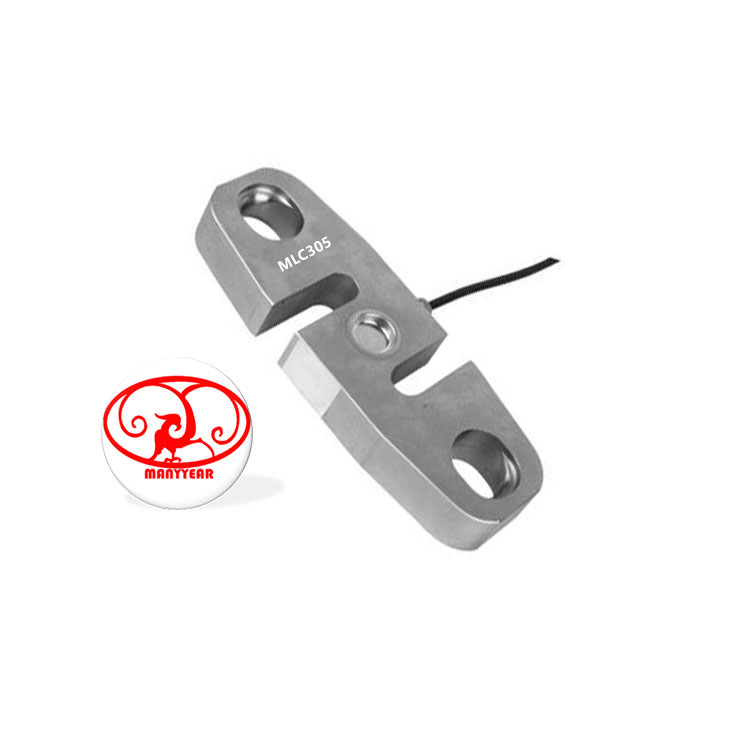

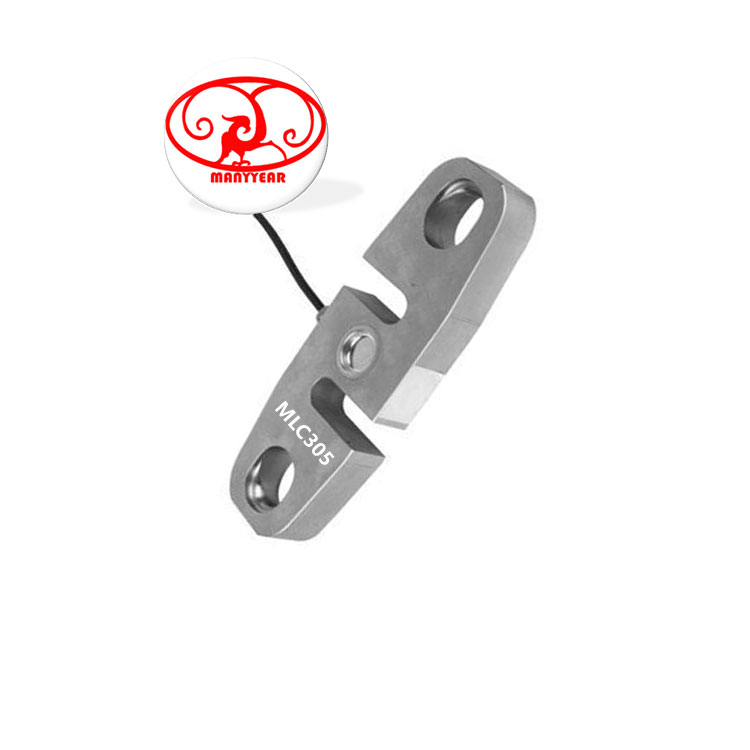

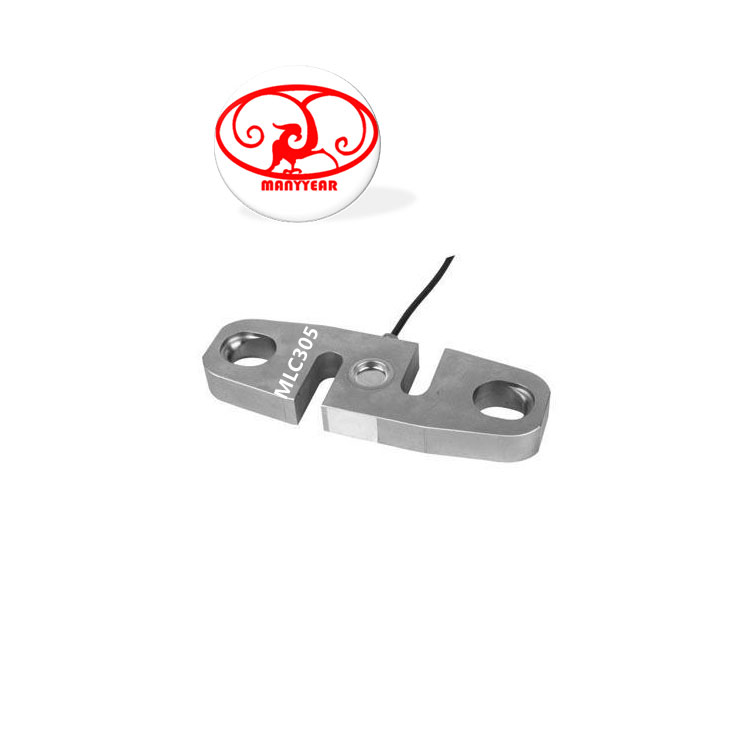

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC305-S type safety overload weight sensor 10KLB

Model: MLC305 Category: tension load cell Range: 10KLB Dimension: 238.176.225.4mm Material: Alloy steel, stainless steel Application: crane scale, tension test Characteristic: crane scale sensor, tension sensor

Specification
Comprehensive error:	0.03%FS	Output resistance:	352±5Ω
Rated output:	3.0±0.005mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.03%FS/10MIN	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	400±10Ω	Defend grade:	IP66 & IP68

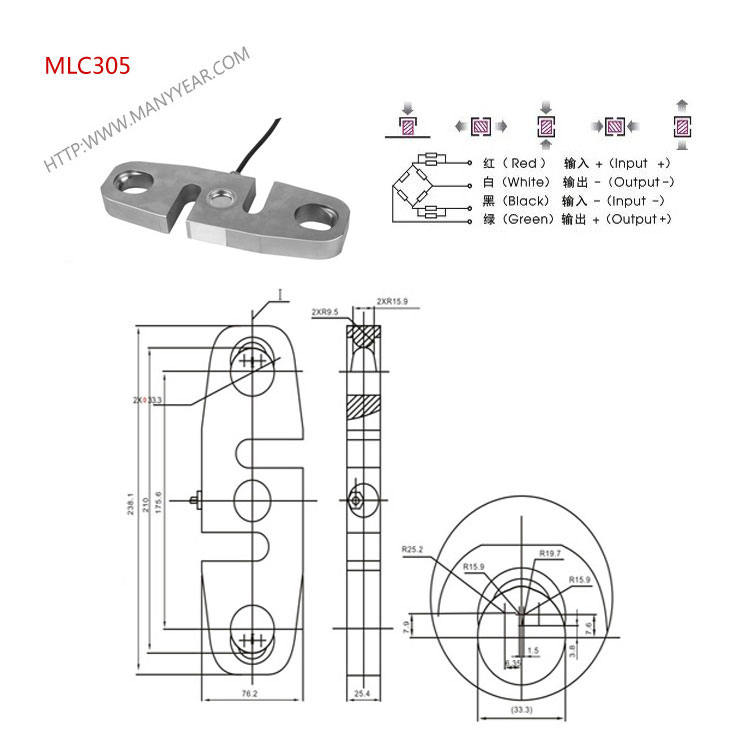

Product Dimension

Force Structure & Assembly Reference
