MLC223 compression and tension force load cell

MLC223 electronic weighbridge batching scale, material tank scale, force measuring machine, spoke type weighing sensor

Model: MLC223
Category: Button weighing sensor
Range: 10t~200t
Size: D175 * 500mm
Materials: alloy steel, stainless steel
Application: Small compression and tensile tests, small crane scales
Features: Micro compression and tension weighing sensors




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

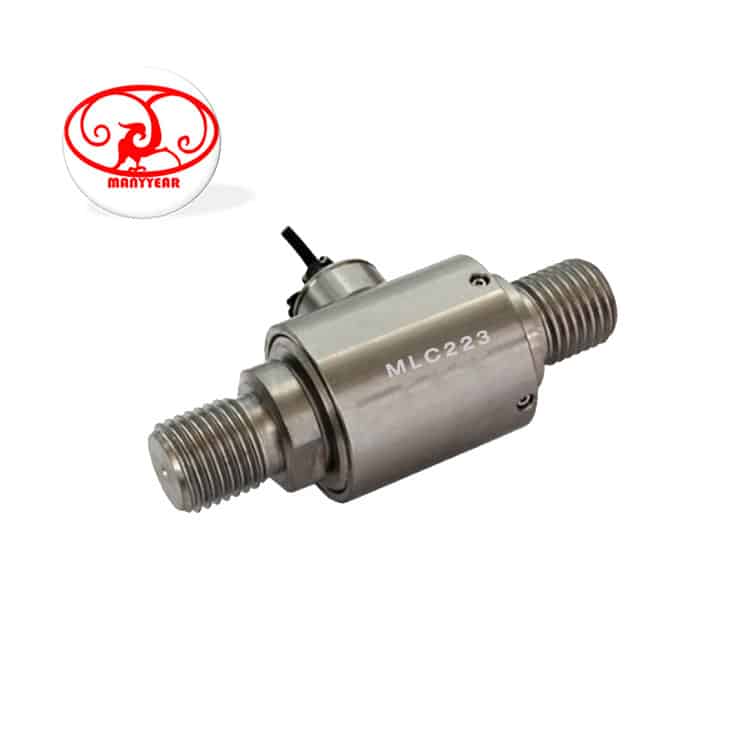

Product Picture Reference

MLC223 compression and tension force load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference, we can provide ODM product.

    MLC223 compression and tension force load cell

MLC223 electronic weighbridge batching scale, material tank scale, force measuring machine, spoke type weighing sensor
Model: MLC223
Category: Button weighing sensor
Range: 10t~200t
Size: D175 * 500mm
Materials: alloy steel, stainless steel
Application: Small compression and tensile tests, small crane scales
Features: Micro compression and tension weighing sensors

Specification
Comprehensive error:0.3%FSOutput resistance:352±3Ω
Rated output:1.0- 2.0±0.01mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.1%FSExcitation voltage:9~12VDC
Hysteresis:0.2%FSCompensated temp:-10~+70℃
Repeatability:0.1%FSUse temperature:-20~+75℃
Creep:0.2%FS/10minTemp effect on zero:0.05%FS/10℃
Zero balance:±1%FSTemp effect on span:0.05%FS/10℃
Input resistance:380±5ΩDefend grade:IP67 & IP68

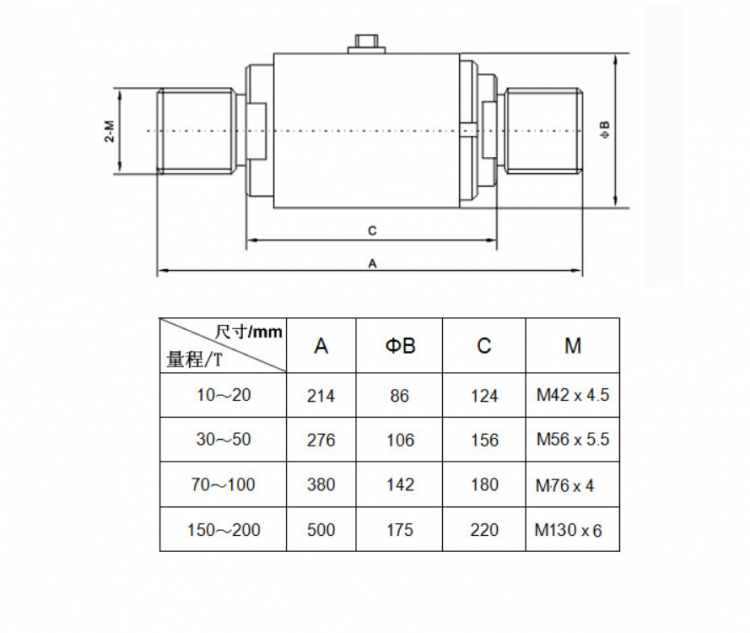

Product Dimension

MLC223 compression and tension force load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC223 compression and tension force load cell-MANYYEAR TECHNOLOGY

Product Application

MLC223 compression and tension force load cell-MANYYEAR TECHNOLOGYMLC223 compression and tension force load cell-MANYYEAR TECHNOLOGYMLC223 compression and tension force load cell-MANYYEAR TECHNOLOGY
