MLC214 round compression force sensor

compression force sensor, button force load cell, round force sensor

Model: MLC214
Category: button load cell
Range: 10t,20t
Dimension: 164*111/190*137mm
Material: alloy steel,stainless steel
Characteristic: compression force sensor, button force load cell, round force sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

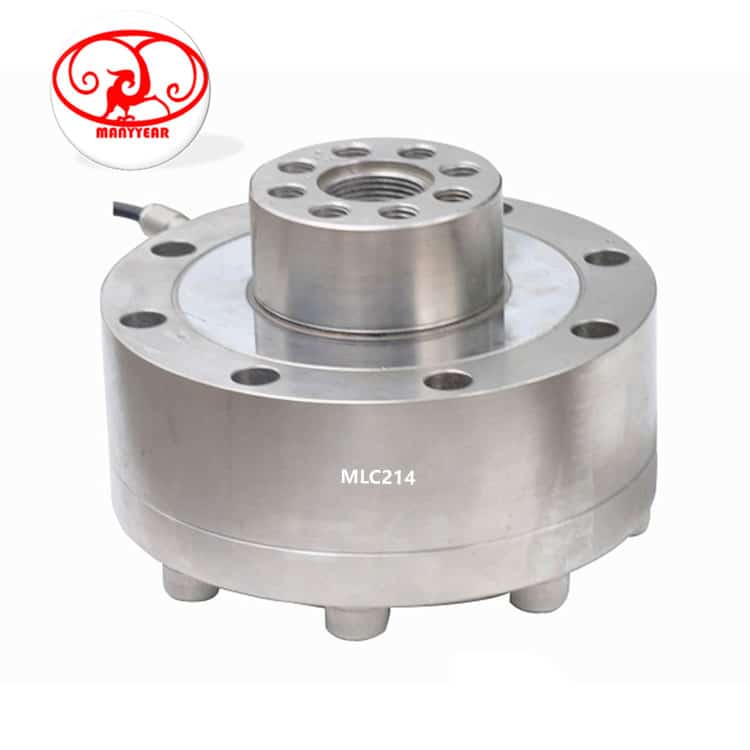

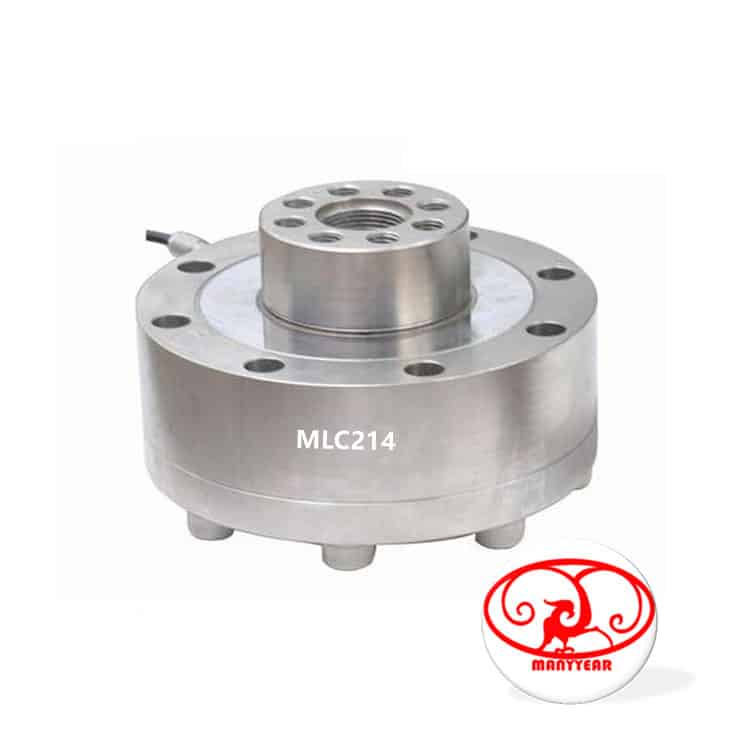

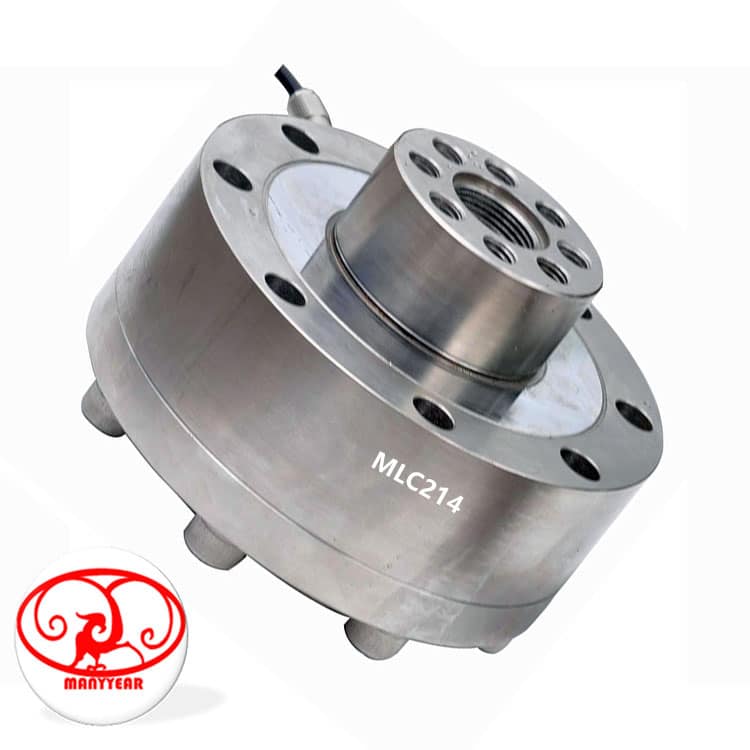

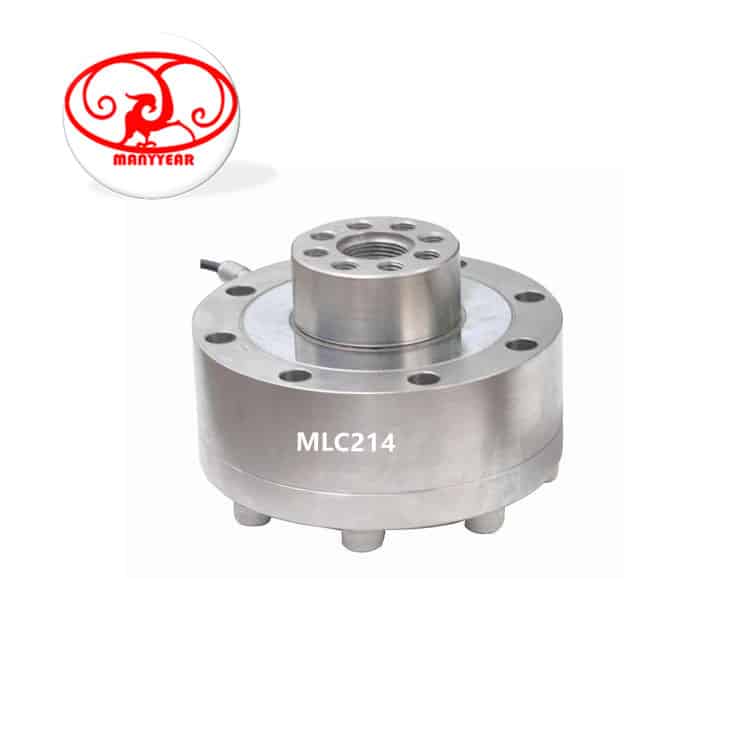

Product Picture Reference

MLC214 round compression force sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

              MLC214 round compression force sensor

Model: MLC214
Category: button load cell
Range: 10t,20t
Dimension: 164*111/190*137mm
Material: alloy steel,stainless steel
Characteristic: compression force sensor, button force load cell, round force sensor

 Other Dimension
Load rangeACDEFGHIJM
10tonD164D118D34D52D74151113430M30*2
20tonD190D136D43D67D96221374440M39*2
  Specification
Comprehensive error:0.1%FSOutput resistance:352±5Ω
Rated output:2.0±0.005mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:9~12VDC
Hysteresis:0.05%FSCompensated temp:-10~+40℃
Repeatability:0.03%FSUse temperature:-20~+55℃
Creep:0.03%FS/10MinTemp effect on zero:0.05%FS/10℃
Zero balance:±1%FSTemp effect on span:0.05%FS/10℃
Input resistance:400±10ΩDefend grade:IP66 & IP68

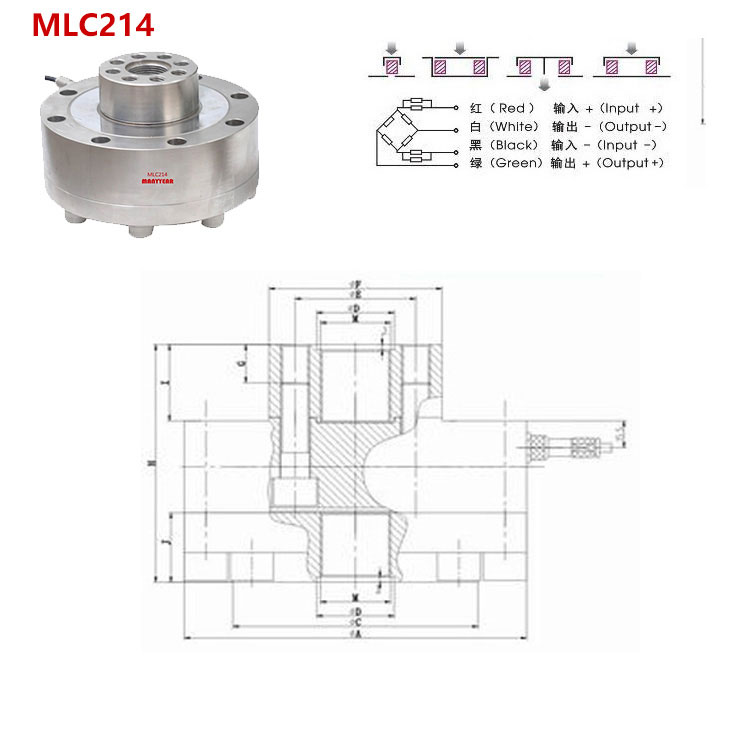

Product Dimension

MLC214 round compression force sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC214 round compression force sensor-MANYYEAR TECHNOLOGY

Product Application

MLC214 round compression force sensor-MANYYEAR TECHNOLOGYMLC214 round compression force sensor-MANYYEAR TECHNOLOGYMLC214 round compression force sensor-MANYYEAR TECHNOLOGY
