MLC162 pin force load cell

2021/11/03 Force Load Cell MLC100 Bridge Load Cell 3831 0

safety limiter weight sensor, overload load cell, pin load cell, pin force load cell

Model: MLC162
Category: Bridge load cell
Range: 2,3,5,10,15,20,30,40,50,100t
Dimensions: ± 58 * 128mm, ± 68 * 128mm
Material: alloy steel, stainless steel
Characteristic: safety limiter load cell, overload load cell, pin load cell, pin force sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

Product Picture Reference

bridge load cell

MLC162 pin force load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC162 pin force load cell

Model: MLC162 Category: Bridge load cell Range: 2,3,5,10,15,20,30,40,50,100t Dimensions: ± 58 * 128mm, ± 68 * 128mm Material: alloy steel, stainless steel Characteristic: safety limiter load cell, overload load cell, pin load cell, pin force sensor

Other Dimension
Load range	D1	D2	A
0.75-2ton	D28	D36	26
2.5, 3ton	D32	D40	30
5ton	D42	D50	36
Specification
Comprehensive error:	0.5%FS	Output resistance:	702±5Ω
Rated output:	1.0±0.005mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.03%FS/10Min	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	750±10Ω	Defend grade:	IP66 & IP68

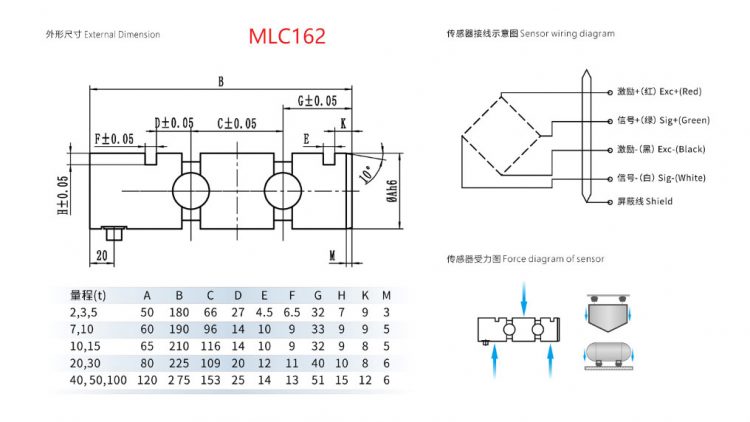

Product Dimension

bridge load cell

Force Structure & Assembly Reference
