MLC116 high temperature ladle scale load cell

2021/11/01 MLC100 Bridge Load Cell Weighing Load Cell 3258 0

high temperature load cell, steel embody scale sensor, ladle scale load cell

Model: MLC116
Category: Bridge Load Cell
Range: 50t, 100t, 150t, 200t
Dimension: 450*120*130mm/500*140*143mm/560*160*158mm/620*180*175mm
Material: alloy steel,stainless steel
Characteristic: high temperature load cell,steel embody scale load cell,ladle scale load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

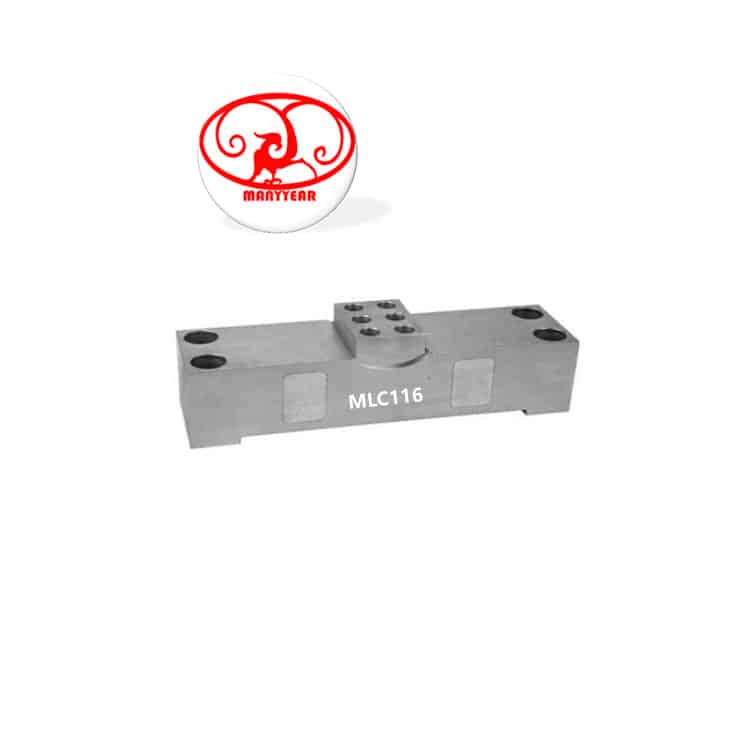

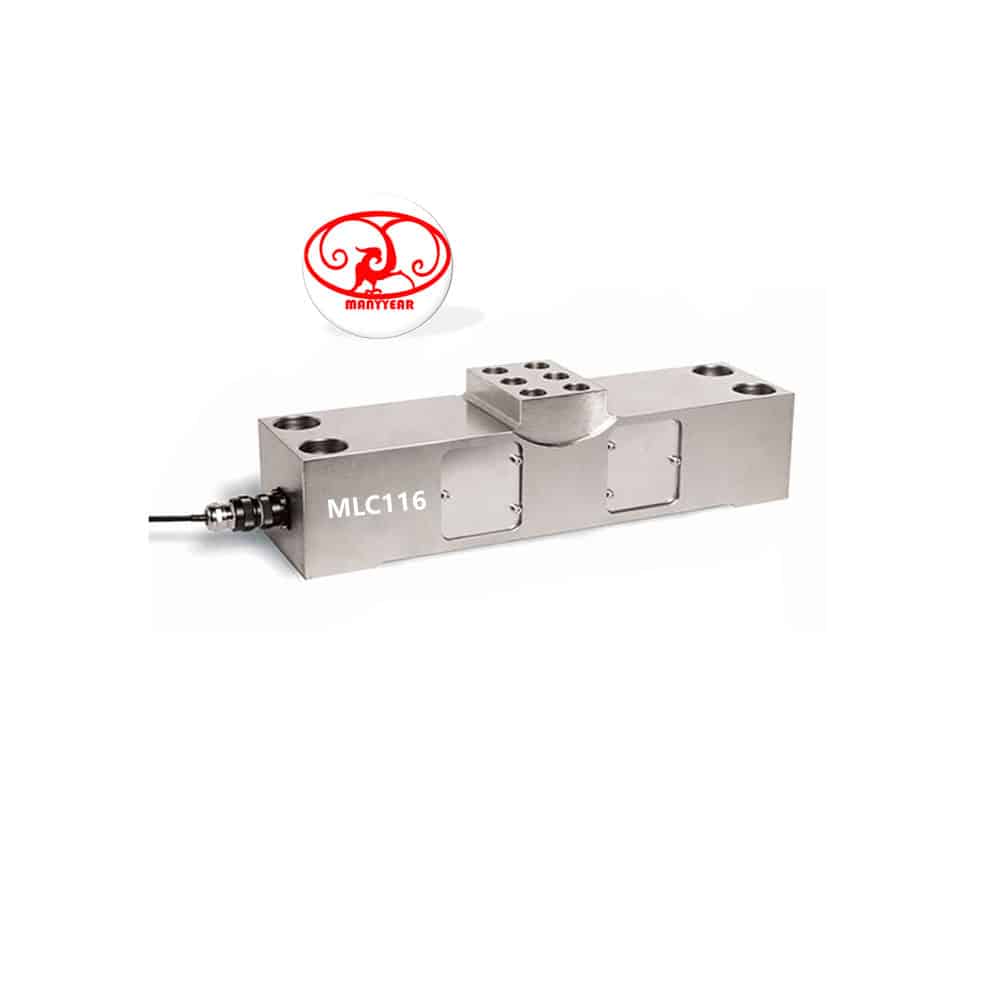

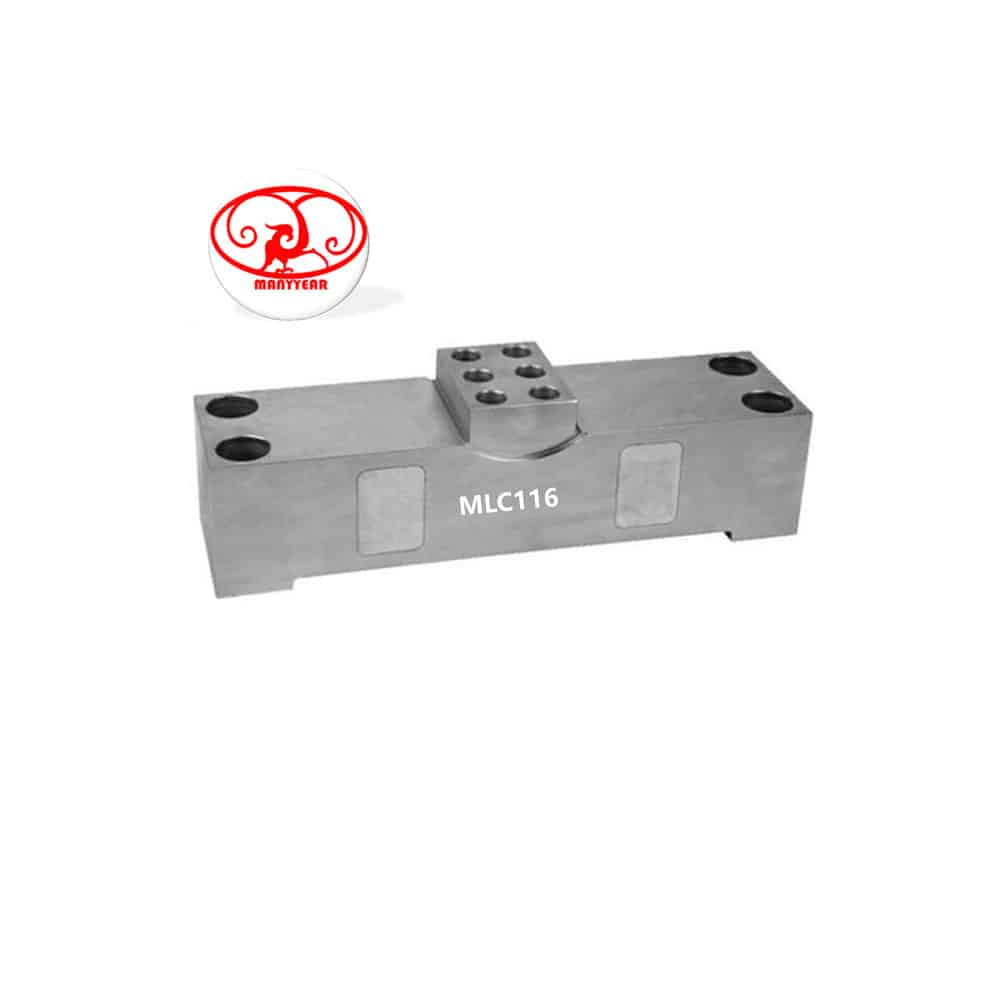

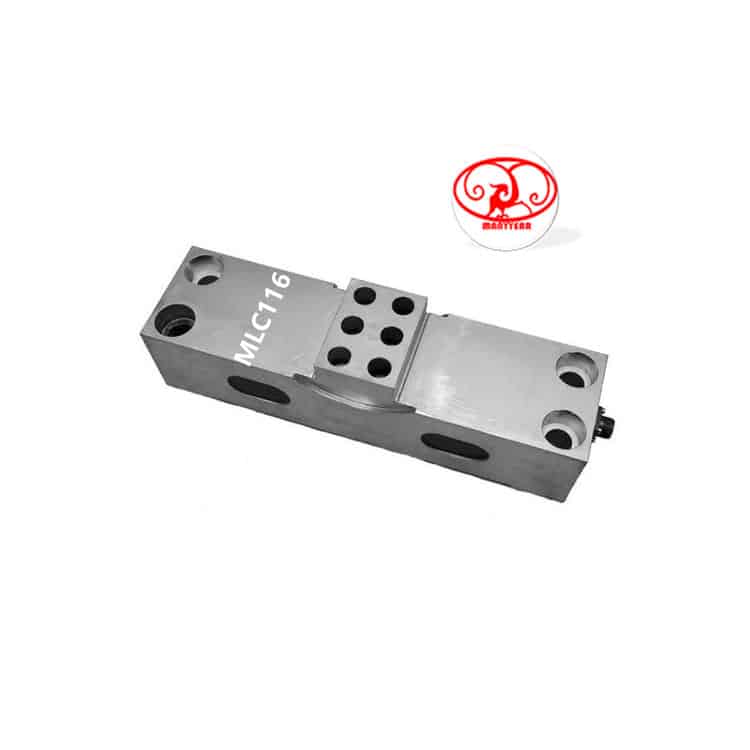

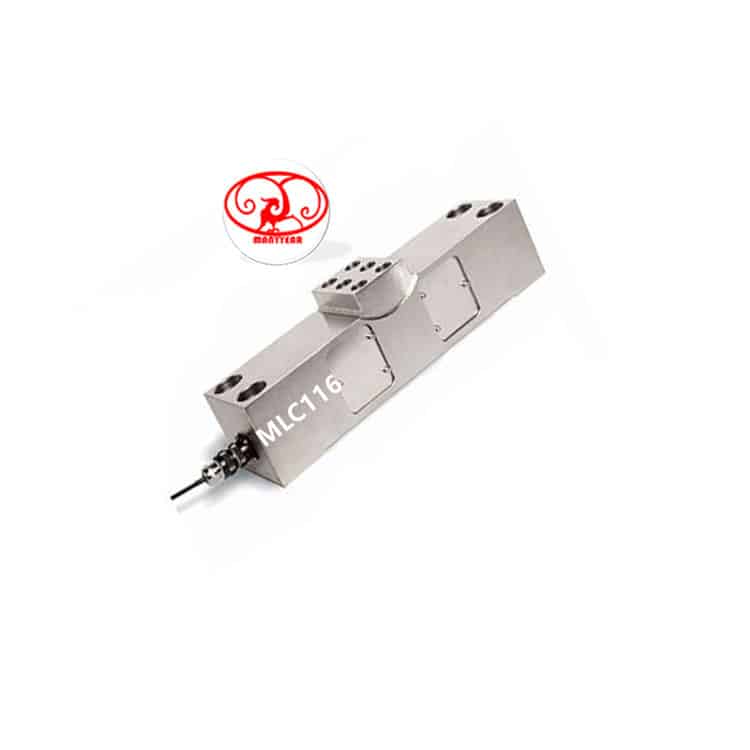

Product Picture Reference

bridge load cell

MLC116 high temperature ladle scale load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC116 high temperature ladle scale load cell

Model: MLC116 Category: Bridge Load Cell Range: 50t, 100t, 150t, 200t Dimension: 450120130mm/500140143mm/560160158mm/620180175mm Material: alloy steel,stainless steel Characteristic: high temperature load cell,steel embody scale load cell,ladle scale load cell

Other Dimension(mm)
Load	A	B	C	D		E	F	G	H	J		K	L	M	N		P	Q	R	S	T
50t	450	120	130	105		D38	398	68	75	40		80	110	D26	M20/30		32	45	340	25.5	57
100t	500	140	143	118		D44	444	80	90	44		90	130	D30	M24/36		38	54	370	28.5	62
150t	560	160	158	133		D48	500	94	102	44		90	150	D33	M24/36		38	66	410	32	69
200t	620	180	175	150		D48	560	114	110	44		90	160	D33	M24/40		40	75	450	32	76
Specification
Comprehensive error:					0.1%FS						Output resistance:					702±5Ω
Rated output:					2±0.005mV/V						Insulation resistance:					≥5000MΩ(100VDC)
Non-linearity:					0.05%FS						Excitation voltage:					9~12VDC
Hysteresis:					0.05%FS						Compensated temp:					-10~+40℃
Repeatability:					0.03%FS						Use temperature:					-20~+70℃ / -20c~250c.
Creep:					0.03%FS/10Min						Temp effect on zero:					0.05%FS/10℃
Zero balance:					±1%FS						Temp effect on span:					0.05%FS/10℃
Input resistance:					750±10Ω						Defend grade:					IP66 & IP68

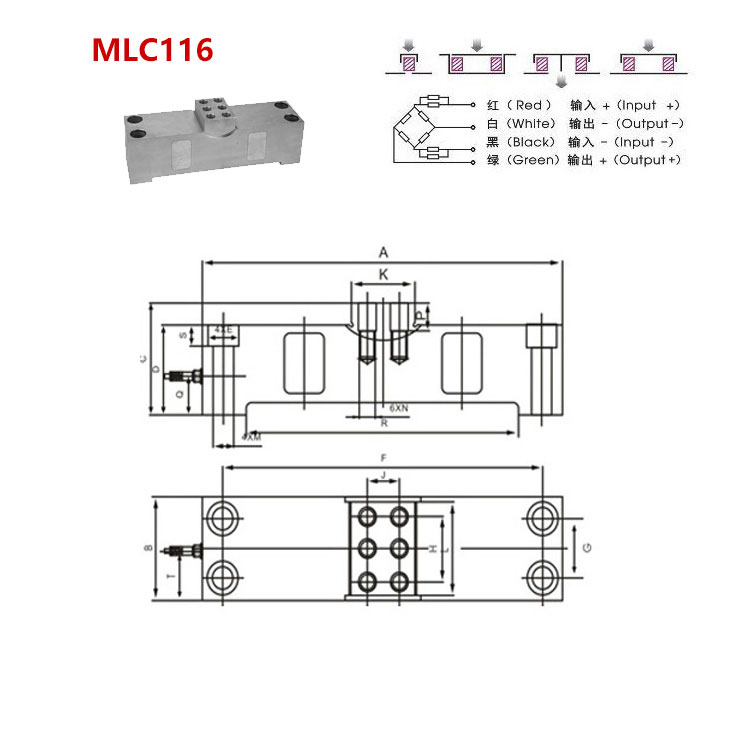

Product Dimension

Force Structure & Assembly Reference
