MLC701T- force measuring switch automatic control micro force sensor

Model: MLC701T
Product Category: Micro Load Cell
Range: 50g, 100g, 500g, 1kg, 2kg
Size: 40*11*1mm
Material: alloy steel
Applications: Micro force measurement, robot force measurement, robot arm force measurement, stress switch, automation equipment, medical life symptom detection

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

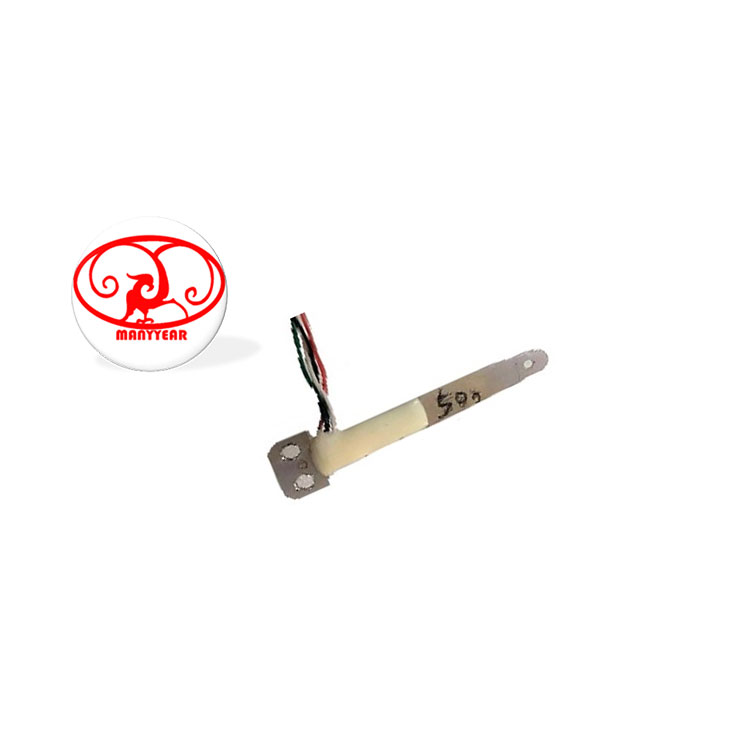

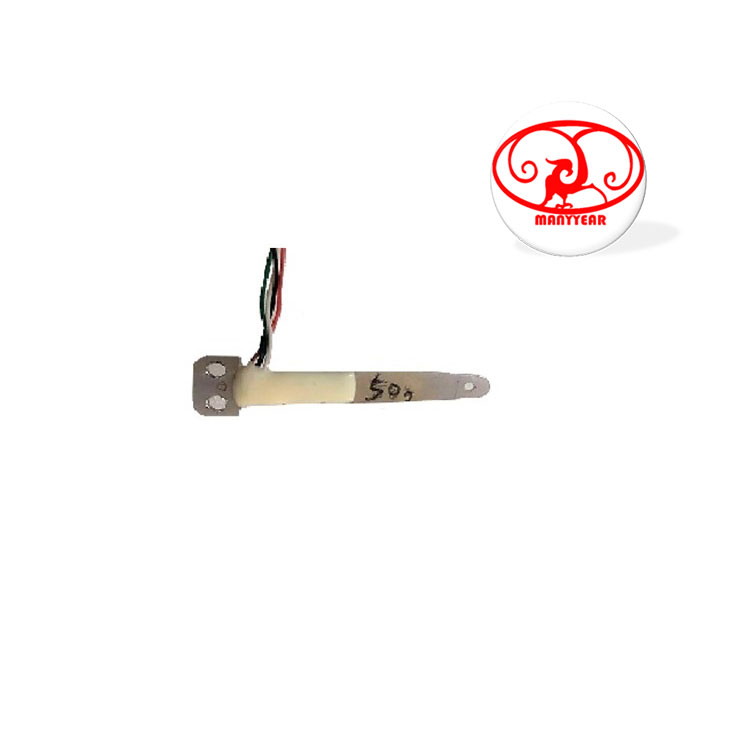

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC701T- force measuring switch automatic control micro load measuring sensor

Model: MLC701T Product Category: Micro Load Cell Range: 50g, 100g, 500g, 1kg, 2kg Size: 40111mm Material: alloy steel Applications: Micro force measurement, robot force measurement, robot arm force measurement, stress switch, automation equipment, medical life symptom detection

Specification
Comprehensive error:	0.3%FS	Output resistance:	1000±10Ω
Rated output:	1.5±0.2mV/V	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.2%FS	Excitation voltage:	3~12VDC
Hysteresis:	0.1%FS	Compensated temp:	-10~+60ºC
Repeatability:	0.2%FS	Use temperature:	-0~+40ºC
Creep:	0.1%FS/3Min	Temp effect on zero:	0.3%FS/10ºC
Zero balance:	1±0.3%FS	Temp effect on span:	0.3%FS/10ºC
Input resistance:	1000±10Ω	Defend grade:	IP66

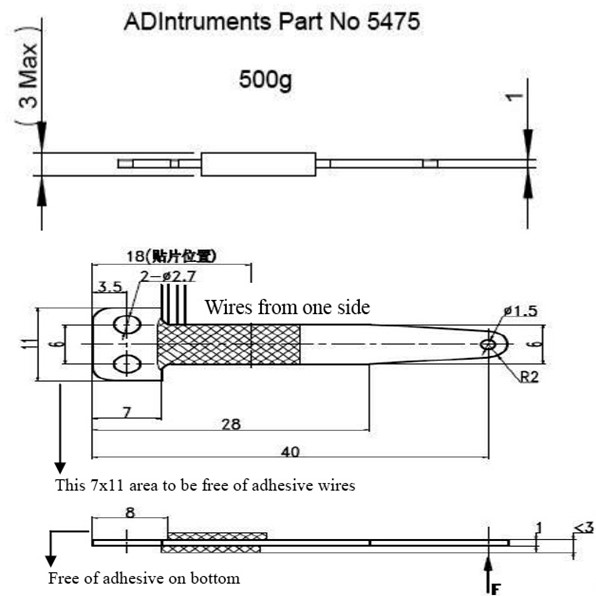

Product Dimension

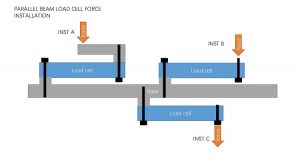

Force Structure & Assembly Reference

Product Application
