| Model: MEP-SD Catalog: pressure controller Input signal: MV,DC,DA,R, J, K... Output signal: 0-10vdc, 0-5vdc, 4-20mA, RS232/485.. Application: Multichannel pressure display instrument, multichannel pressure control instrument, multichannel digital instrument MEP-SD apply to Multichannel pressure display instrument, multichannel pressure control instrument, multichannel digital instrument. support to MV,DC,DA,R, J, K signal input and 0-10vdc, 0-5vdc, 4-20mA, RS232/485 signal output. |

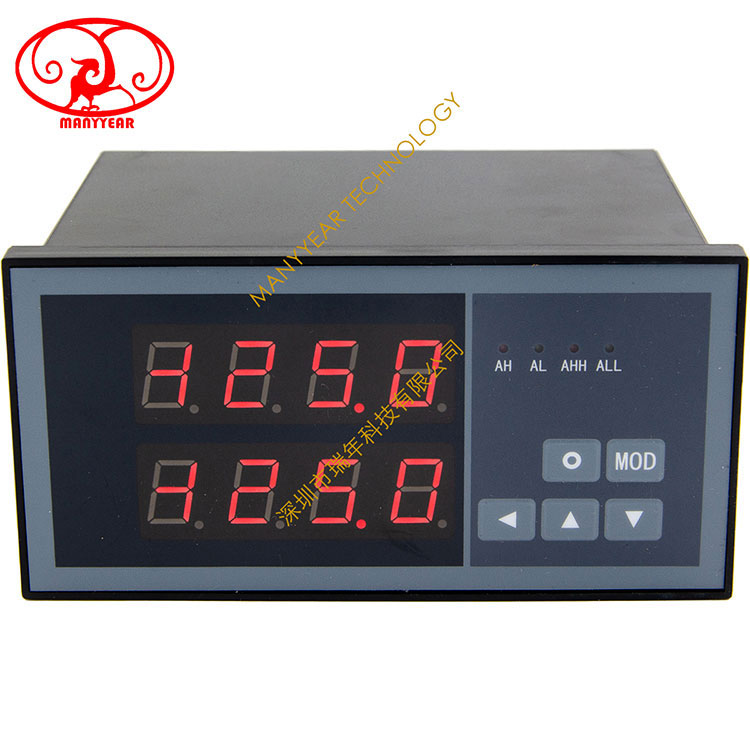

| REF PIC |
| 1：Dimensions （W×H×L） | A：160×80×125 or 80×160×125 |
| B：96×96×112 |
| C：96×48×112 or 48×96×112 |
| D：72×72×112 |
| E：318×104×300 Panel Mounted or Desktop Use |
| 2：Faceplate Types | H：Horizontal Type |
| S：Vertical Type |
| F：Square Type |
| 3：Display Types： | 1：Measured Value（Green） |
| 2：Measured Value（Green）+ Set Value（Red） |
| 3：Measured Value（Green）+ Measured Value Light Bar（Green） |
| Y：LCD A-H Type & B Type only |
| ★The color of LED is selectable according to order requirements. |
| 4：Input Signal | E：Thermocouple or Radiation Thermometer |
| R：RTD or Resistance |
| I： DC Current |
| V：DC Voltage |
| M：mV |
| W：Potentiometer |
| L：Pressure Gauges with Resistance Transmitter |
| 5：The Number of Alarm Outputs | T0：No Alarm |
| T1~T8：1~8 Alarm Outputs |
| C type limit: 3- Alarm Outputs |
| D type limit: 2- Alarm Outputs |
| B type limit: 4- Alarm Outputs |
| A type: when exceeding 4-points , 250mm in length |
| 6：Re-Transmitted Output | A0：No Output |
| A1：DC Current Output（4 mA ~20 mA）,（0 mA ~10 mA）or（0 mA ~20 mA） |
| A2：DC Voltage Output（0 V ~5 V）, （1 V ~5 V） |
| A3：DC Voltage Output（0 V ~10 V） |
| A4：Other Outputs |
| 7：Power Supply Output | B0：No |
| B1：24V DC |
| B2：12V DC |
| B3：Precise Constant Voltage Source |
| B4：Precise Constant Current Source |
| B5：Others |
| 8：Communication Interface | S0：No |
| S1：RS 232 |
| S2：RS 485 |
| S3：RS 422 |
| S4：BCD code（A, B type only） |
| 9：Power Supply | V0：220V AC |
| V1：24V DC |
| V2：12V DC |
| V3：Others |
| 10：Print Function：P(Print)，N/A (without P) | （A, B type only） |
| 11：Recording Unit：R(Recording Unit)，N/A (without R) | （A, B type only） |
| 12：N(Nonstandard Functions): | Some parts of the instrument have been modified according to order requirements. |
